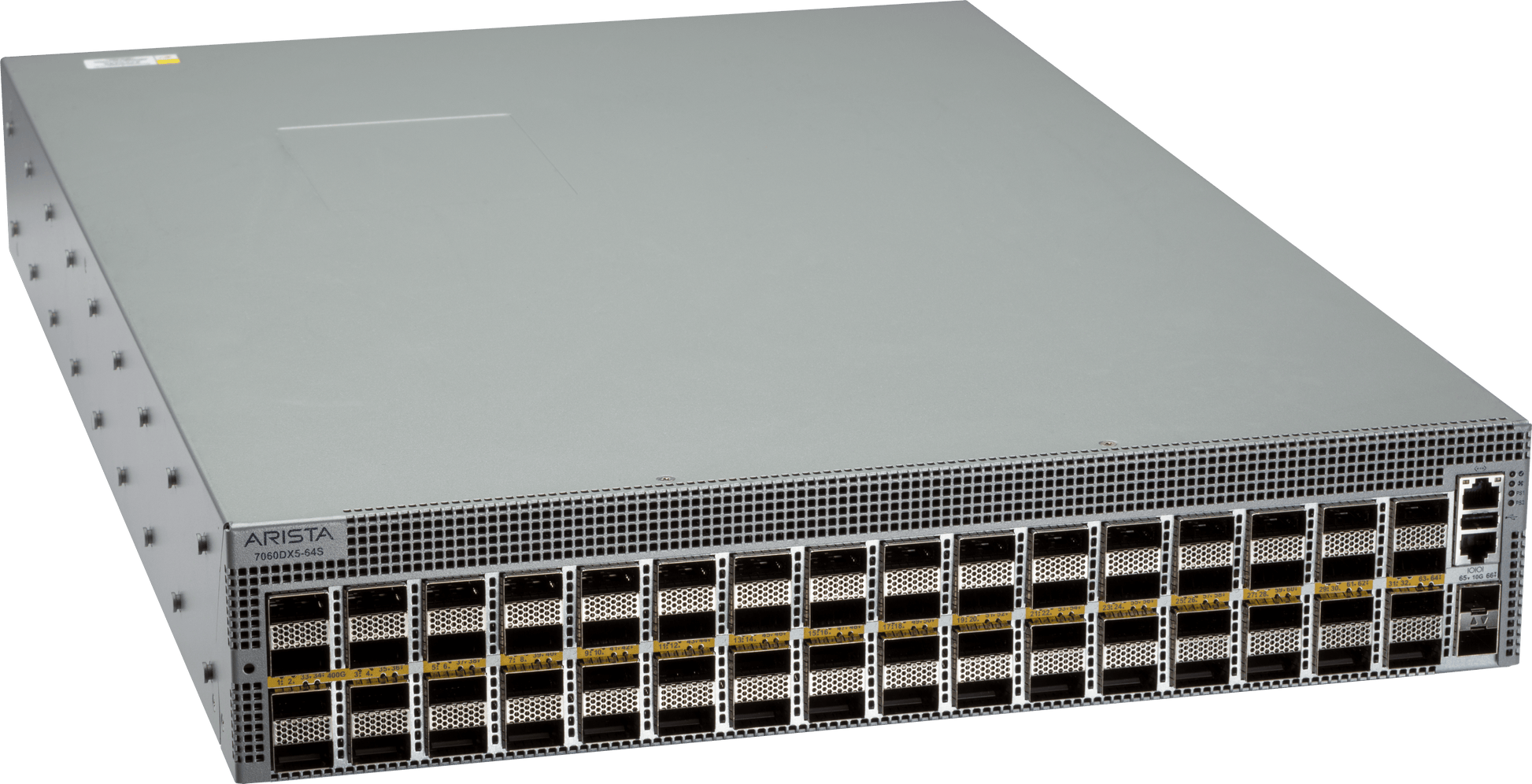

Arista DCS-7060DX5-64S-F | 7060X5 64-Port 400G Switch, Front-to-Rear, 2x AC PSU
SKU:DCS-7060DX5-64S-F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7060X5 is a fixed-configuration 2RU data centre switch built for leaf or fixed-configuration spine roles in large-scale, multi-tier networks. It suits cloud and AI/ML scale-out designs and organisations migrating their fabric to 400G.
This SKU provides 64 x 400G QSFP-DD ports plus 2 x SFP+ ports, with 25.6 Tbps of throughput (51.2 Tbps full duplex), 10.6 Bpps of packet forwarding, 825 ns latency and 114 MB of packet buffer. Ports can be broken out to 128 x 200G, 256 x 100G, 256 x 50G, 256 x 25G or 256 x 10G. It is the front-to-rear airflow model with 2 hot-swap AC power supplies (1+1 redundant) and 4 N+1 fans. Typical and maximum power draw is 489 W and 1716 W, excluding transceivers.
The switch runs Arista EOS (minimum 4.29.1) and accepts QSFP-DD 400G optics and cables, along with 10G to 800G pluggable optics per Arista's transceiver matrix. It is managed with CloudVision.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Multi-speed flexibility from 100G to 800G with a wide choice of optics and cables
- 128-way ECMP and 64-way MLAG for scalable multi-tier designs
- Enhanced ECMP hashing and load balancing, plus Advanced Multipathing for congestion management
- Hitless speed changes from 400G to 100G
- VXLAN support and VM Tracer integration for virtualised data centres
- CloudVision management, with Linux tools, Bash, Python and C++ extensibility
- Hot-swap redundant power supplies and fans
- Industry-standard CLI, SNMP v1/v2/v3, SSHv2, syslog and AAA
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 64 x 400G QSFP-DD, 2 x SFP+
- Max 200GbE ports: 128 (2x200G)
- Max 100GbE ports: 256 (4x100G)
- Max 25GbE ports: 256
- Max 10GbE ports: 256 + 2
- Throughput: 25.6 Tbps (51.2 Tbps full duplex)
- Packet forwarding: 10.6 Bpps
- Latency: 825 ns
- Packet buffer: 114 MB
- CPU: Multi-core x86
- System memory: 64 GB
- Flash storage: 120 GB
- Management ports: 1 x 10/100/1000, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x hot-swap AC (1+1 redundant), 2400 W, 200-240V AC input
- Fans: 4 hot-swappable (N+1 redundant)
- Airflow: Front to rear
- Power draw (typical / max): 489 W / 1716 W, excluding transceivers
- MAC addresses: 128K
- IPv4 LPM routes: 800K
- IPv6 LPM routes: 500K
- ECMP: 128-way, 4K groups, 16K members
- Dimensions (W x H x D): 43.99 x 8.79 x 63.96 cm
- Weight: 21.95 kg
- Operating temperature: 0 to 40 C
- Minimum EOS: 4.29.1
FAQs
Q: Which software and licences does this switch use?
A: It runs Arista EOS, minimum version 4.29.1. Optional LIC-FIX-4 feature licences are available separately: LIC-FIX-4-E for Enhanced L3, LIC-FIX-4-Z for Monitoring and Automation, and LIC-FIX-4-FLX-L for FLX-Lite with full routing up to 256K routes, EVPN, VXLAN and base MPLS.
Q: What power does it require?
A: It uses 2 hot-swap AC power supplies in a 1+1 redundant arrangement. Each PWR-2411-AC-RED supply is rated at 2400 W with a 200-240V AC input and an IEC 60320 C20 connector.
Q: What optics and cables does it work with?
A: The 64 QSFP-DD ports accept 400G optics and cables, and the switch supports 10G to 800G pluggable optics per Arista's transceiver matrix. Rear-to-front airflow is only supported with 400G DACs and AOCs.
Q: How does this SKU differ from other 7060X5 variants?
A: DCS-7060DX5-64S-F is the front-to-rear airflow model with 2 AC power supplies. Variants with the opposite airflow direction or DC power supplies are separate SKUs.
Q: Can the 400G ports be split into lower speeds?
A: Yes. The ports support breakout to 2x200G, 4x100G, 50G, 25G and 10G, giving up to 256 ports at 100G, 50G, 25G or 10G. Speed changes from 400G to 100G are hitless.
