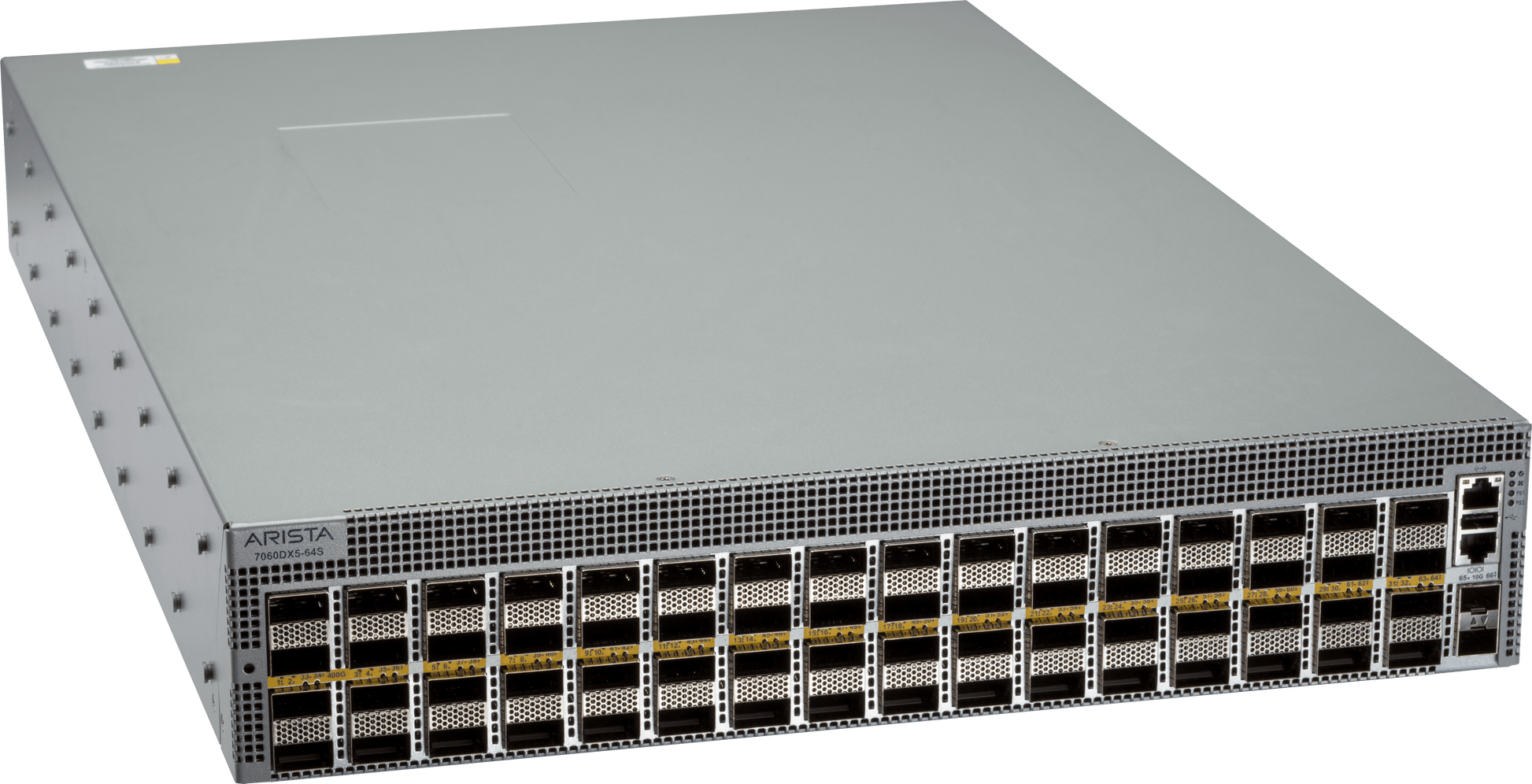

Arista DCS-7060DX5-64-F | 7060X5 32x800G QSFP-DD Switch, 2x1500W AC, Front-to-Rear
SKU:DCS-7060DX5-64-F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7060X5 is a 1RU fixed data centre switch built for spine and leaf fabrics in hyperscale cloud, AI/ML clusters and I/O-intensive environments. Its high radix of 32 x 800G QSFP-DD ports in a single rack unit suits compute and storage clusters that need high-bandwidth, low-latency networking, and it runs Arista EOS.
The DCS-7060DX5-64-F provides 32 x 800G QSFP-DD ports plus 2 x SFP+ ports, with breakout to as many as 64 x 400GbE, 128 x 200GbE or 256 x 100GbE, 50GbE or 25GbE. Throughput is 25.6 Tbps (51.2 Tbps full duplex) at 10.6 Bpps, with latency from 825 ns and a 114 MB shared packet buffer. This SKU uses front-to-rear airflow with two 1500W AC hot-swap power supplies in a 1+1 redundant configuration and three N+1 redundant fans.
The base EOS feature set is bundled. Optional LIC-FIX-4 feature licences add enhanced Layer 3, monitoring and automation, or FLX-Lite routing and EVPN/VXLAN capability. The switch supports 10G to 800G pluggable optics and cables and requires EOS 4.29.1 or later.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Wire-speed Layer 2 and Layer 3 forwarding with latency from 825 ns
- Under 14W typical per 800G port with over 93% efficient power supplies
- 1+1 redundant hot-swappable power and N+1 redundant hot-swappable fans
- 128-way ECMP, Dynamic Load Balancing and Cluster Load Balancing
- Advanced congestion management for NVMe and AI workloads with flow-aware traffic scheduling
- EVPN/VXLAN routing and bridging, MLAG, BGP, OSPF, IS-IS, VRF and PTP (IEEE 1588)
- CloudVision, Zero Touch Provisioning, LANZ microburst detection, sFlow, DirectFlow and eAPI
- Arista EOS with a Linux-based state-sharing architecture and in-service software updates
- Tool-less rails for simple rack installation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 32 x 800G QSFP-DD, 2 x SFP+
- Breakout options: up to 64 x 400GbE, 128 x 200GbE, 256 x 100GbE/50GbE/25GbE or 256+2 x 10GbE
- Throughput: 25.6 Tbps (51.2 Tbps full duplex)
- Forwarding rate: 10.6 Bpps
- Latency: 825 ns
- Packet buffer: 114 MB
- CPU: Multi-core x86
- System memory: 64 GB
- Flash storage: 120 GB
- Management ports: 1 x 10/100/1000, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x 1500W AC hot-swap (1+1 redundant), PWR-1511-AC-RED
- PSU input: 200-240V AC, 50/60 Hz, IEC 60320 C14, 93% Platinum efficiency
- Fans: 3 x hot-swap (N+1 redundant), FAN-7011H-F
- Airflow: Front to rear
- Power draw: 548 W typical, 1247 W maximum (excludes transceivers)
- MAC addresses: 128K
- Routes: 800K IPv4 LPM, 500K IPv6 LPM
- ECMP: 128-way, 4K groups, 16K members
- ACLs: 2304 (512 egress)
- Dimensions (WxHxD): 43.99 x 4.37 x 56.56 cm (1RU)
- Weight: 14.6 kg
- Operating temperature: 0 to 40 C
- Minimum EOS: 4.29.1
FAQs
Q: Does this switch need a licence to run?
A: No. The base Arista EOS feature set is bundled. Optional perpetual LIC-FIX-4 feature licences, such as LIC-FIX-4-E for enhanced Layer 3 or LIC-FIX-4-FLX-L for FLX-Lite routing and EVPN/VXLAN, are ordered separately. CloudVision is a separate subscription.
Q: What power supplies does the DCS-7060DX5-64-F use?
A: It uses two PWR-1511-AC-RED 1500W AC supplies in a 1+1 redundant, hot-swappable configuration. Input is 200-240V AC through an IEC C14 inlet. Typical draw is 548 W and maximum is 1247 W, excluding transceivers.
Q: What optics can I use in the QSFP-DD ports?
A: The ports support a wide range of 10G to 800G pluggable optics and cables. Each module has a minimum EOS requirement listed by Arista, and this switch needs EOS 4.29.1 or later.
Q: How does this SKU differ from other 7060X5 variants?
A: The DCS-7060DX5-64-F is the 32 x 800G QSFP-DD model with front-to-rear airflow and two 1500W AC power supplies. Variants differ by airflow direction and power supply type.
Q: Can the 800G ports break out to lower speeds?
A: Yes. The 800G ports can break out to 400GbE, 200GbE, 100GbE, 50GbE, 25GbE and 10GbE, giving up to 64 x 400GbE or up to 256 x 100GbE/50GbE/25GbE.
