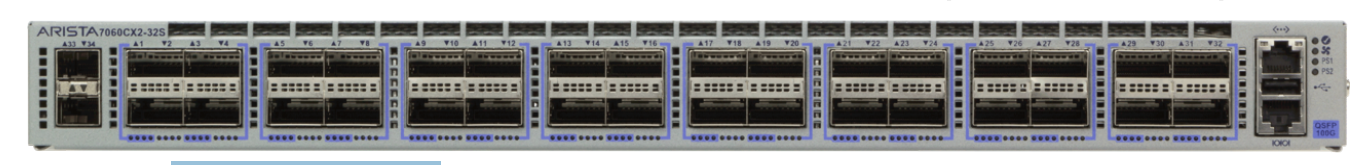

Arista DCS-7060CX2-32S-R | 7060X2 32-Port 100G QSFP Switch, Rear-to-Front Airflow
SKU:DCS-7060CX2-32S-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7060X2 is a 1RU data centre switch built for top-of-rack and spine roles in cloud, big data and virtualised environments. It suits leaf-spine two-tier designs that are migrating from 10GbE and 40GbE to 25GbE, 50GbE and 100GbE, and it runs Arista EOS.
This model provides 32 QSFP100 ports plus 2 SFP+ ports, with 6.4 Tbps of throughput, a 3.3 Bpps forwarding rate and 450 ns latency. Each QSFP port supports 100GbE, 40GbE, 4x25GbE, 4x10GbE or 2x50GbE, for up to 128 x 25GbE or 130 x 10GbE ports. It has a 22 MB dynamic packet buffer, 8 GB of system memory and 4 GB of flash. This SKU is the rear-to-front airflow version with two 500W AC hot-swap power supplies in a 1+1 arrangement, four N+1 hot-swap fans and two C13-C14 power cords.
The QSFP100 ports accept 100GBASE and 40GBASE optics and cables, along with 25GBASE-CR and 4x10G breakout cables. The SFP+ ports accept 10GBASE and 1GbE optics. Optional Group 2 EOS feature licences cover enhanced Layer 3 routing, VXLAN and VM Tracer, and monitoring and automation features.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- IEEE 25GbE support with mixed 10G and 25G server connectivity
- Each QSFP port runs 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE
- Under 7W typical power per port, with power supplies over 93% efficient
- 1+1 hot-swappable power supplies and N+1 hot-swappable fans
- VXLAN routing, bridging and gateway, plus VM Tracer
- 128-way ECMP and 64-way MLAG for resilient leaf-spine fabrics
- LANZ microburst detection, DANZ advanced mirroring and sFlow
- CloudVision, Zero Touch Provisioning, eAPI, OpenFlow and DirectFlow
- Live software patching, Stateful Fault Repair and Smart System Upgrade
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 32 x QSFP100, 2 x SFP+
- Max 100GbE ports: 32
- Max 40GbE ports: 32
- Max 25GbE ports: 128 (4x25G breakout)
- Max 10GbE ports: 130 (32 x 4x10G plus 2 x SFP+)
- Throughput: 6.4 Tbps
- Forwarding rate: 3.3 Bpps
- Latency: 450 ns
- Packet buffer: 22 MB dynamic allocation
- System memory: 8 GB
- Flash storage: 4 GB
- CPU: Multi-core x86
- Management ports: 1 x 100/1000, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x 500W AC hot-swap (1+1 redundant), 100-240 VAC, 50/60Hz, IEC C13
- Fans: 4 x hot-swap (N+1 redundant), FAN-7000
- Airflow: Rear-to-front
- Power draw: 187W typical, 333W maximum
- Dimensions (WxHxD): 48.3 x 4.4 x 40.64 cm (1RU)
- Weight: 9.5 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
FAQs
Q: Does this switch need a software licence?
A: It runs Arista EOS and is a Group 2 fixed switch. Optional EOS feature licences are available: LIC-FIX-2-E for enhanced Layer 3, LIC-FIX-2-V for VXLAN and VM Tracer, LIC-FIX-2-V2 for EOS extensions and security, LIC-FIX-2-Z for monitoring and automation, and LIC-FIX-2-FLX-L for FLX-Lite.
Q: What power supplies does it use?
A: It uses two 500W AC hot-swap power supplies in a 1+1 redundant arrangement, rated for 100-240 VAC at 50/60Hz with an IEC C13 inlet. Typical draw is 187W and maximum draw is 333W.
Q: What airflow direction does this SKU have?
A: This is the rear-to-front airflow version, supplied with four N+1 fans. Replacement parts for this airflow direction are FAN-7000-R for the fans and PWR-500AC-R for the AC power supplies.
Q: What optics and cables fit the ports?
A: The QSFP100 ports take 100GBASE and 40GBASE optics and cables, including SR4, LR4, CWDM4, AOC and CR4 types. They also take 25GBASE-CR and 4x10G breakout cables. The SFP+ ports take 10GBASE and 1GbE SX, LX and TX optics.
Q: Can the 100G ports be split into lower speeds?
A: Yes. Each QSFP port supports breakout to 4x25GbE, 4x10GbE or 2x50GbE, giving up to 128 x 25GbE or 130 x 10GbE ports on the switch.
