Arista

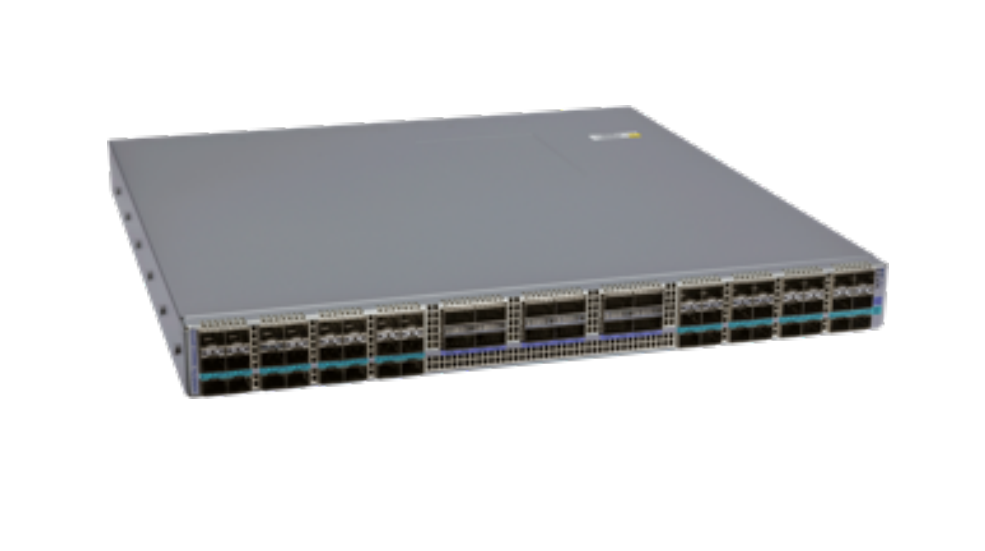

Arista DCS-7050TX3-48C8-R | 7050X3 48-Port 10GBASE-T Switch, 8x 100G, Rear-to-Front

SKU:DCS-7050TX3-48C8-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X3 is a 1RU data centre leaf switch built for 10GBASE-T server access with 100G uplinks. It runs Arista EOS and suits enterprise, carrier and data centre networks, including big data, cloud and virtualised designs.

This -R SKU has 48 multi-gigabit 1/2.5/5/10GBASE-T RJ45 ports and 8 QSFP100 ports for 100GbE or 40GbE uplinks. It delivers 1.28 Tbps (2.56 Tbps bi-directional) of throughput, 1 Bpps forwarding and 3 usec latency on the 10GBASE-T ports, backed by a 32 MB dynamic shared packet buffer. Airflow is rear-to-front and it uses two hot-swappable 500W AC power supplies in a 1+1 redundant arrangement, with typical draw of 212W and a maximum of 346W excluding transceivers. It uses the LIC-FIX-2 EOS feature licence and requires EOS 4.24.0 or later.

The QSFP100 ports accept 100G optics and cables such as 100GBASE-SR4, LR4, CWDM4, PSM4, AOC and CR4, as well as 40G optics and cables. Breakout options include 4x10G via QSFP+ to 4x SFP+ cables and 25G via QSFP to SFP25 cables. The RJ45 ports support 10GBASE-T up to 30 m over Cat6a.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Unified Forwarding Table supporting 288K MAC entries and 360K IPv4 routes with ALPM
- 32 MB fully shared buffer with dynamic allocation to absorb traffic bursts
- VXLAN, VM Tracer, OpenFlow, DirectFlow and eAPI support
- MLAG for active/active Layer 2 multi-pathing
- 128-way ECMP routing
- Live software patching and Stateful Fault Repair self-healing software
- 1+1 redundant hot-swappable power supplies and fans, with tool-less rails for installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48x 1/2.5/5/10GBASE-T RJ45, 8x QSFP100
- Maximum 100GbE ports: 8
- Maximum 50GbE ports: 16
- Maximum 40GbE ports: 8
- Maximum 25GbE ports: 16
- Maximum 10GbE ports: 64
- Maximum 1GbE ports: 48
- Throughput: 1.28 Tbps (2.56 Tbps bi-directional)
- Packet forwarding rate: 1 Bpps
- Latency: 3 usec (10GBASE-T ports)
- Packet buffer: 32 MB dynamic shared
- CPU: Quad-core x86
- System memory: 8 GB
- Flash storage: 8 GB
- Management ports: 1
- Serial port: 1x RS-232 (RJ-45)
- USB ports: 1
- Power supplies: 2x hot-swap AC, 500W each (1+1 redundant)
- Fans: 2x hot-swappable (1+1 redundant), fan tray FAN-7011M-F/R
- Airflow: Rear-to-front
- Typical/maximum power: 212W / 346W
- Form factor: 1RU
- Dimensions (W x H x D): 44 x 4.4 x 46.8 cm
- Weight: 9.36 kg
- Operating temperature: 0 to 40 C
- EOS feature licence: LIC-FIX-2, minimum EOS 4.24.0

FAQs

Q: What licence does this switch use?
A: It runs Arista EOS and uses the LIC-FIX-2 EOS feature licence. The minimum supported EOS release is 4.24.0.

Q: What power supplies does it use?
A: It has two hot-swap 500W AC power supplies in a 1+1 redundant arrangement, rated for 100-240V AC at 50/60Hz with IEC 60320 C14 inlets. Typical draw is 212W and maximum 346W, excluding transceivers.

Q: What can I connect to the QSFP100 ports?
A: They accept 100G optics and cables such as 100GBASE-SR4, LR4, CWDM4, PSM4, AOC and CR4, as well as 40G optics and cables. Breakout is supported as 4x10G via QSFP+ to 4x SFP+ cables and 25G via QSFP to SFP25 cables.

Q: What speeds do the RJ45 ports support?
A: The 48 RJ45 ports run at 1G, 2.5G, 5G and 10G. 10GBASE-T operation reaches up to 30 m over Cat6a cabling.

Q: What does the -R suffix mean?
A: The -R SKU has rear-to-front airflow and includes two AC power supplies, which distinguishes it from front-to-rear airflow versions of the 7050X3 family.
