Arista

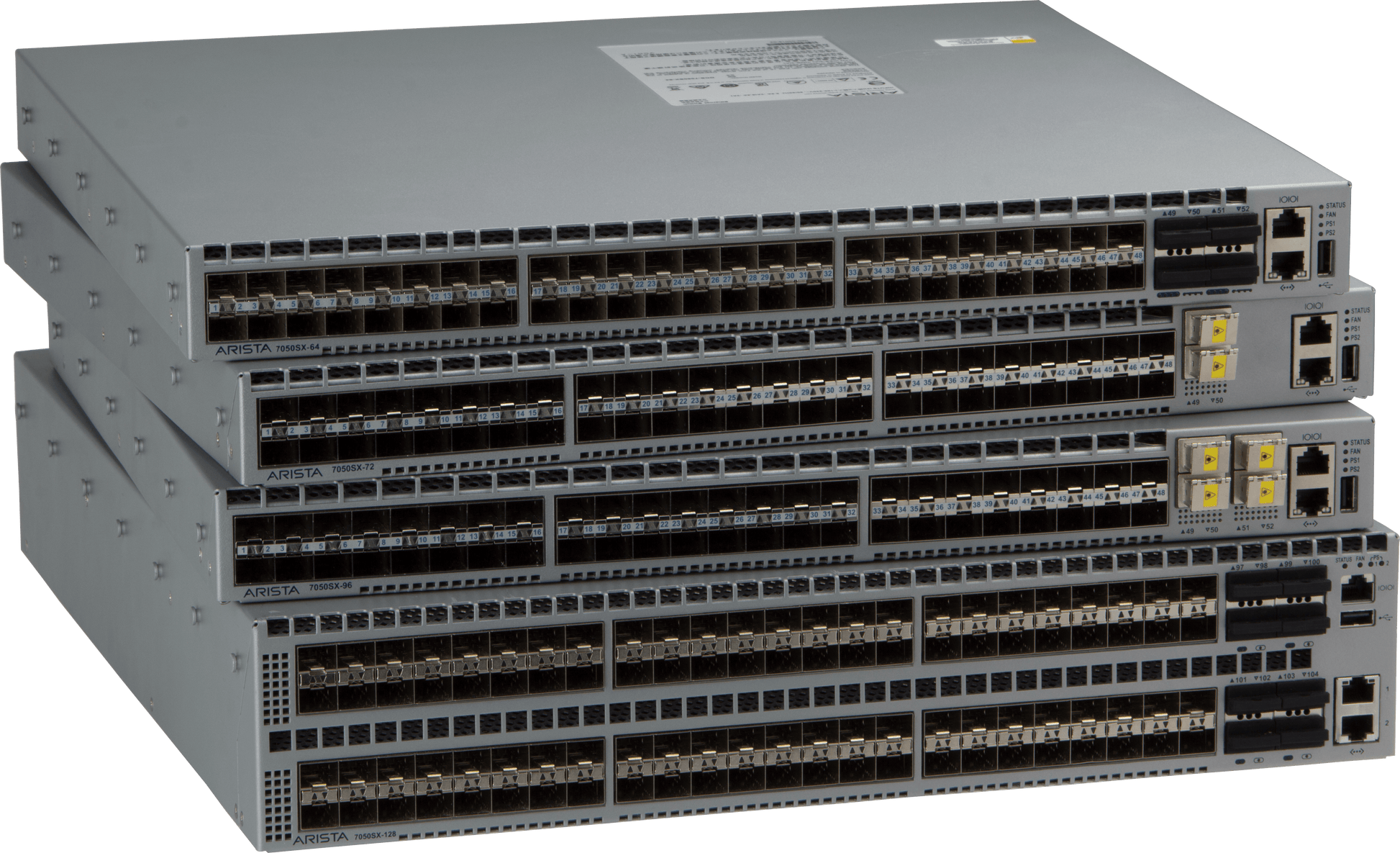

Arista DCS-7050SX3-48YC8C-R | 7050X3 48-Port 25G SFP28 Switch, 8x 100G, Rear-to-Front

SKU:DCS-7050SX3-48YC8C-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X3 is a 1RU fixed-configuration data centre leaf switch for top-of-rack deployments. It runs Arista EOS and is built for cloud-scale leaf-spine networks, providing 25G server connectivity with 100G uplinks. This SKU uses rear-to-front airflow, which suits racks where the cold aisle is at the rear.

The switch provides 48 x 25G SFP ports, which also support 10G and 1G, plus 8 x 100G QSFP100 uplinks that support 40G, 50G and 100G with breakout on the QSFP ports. It delivers 4.0 Tbps of L2/L3 throughput and 1 Bpps, with latency from 800 ns and a 32 MB packet buffer. This variant carries 16 GB of system memory and dual hot-swappable AC power supplies in a 1+1 arrangement, with four N+1 hot-swappable fans. The chassis measures 48.3 x 4.4 x 46.8 cm and weighs 9.3 kg.

The ports accept 1G, 10G and 25G SFP optics and DACs, and 40G, 50G and 100G QSFP optics and DACs. The power supplies use the PWR-511-AC module. The switch is managed through Arista EOS and is supported by CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed L2/L3 forwarding with low latency
- Runs Arista EOS with L2 and L3 multi-pathing
- Supported by Arista CloudVision
- Hot-swappable 1+1 power supplies and N+1 fans
- Under 7W per 100G port and 4W per 25G port typical power
- Breakout support on the 100G QSFP ports
- Compact 1RU form factor for top-of-rack and leaf deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 25G SFP (also 10G/1G capable)
- Uplinks: 8 x 100G QSFP100 (40G/50G/100G capable)
- Form factor: 1RU fixed configuration
- Maximum 100GbE ports: 8
- Maximum 50GbE ports: 16
- Maximum 40GbE ports: 8
- Maximum 1GbE ports: 48
- L2/L3 throughput: 4.0 Tbps
- Packets per second: 1 Bpps
- Latency: from 800 ns
- Total system buffer: 32 MB
- System memory: 16 GB
- Airflow: Rear-to-front
- Power supplies: 2 x AC, hot-swappable, 1+1 redundant
- Supported power supply: PWR-511-AC
- Fans: 4 hot-swappable, N+1 redundant
- Dimensions (W x H x D): 48.3 x 4.4 x 46.8 cm
- Weight: 9.3 kg
- Serial console: 1 x RJ-45 RS-232

FAQs

Q: What airflow direction does this model use?
A: This SKU uses rear-to-front airflow, suited to racks where the cold aisle is at the rear. The front-to-rear variant is a separate SKU.

Q: What power supplies does it use?
A: This model has two hot-swappable AC power supplies in a 1+1 redundant arrangement. The supported module is the PWR-511-AC.

Q: Do the 25G ports support slower speeds?
A: Yes. The 48 SFP ports also support 10G and 1G. The QSFP100 uplinks support 100G, 50G and 40G, with breakout supported on the QSFP ports.

Q: Does it need a software licence?
A: The switch runs Arista EOS. Optional software feature licences and CloudVision subscriptions are sold separately.

Q: How does it differ from the non-C 7050SX3-48YC8?
A: The C variant ships with 16 GB of system memory as standard, compared with 8 GB on the non-C model.
