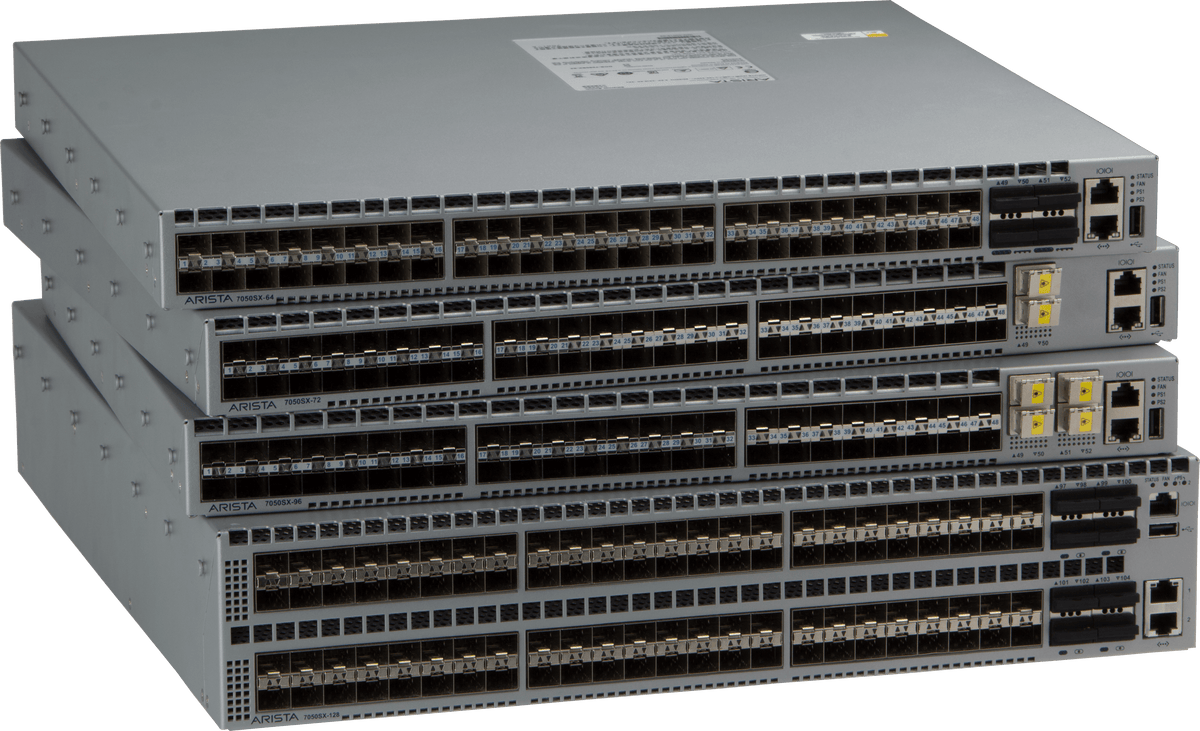

Arista DCS-7050SX3-48YC8-DC-R | 7050X3 48-Port 25G Switch, 8x 100G, 2x DC, Rear-to-Front

SKU:DCS-7050SX3-48YC8-DC-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X3 is a 1RU fixed data-centre leaf or top-of-rack switch running Arista EOS. This DC-powered variant is built for facilities with -48 VDC distribution and rear-to-front airflow, and suits dense 25G server and storage access in enterprise, cloud and HPC environments, or fixed-configuration spine roles.

It provides 48 x 25GbE SFP28 ports, which can also run at 10G or 1G, and 8 x 100GbE QSFP100 uplinks that also support 40GbE. Throughput is 4 Tbps (2 Tbps unidirectional) with a 1 Bpps forwarding rate and 800 ns latency, with no oversubscription. A 32 MB dynamic packet buffer, a quad-core x86 CPU with 8 GB of memory and 8 GB of flash support the data plane and EOS. Power comes from two hot-swap 500 W DC supplies in a 1+1 redundant arrangement, taking -48 to -60 VDC, with typical draw of 124 W and a maximum of 301 W.

The SFP ports accept 1G, 10G and 25G optics and DACs, and the QSFP ports accept 40G and 100G optics and cables including SR4, LR4, CWDM4, PSM4, AOC and CR4. Refer to the Arista transceiver matrix for the minimum EOS release per module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Arista EOS, the same software image used across all Arista switches
- 25G SFP ports configurable for 25G or a mix of 10G and 1G speeds
- QSFP ports support 100GbE or 40GbE uplinks
- Low latency with no oversubscription for leaf, top-of-rack and fixed-configuration spine roles
- Hot-swappable redundant DC power supplies and fans
- Wide range of supported 10G, 25G, 40G and 100G optics and cables

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Switch model: 7050SX3-48YC8
- Ports: 48x SFP25, 8x QSFP100
- Maximum 100GbE ports: 8
- Maximum 50GbE ports: 16
- Maximum 40GbE ports: 8
- Maximum 25GbE ports: 64
- Maximum 10GbE ports: 64
- Maximum 1GbE ports: 48
- Throughput: 4 Tbps (2 Tbps unidirectional)
- Forwarding rate: 1 Bpps
- Latency: 800 ns
- Packet buffer: 32 MB, dynamic allocation
- CPU: Quad-core x86
- System memory: 8 GB
- Flash storage: 8 GB
- Management ports: 1
- Serial console: 1 x RJ-45 RS-232
- USB ports: 1
- Power supplies: 2 x hot-swap 500 W DC, 1+1 redundant
- DC input: -48 to -60 VDC
- Fans: 4 hot-swappable, N+1 redundant
- Airflow: Rear-to-front
- Typical / maximum power: 124 W / 301 W
- Form factor: 1RU
- Dimensions (W x H x D): 44 x 4.4 x 44.6 cm
- Weight: 9.22 kg
- Operating temperature: 0 to 40 C
- Minimum EOS: 4.21.6

FAQs

Q: What power input does this switch use?
A: It has two hot-swap 500 W DC power supplies in a 1+1 redundant arrangement, taking -48 to -60 VDC. Typical system draw is 124 W with a maximum of 301 W.

Q: Which airflow direction does this model use?
A: This SKU is the rear-to-front airflow variant, so plan the rack so the rear of the switch faces the cold aisle.

Q: Which optics and cables work in the QSFP ports?
A: The 8 QSFP100 ports take 100GbE and 40GbE optics and cables, including SR4, LR4, CWDM4, PSM4, AOC and CR4. Check Arista's transceiver matrix for the minimum EOS release per module.

Q: Can the 25G ports run at lower speeds?
A: Yes. The SFP ports can be configured for 25G or a mix of 10G and 1G speeds, which helps when migrating servers from existing 10G links.

Q: What is the minimum EOS version?
A: The 7050SX3-48YC8 requires EOS 4.21.6 or later, and the platform uses the LIC-FIX-2 feature licence.
