Arista

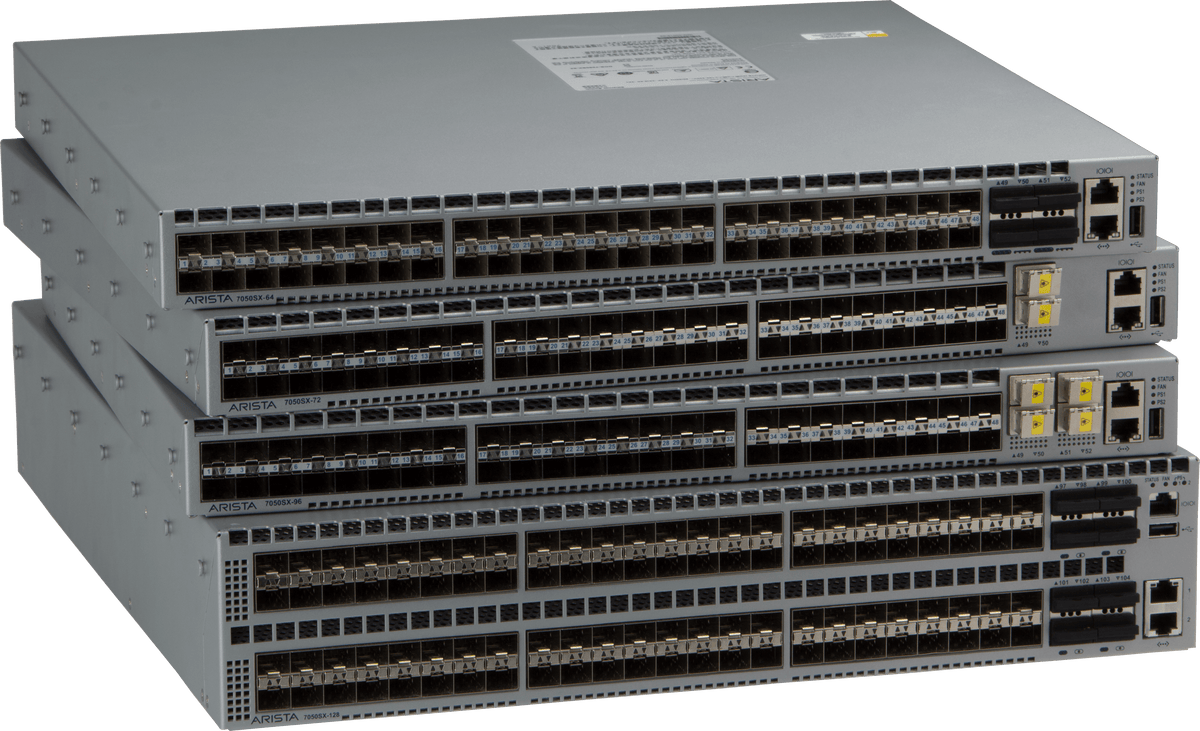

Arista DCS-7050SX3-48YC8-DC-F | 7050X3 48-Port 25G Switch, 8x 100G, DC, Front-to-Rear

SKU:DCS-7050SX3-48YC8-DC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X3 is a 1RU data centre leaf or spine switch built for 25G server access with 100G uplinks. This DC-powered, front-to-rear airflow build suits telco and DC-fed facilities, as well as cloud, virtualised, big data and storage deployments.

It provides 48 x 25G SFP ports, which also run mixed 10G or 1G, and 8 x 100G QSFP100 ports that support 100GbE or 40GbE with breakout. Throughput is 4 Tbps with no oversubscription, forwarding rate is 1 Bpps and latency is 800 ns. A 32 MB dynamic shared packet buffer absorbs bursts. Two hot-swap DC power supplies (PWR-511-DC) run in a 1+1 redundant arrangement on -48 to -60 VDC input, with redundant hot-swap fans. Typical power draw is 124W and maximum is 301W.

It runs Arista EOS, with a minimum release of 4.21.6, and takes 1G, 10G and 25G SFP optics as well as 40G and 100G QSFP optics and cables. The EOS feature licence group is LIC-FIX-2.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding with a flexible Unified Forwarding Table
- Fully shared 32 MB packet buffer for burst absorption
- Arista EOS with CloudVision, Zero Touch Provisioning, LANZ microburst detection, DMF and sFlow
- VXLAN and VM Tracer, OpenFlow, DirectFlow and eAPI
- 288K MAC entries and 360K IPv4 routes
- 1+1 redundant hot-swap power supplies and fans
- SFP ports run 25G or mixed 10G and 1G
- QSFP ports support 100GbE or 40GbE uplinks with breakout

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48x SFP25, 8x QSFP100
- Max 100GbE ports: 8
- Max 50GbE ports: 16
- Max 40GbE ports: 8
- Max 25GbE ports: 64
- Max 10GbE ports: 64
- Max 1GbE ports: 48
- Throughput: 4 Tbps
- Forwarding rate: 1 Bpps
- Latency: 800 ns
- CPU: Quad-core x86
- System memory: 8 GB
- Flash storage: 8 GB
- Packet buffer: 32 MB (dynamic buffer allocation)
- Management ports: 1
- RS-232 serial ports: 1 (RJ-45)
- USB ports: 1
- Power supplies: 2 hot-swap DC (1+1 redundant), PWR-511-DC
- DC input: -48 to -60 VDC, 500W output
- Maximum input current: 11.8A at -48V
- Hot-swap fans: 2 (1+1 redundant), FAN-7011M-F/R
- Airflow: Front to rear
- Typical and maximum power: 124W and 301W
- Rack units: 1RU
- Dimensions (WxHxD): 44 x 4.4 x 44.6 cm
- Weight: 9.22 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m
- Minimum EOS: 4.21.6

FAQs

Q: What power does this DC model need?
A: It uses two hot-swap PWR-511-DC power supplies in a 1+1 redundant arrangement. Input is -48 to -60 VDC, with 500W output per supply and up to 11.8A at -48V.

Q: Which airflow direction does this SKU use?
A: This SKU is the front-to-rear airflow build, marked -F, and uses the FAN-7011M-F/R fan tray.

Q: Which optics can the ports take?
A: The SFP ports take 1G, 10G and 25G optics, including 25GBASE-SR, LR, CR and AOC. The QSFP ports take 40G and 100G optics and cables, including 100GBASE-SR4, LR4, CWDM4, DR, FR, PSM4, AOC and CR4.

Q: What EOS release and licence does it use?
A: It runs Arista EOS 4.21.6 or later. The feature licence group is LIC-FIX-2, with optional add-ons such as LIC-FIX-2-E for Enhanced L3.

Q: How are the 100G ports used?
A: The 8 QSFP100 ports run as 100GbE or 40GbE uplinks and support breakout, up to 16 x 50GbE or 64 x 25GbE across the system.
