Arista

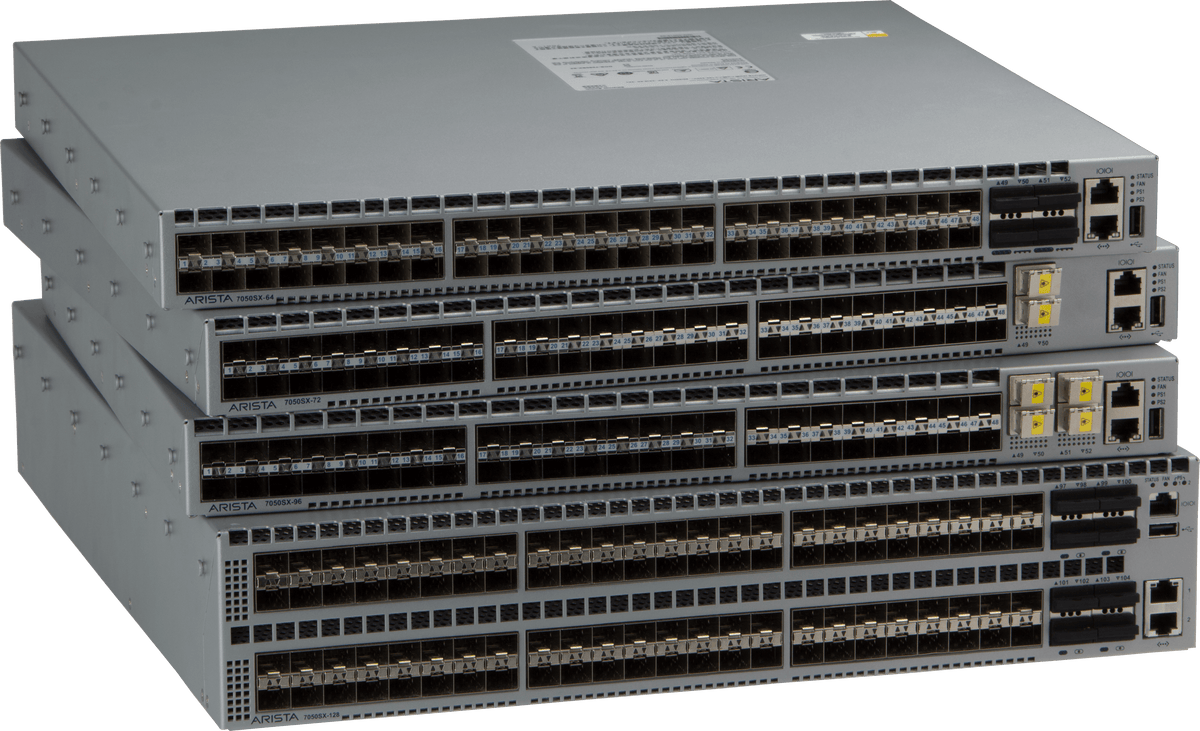

Arista DCS-7050SX3-48C8C-DC-R | 7050X3 48-Port 10G Switch, 8x 100G, 2x DC, Rear-to-Front

SKU:DCS-7050SX3-48C8C-DC-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X3 is a 1RU data centre switch built for 10G top-of-rack and leaf deployments with 100G uplinks. It is aimed at enterprise and carrier networks, cloud and virtualised data centres, and big data environments where east-west traffic dominates, and it runs Arista EOS.

This 7050SX3-48C8C model provides 48 x 1/10GbE SFP+ ports and 8 x 100GbE QSFP100 ports, which can also operate at 40G and 50G. It is rated at 1.28 Tbps (2.56 Tbps full duplex) with 1 Bpps forwarding, latency from 800 ns and a 32 MB dynamic shared packet buffer. A quad-core x86 CPU, 16 GB of RAM and 32 GB of flash support the control plane. This variant is powered by two hot-swap DC supplies in a 1+1 redundant arrangement and uses rear-to-front airflow, with typical draw of 105 W and a maximum of 259 W excluding transceivers.

It works with 10G SFP+ optics and DACs, 1GbE SX/LX/TX modules, and 40G and 100G QSFP optics and cables, with 4x10G and 4x25G breakout supported. EOS 4.30.4 or later is required. It uses the LIC-FIX-1 EOS licence family, with optional add-on licences for enhanced Layer 3, virtualisation, security and monitoring and automation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Unified Forwarding Table for flexible forwarding resources
- Wire-speed Layer 2 and Layer 3 forwarding
- VXLAN and VM Tracer support
- OpenFlow, DirectFlow and eAPI programmability
- 288K MAC entries and 360K IPv4 routes
- 1+1 redundant hot-swappable DC power supplies
- N+1 redundant hot-swappable fans
- Tool-less rails for simple rack installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: 7050SX3-48C8C
- Ports: 48 x 1/10GbE SFP+ and 8 x 100GbE QSFP100
- Maximum 100GbE ports: 8
- Maximum 50GbE ports: 16
- Maximum 40GbE ports: 8
- Maximum 25GbE ports: 16
- Maximum 10GbE ports: 64
- Throughput: 1.28 (2.56) Tbps
- Packet forwarding: 1 Bpps
- Latency: from 800 ns
- Packet buffer: 32 MB dynamic shared
- CPU: Quad-core x86
- System memory: 16 GB
- Flash storage: 32 GB
- Management ports: 1
- RS-232 serial port: 1 (RJ-45)
- USB ports: 1
- Power supplies: 2 hot-swap DC (1+1 redundant)
- DC input: -48 to -60 VDC, 11.8A max at -48V
- Fans: 2 hot-swappable (1+1 redundant), tray FAN-7011M-F/R
- Airflow: rear-to-front
- Typical / maximum power: 105 W / 259 W (excludes transceivers)
- Form factor: 1RU
- Dimensions (W x H x D): 44 x 4.4 x 46.8 cm
- Weight: 9.45 kg
- Operating temperature: 0 to 40 C
- Minimum EOS: 4.30.4

FAQs

Q: Which licence does this switch use?
A: It uses the LIC-FIX-1 EOS licence family. Optional add-ons include LIC-FIX-1-E for enhanced Layer 3, LIC-FIX-1-V for virtualisation, LIC-FIX-1-V2 for EOS extensions and security, LIC-FIX-1-Z for monitoring and automation, and LIC-FIX-1-FLX-L for FLX-Lite.

Q: What power input does this DC model need?
A: It takes two hot-swap 500 W DC supplies in a 1+1 redundant arrangement, with an input of -48 to -60 VDC at up to 11.8A at -48V. The matching supply for rear-to-front airflow is PWR-511-DC-BLUE.

Q: Which optics and cables can I use?
A: The SFP+ ports take 10G SR, SRL, LR, LRL, ER, ZR and DWDM optics, DACs up to 5m, AOCs up to 30m and 10GBASE-T, plus 1GbE SX/LX/TX. The QSFP100 ports take 40G and 100G optics and cables such as SR4, LR4, CWDM4, PSM4 and CR4, with 4x10G and 4x25G breakout supported.

Q: What airflow direction does this SKU use?
A: This SKU uses rear-to-front airflow. The fan tray is FAN-7011M-F/R and the matching DC power supply is PWR-511-DC-BLUE.

Q: Which EOS version is required?
A: The 7050X3 requires EOS 4.30.4 or later.
