Arista

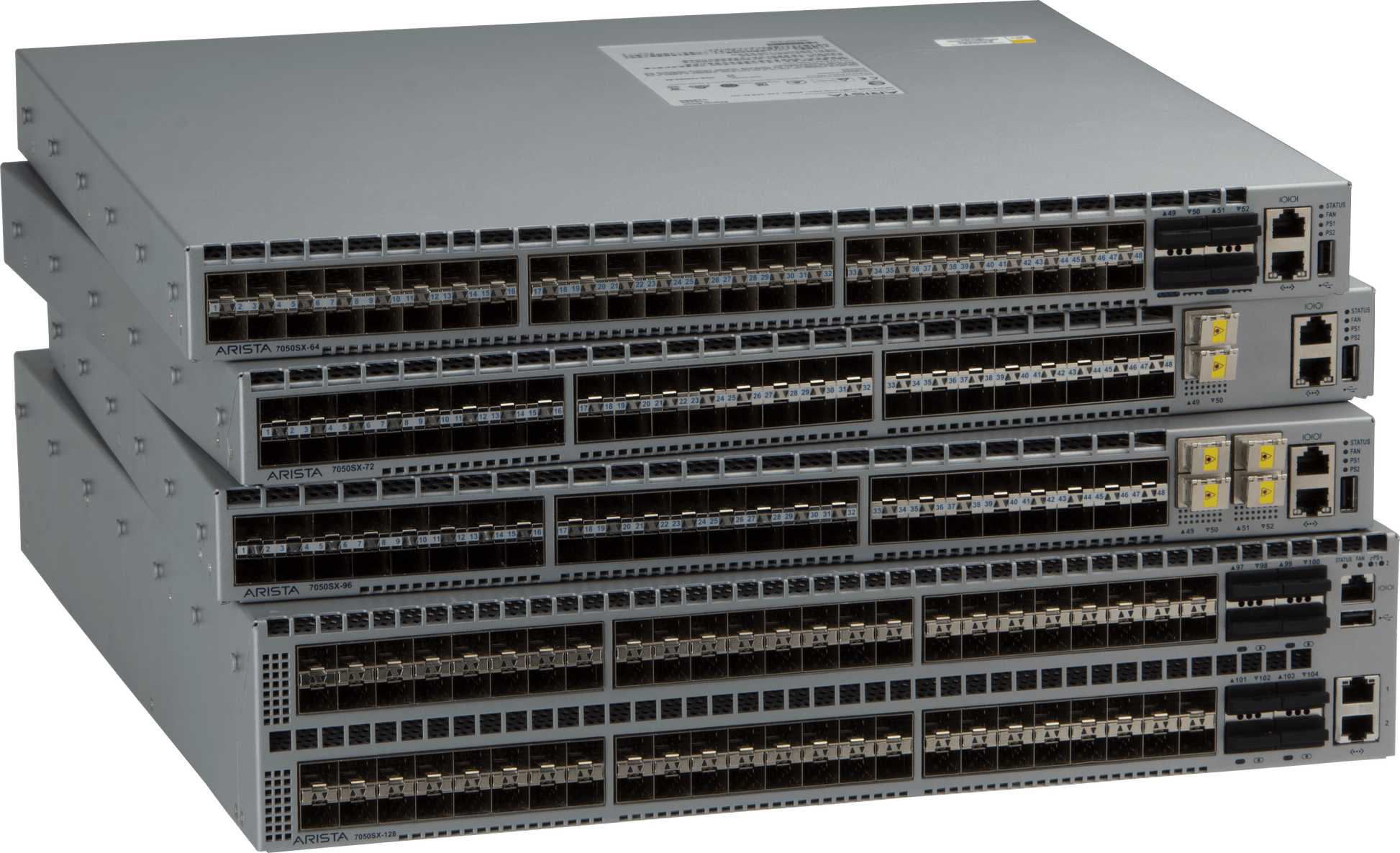

Arista DCS-7050SX3-48C8-DC-F | 7050X3 48-Port 10G Switch, 8x 100G, DC, Front-to-Rear

SKU:DCS-7050SX3-48C8-DC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X3 is a 1RU data centre switch built for leaf and top-of-rack roles. It pairs 48 SFP+ ports running at 10G or 1G with 8 QSFP100 uplinks, and runs Arista EOS. This SKU is the DC-powered variant with front-to-rear airflow, suited to carrier, cloud and enterprise data centres that are powered from a -48 VDC plant.

The switch delivers 1.28 Tbps of throughput (quoted up to 2.56 Tbps) at around 1 Bpps, with latency from 800 ns in cut-through mode. Each QSFP100 port runs 100GbE or 40GbE, with breakout options. It carries a fully shared 32 MB dynamic packet buffer, 288K MAC entries and 360K IPv4 LPM routes. Power comes from two hot-swap 500W DC supplies in a 1+1 arrangement, accepting -48 to -60 VDC, with typical draw of 106W and a maximum of 285W. The platform uses a quad-core x86 CPU with 8 GB of RAM and 8 GB of flash, and requires EOS 4.24.0 or later. Feature licensing maps to the LIC-FIX-1 group.

The SFP+ ports accept 10GBASE-SR, LR, ER and ZR optics as well as 10G DACs and AOCs. The QSFP100 ports accept a wide range of 100G and 40G optics, DACs and AOCs. Spare parts for this platform include the FAN-7000H-F fan tray and PWR-500-DC-F or PWR-511-DC-RED power supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Unified Forwarding Table for flexible allocation of forwarding resources
- Wire-speed Layer 2 and Layer 3 forwarding with cut-through latency from 800 ns
- Fully shared 32 MB packet buffer with dynamic buffer allocation
- QSFP100 uplinks support 100GbE or 40GbE, with breakout options
- 1+1 redundant hot-swappable DC power supplies and redundant hot-swappable fans
- VXLAN, VM Tracer, OpenFlow, DirectFlow and eAPI support
- Live software patching, Stateful Fault Repair, Multi-chassis LAG and 128-way ECMP
- Tool-less rails for simple rack installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48x SFP+ (1G/10G), 8x QSFP100 (100GbE/40GbE)
- Maximum 100GbE ports: 8
- Maximum 40GbE ports: 8
- Maximum 25GbE ports: 16
- Maximum 10GbE ports: 64
- Throughput: 1.28 (2.56) Tbps
- Packets per second: 1 Bpps
- Latency: 800 ns
- Packet buffer: 32 MB, dynamic buffer allocation
- CPU: Quad-core x86
- System memory: 8 GB
- Flash storage: 8 GB
- MAC entries: 288K
- IPv4 LPM routes: 360K (ALPM mode)
- ECMP: 128-way, 1K groups
- Power supplies: 2x hot-swap 500W DC (1+1 redundant), -48 to -60 VDC
- Typical / maximum power: 106W / 285W
- Airflow: Front to Rear
- Management ports: 1 x RJ-45, 1 x RS-232 serial (RJ-45), 1 x USB
- Rack units: 1RU
- Dimensions (W x H x D): 44 x 4.4 x 40.64 cm
- Weight: 9.45 kg
- Operating temperature: 0 to 40 C
- Minimum EOS version: 4.24.0

FAQs

Q: What power input does this switch use?
A: This SKU has two hot-swap 500W DC power supplies in a 1+1 redundant arrangement, accepting -48 to -60 VDC. Compatible supplies are PWR-500-DC-F and PWR-511-DC-RED.

Q: Which optics work in the SFP+ and QSFP100 ports?
A: The SFP+ ports take 1G SX, LX and TX, 10GBASE-SR, LR, ER and ZR optics, plus 10G DACs and AOCs. The QSFP100 ports take 100GBASE-SR4, LR4, CWDM4, PSM4 and similar optics, 40GBASE-SR4, LR4 and ER4 optics, plus DACs, AOCs and 4x10G breakout.

Q: Which software and licence group applies?
A: It runs Arista EOS, version 4.24.0 or later, and maps to the LIC-FIX-1 feature licence group. Optional add-on licences cover areas such as Enhanced L3, Virtualisation and Monitoring and Automation.

Q: What does the -F suffix and DC designation mean?
A: The -F suffix means front-to-rear airflow, and DC means the switch is fitted with DC power supplies rather than AC. This distinguishes it from the AC and reverse-airflow variants of the 7050SX3-48C8.

Q: Can the QSFP100 ports run at 40G?
A: Yes. Each QSFP100 port supports 100GbE or 40GbE, and breakout modes are available for 4x10G and other lower-speed configurations.
