Arista

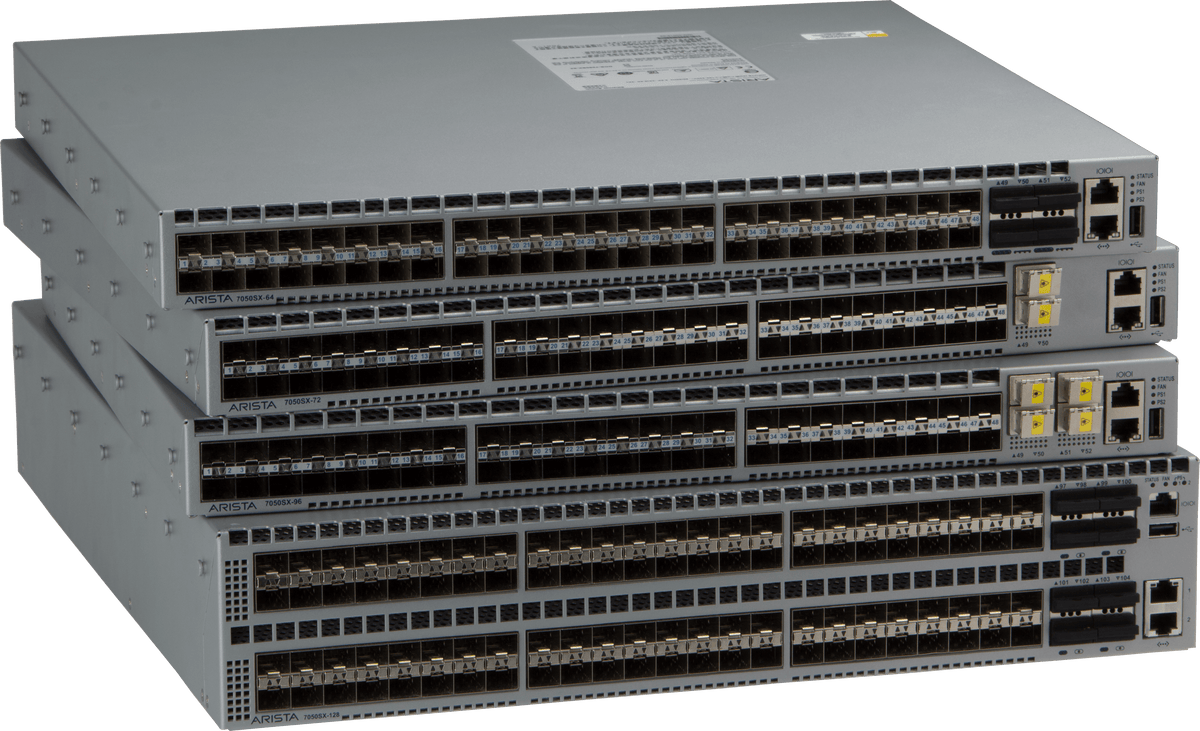

Arista DCS-7050SX2-128-F | 7050X 96-Port 10G Switch, 8x 40G QSFP+, Front-to-Rear

SKU:DCS-7050SX2-128-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This switch is part of Arista's 7050X2 family and is built for data centre leaf and spine networks, high-performance compute, big data and cloud environments. It also suits the migration from 1/10G to 10/40G server connectivity, and runs Arista EOS with Linux shell access.

It provides 96 x 1/10GbE SFP+ ports and 8 x 40GbE QSFP+ ports in a 2RU chassis, with wire-speed Layer 2 and Layer 3 forwarding, 2.56 Tbps throughput, 1440 Mpps forwarding rate and latency from 550 ns. Packet buffering is 16MB with dynamic allocation. This SKU has front-to-rear airflow and dual hot-swap AC power supplies in a 1+1 arrangement, with four hot-swap fans in an N+1 arrangement. Typical power draw is 214W, rising to a maximum of 396W. It is a Group 2 fixed switch for EOS feature licensing.

The SFP+ ports accept 1G and 10G optics, AOC and direct attach copper cables, while the QSFP+ ports accept 40G optics, AOC and DAC, including QSFP+ to 4x SFP+ breakout. The minimum EOS version is 4.18.0.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding with latency from 550 ns in cut-through mode
- Dynamic Buffer Allocation for bursty data centre traffic
- 1+1 hot-swappable power supplies and N+1 hot-swap fans for redundancy
- Multi-chassis LAG (MLAG) and up to 128-way ECMP
- VXLAN and VM Tracer for virtualised environments
- Zero Touch Provisioning, LANZ microburst detection, DANZ advanced mirroring and sFlow
- OpenFlow, DirectFlow and eAPI programmability with CloudVision support
- Runs Arista EOS with Linux shell access and extensibility via bash, python and C++

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 96 x 1/10GbE SFP+, 8 x 40GbE QSFP+
- Throughput: 2.56 Tbps
- Forwarding rate: 1440 Mpps
- Latency: 550 ns
- CPU: Quad-core x86
- System memory: 8GB
- Flash storage: 4GB
- Packet buffer: 16MB with dynamic buffer allocation
- Management ports: 2 x 10/100/1000, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x hot-swap AC (1+1 redundant)
- Fans: 4 x hot-swap (N+1 redundant)
- Airflow: Front-to-rear
- Power consumption: 214W typical, 396W maximum
- MAC addresses: 288K
- IPv4 hosts: 208K
- IPv4 unicast routes: 144K
- IPv6 unicast routes: 77K
- ECMP: 128-way, 2K groups
- Dimensions (WxHxD): 48.3 x 8.8 x 45.9 cm (2RU)
- Weight: 15.1 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -25 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
- EOS feature licence group: Group 2
- Minimum EOS version: 4.18.0

FAQs

Q: Which airflow direction does this SKU use?
A: This SKU uses front-to-rear airflow. The platform supports reversible cooling, so confirm the airflow direction suits your rack layout before ordering.

Q: What licensing does this switch use?
A: It runs Arista EOS and is a Group 2 fixed switch for EOS feature licensing. Optional Group 2 licences include LIC-FIX-2-E for enhanced Layer 3 routing, LIC-FIX-2-V for VMTracer and VXLAN, LIC-FIX-2-V2 for EOS extensions and security, and LIC-FIX-2-Z for monitoring and automation.

Q: What power supplies does it use?
A: It uses two hot-swap AC power supplies in a 1+1 redundant arrangement. The compatible model is the PWR-500AC (100-240VAC, 50/60Hz, IEC C13). Typical draw is 214W and maximum is 396W.

Q: What optics and cables work with the SFP+ and QSFP+ ports?
A: The SFP+ ports support 1G and 10G optics including SR, LR, ER, ZR and DWDM, 10GBASE-CR and AOC cables, and 100/1000BASE-T modules. The QSFP+ ports support 40G SR4, LR4, ER4 and related optics, 40GBASE-CR4 and AOC cables, and QSFP+ to 4x SFP+ breakout cables.

Q: What is the minimum EOS version required?
A: The minimum supported EOS version is 4.18.0.
