Arista DCS-7050SX-72Q-F | 7050X 48-Port 10G SFP+ Switch, 6x 40G QSFP+, Front-to-Rear

SKU:DCS-7050SX-72Q-F

Request Quote

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

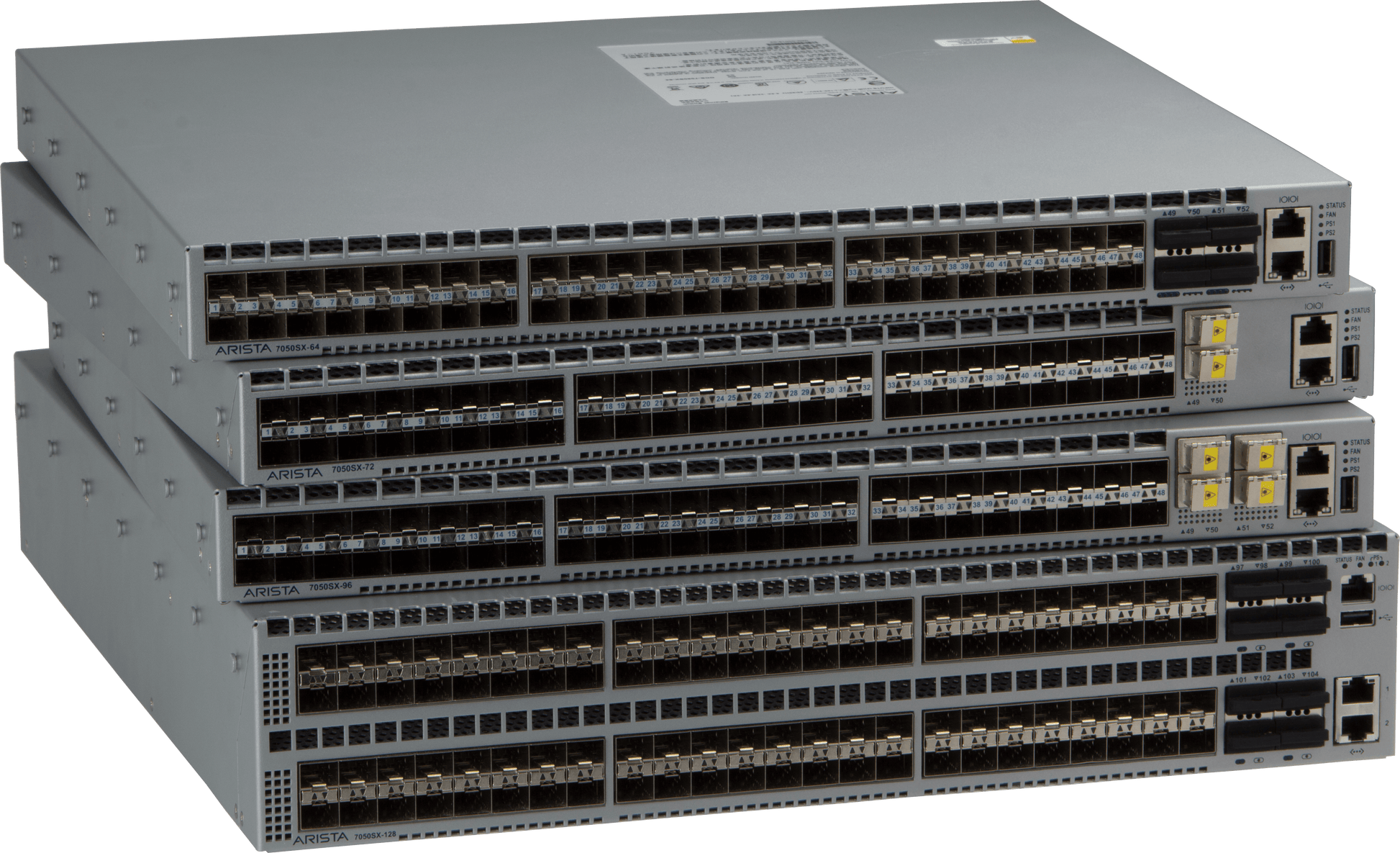

The Arista 7050SX-72Q is a 1RU data centre leaf switch from the 7050X Series, built for 10GbE server access with 40G uplinks. It runs Arista EOS and suits leaf-spine fabrics, high-performance compute and big data environments, as well as networks migrating from 10G to 40G.

This -F variant has 48 SFP+ ports supporting 1/10GbE and 6 QSFP+ 40GbE ports, with front-to-rear airflow and dual hot-swap AC power supplies in a 1+1 arrangement. It delivers 1.44 Tbps of throughput and 1080 Mpps with latency from 550 ns, backed by a 12MB dynamic packet buffer. Typical power draw is 144W with a maximum of 261W. It is a non-PoE switch, and four hot-swap fans provide N+1 cooling.

The SFP+ ports accept 10GBASE-CR, AOC, SR, LR, ER, ZR and DWDM optics, along with 1GbE SX/LX and 100/1000BASE-T modules. The QSFP+ ports accept 40GBASE-CR4, AOC, SR4, LR4 and ER4 optics, and QSFP+ to 4x SFP+ breakout cables are supported. EOS 4.15.4 is the minimum software version.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding with latency from 550 ns in cut-through mode
- Dynamic Buffer Allocation, with up to 6.7MB of the 12MB shared buffer available to a single port
- Platinum-efficiency power supplies above 94%, with typical draw under 2W per 10GbE port
- Single Arista EOS binary image with Linux shell access, plus bash, Python and C++ extensibility
- VXLAN routing and bridging, VM Tracer, OpenFlow, DirectFlow and eAPI
- Zero Touch Provisioning, LANZ microburst detection, DANZ advanced mirroring and sFlow
- MLAG with up to 64 ports per MLAG and up to 64-way ECMP
- CloudVision management support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x SFP+ (1/10GbE), 6 x QSFP+ (40GbE)
- Throughput: 1.44 Tbps
- Packets per second: 1080 Mpps
- Latency: from 550 ns
- Packet buffer: 12MB dynamic buffer allocation
- CPU: Quad-Core x86
- System memory: 4 GB
- Flash storage: 4 GB
- SSD storage (optional): 100 GB
- Management: 1 x 10/100/1000, 1 x RS-232 serial (RJ-45), 2 x USB
- Power supplies: 2 x hot-swap AC (1+1 redundant), PWR-500AC
- Fans: 4 x hot-swap (N+1 redundant)
- Airflow: front-to-rear
- Power consumption: 144W typical, 261W maximum
- PoE: Not supported
- Dimensions (WxHxD): 48.3 x 4.4 x 40.6 cm (1RU)
- Weight: 7.8 kg
- MAC addresses: 32K (base mode) to 288K (UFT modes)
- IPv4 unicast routes: 16K base to 144K UFT
- ECMP: 64-way, 1K groups
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 95%
- Minimum EOS version: 4.15.4

FAQs

Q: What licensing does this switch use?
A: It runs a single Arista EOS image and belongs to the Arista Group 2 fixed-switch licence group. Optional add-on licences such as LIC-FIX-2-E (Enhanced L3), LIC-FIX-2-V (VMTracer and VXLAN) and LIC-FIX-2-Z (Monitoring and Automation) are sold separately.

Q: What power does it need?
A: It uses dual hot-swap PWR-500AC power supplies rated 100-240VAC, 50/60Hz, with IEC C13 input. Typical draw is 144W and maximum is 261W. It is a non-PoE switch, so it does not power downstream devices.

Q: Which optics and cables work in the SFP+ and QSFP+ ports?
A: The SFP+ ports support 10GBASE-CR (0.5 to 5m), AOC, SR, LR, ER, ZR and DWDM optics, plus 1GbE SX/LX and 100/1000BASE-T modules. The QSFP+ ports support 40GBASE-CR4, AOC, SR4, LR4 and ER4 optics, and QSFP+ to 4x SFP+ breakout cables.

Q: Which airflow direction does the -F model use?
A: The -F suffix denotes front-to-rear airflow. The airflow direction is set by the fan and power supply configuration, so match it to the hot and cold aisle layout of your rack.

Q: What is the minimum EOS version?
A: The minimum supported EOS version is 4.15.4.
