Arista

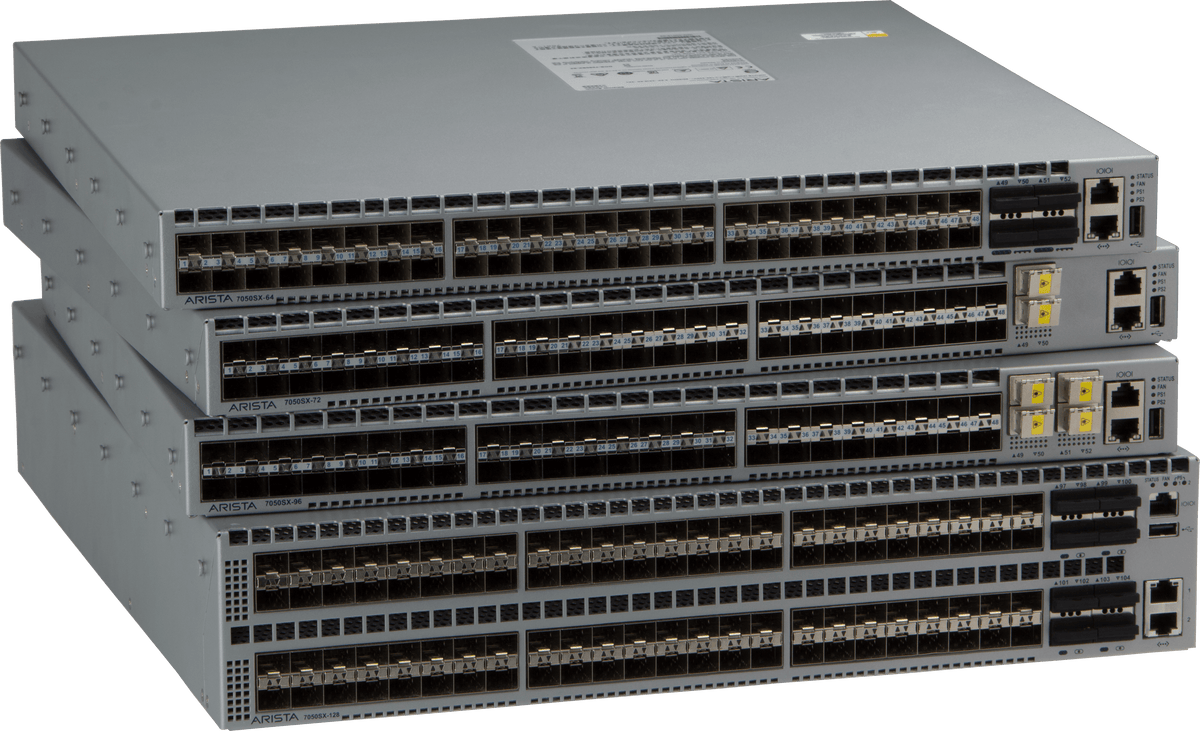

Arista DCS-7050SDX4-48D8-F | 7050X4 48x 100G SFP-DD Switch, 8x 400G, Front-to-Rear

SKU:DCS-7050SDX4-48D8-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X4 is a 1RU fixed data centre switch from the fourth-generation 7050X series. It is built for top-of-rack leaf and spine roles, connecting servers with 50G and 100G PAM4 NICs and pushing 400G uplinks towards the spine. It also suits flattened leaf-spine fabrics, 400G migration, and cloud, AI/ML and containerised workloads.

This SKU provides 48 x 100G SFP-DD downlink ports and 8 x 400G QSFP-DD ports, with up to 72 logical ports available using breakouts. Wire-speed throughput is 8.0 Tbps (16 Tbps full duplex) at 2.7 Bpps, with latency from 900 ns and an 82 MB fully shared packet buffer. The -F suffix means front-to-rear airflow, and the switch is fitted with 2 hot-swap AC power supplies in a 1+1 redundant arrangement, with a typical draw of 165 W and a maximum of 520 W.

The base Arista EOS feature set is bundled and the model uses the LIC-FIX-3 licence group, with optional add-on licences available for enhanced Layer 3 and other features. The 100G SFP-DD ports take SFP-DD modules and cables, while the 400G QSFP-DD ports support optics from SR8 to ZR, AOCs and breakout cables to 200G, 100G, 50G and 25G.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding with flexible forwarding tables
- Each 100G SFP-DD port supports 100GbE, 50GbE, 25GbE and 10GbE modes
- Each 400G QSFP-DD port supports 400GbE, 200GbE, 100GbE and 40GbE modes
- EVPN/VXLAN routing and bridging
- Arista EOS automation and programmability including eAPI, Python, Bash and ZTP
- CloudVision management support
- High availability with 1+1 hot-swap PSUs, N+1 hot-swap fans, MLAG, 128-way ECMP and Smart System Upgrade
- LANZ latency and microburst monitoring, sFlow and advanced mirroring
- QoS with PFC, ECN and DCBX
- IEEE 1588 PTP as Transparent and Boundary Clock

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: 7050SDX4-48D8
- Ports: 48x SFP-DD 100G, 8x QSFP-DD 400G
- Max 400GbE ports: 8
- Max 200GbE ports: 16
- Max 100GbE ports: 72
- Max 50GbE ports: 72
- Max 40GbE ports: 16
- Max 25GbE ports: 72
- Max 10GbE ports: 72
- Throughput (FDX): 8.0 (16) Tbps
- Packets per second: 2.7 Bpps
- Latency: 900 ns
- CPU: Quad-Core x86
- System memory: 16 GB
- Flash storage: 16 GB
- Packet buffer: 82 MB (fully shared)
- Management ports: 1
- RS-232 serial ports: 1 (RJ-45)
- USB ports: 1
- Hot-swap power supplies: 2 (1+1 redundant)
- Hot-swappable fans: 4 (N+1 redundant)
- Airflow: Front-to-rear
- Typical/max power: 165 W / 520 W
- Rack units: 1RU
- Size (W x H x D): 43.99 x 4.37 x 47.46 cm
- Weight: 10.4 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m

FAQs

Q: Does this switch need a licence?
A: The base Arista EOS feature set is bundled with the switch, and the model sits in the LIC-FIX-3 licence group. Optional add-on licences such as LIC-FIX-3-E for enhanced Layer 3 (BGP, OSPF, ISIS, PIM, NAT) are available. CloudVision is sold separately as a subscription.

Q: Which power supplies does it use?
A: This SKU uses 2 hot-swap AC power supplies in a 1+1 redundant arrangement. The AC options for the model are PWR-1011-AC-RED and PWR-1011-AC-BLUE, rated 1000 W at 100-240 V AC. Typical draw is 165 W and maximum is 520 W.

Q: What optics and cables work with the ports?
A: The 100G SFP-DD ports take SFP-DD modules and cables. The 400G QSFP-DD ports support optics including SR8, DR4, XDR4, FR4, LR4, PLR4 and ZR, plus AOCs and breakout cables to 200G, 100G, 50G and 25G.

Q: How does this model differ from other 7050X4 variants?
A: This SKU has 48 x 100G SFP-DD downlinks, front-to-rear airflow and 2 AC power supplies. Variants with the opposite airflow direction or DC power supplies carry different SKU suffixes.

Q: What is the minimum EOS version?
A: The minimum supported Arista EOS release for this model is 4.30.2.
