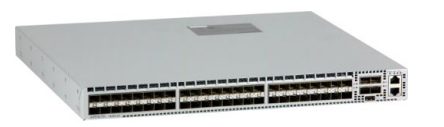

Arista DCS-7050S-52-R | 7050S 52-Port 10G SFP+ Switch, Rear-to-Front, Dual 460W AC

SKU:DCS-7050S-52-R

Request Quote

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050S-52 is a 1RU data centre switch from the Arista 7050 Series, built for top-of-rack and cloud 10GbE server access and aggregation where low latency and low power per port matter. It runs Arista EOS and forwards Layer 2, 3 and 4 traffic at wire speed.

This SKU provides 52 x 1/10GbE SFP+ ports with no QSFP+ uplinks, 1.04 Tbps throughput, 780 Mpps forwarding and cut-through latency of 800 to 1150 ns. It has a 9 MB dynamic packet buffer, 128K MAC addresses, 32-way ECMP and a dual-core x86 CPU with 4 GB of memory. Dual 460W AC hot-swap power supplies run in a 1+1 arrangement alongside four N+1 hot-swap fans, with rear-to-front airflow. Typical power draw is 103 W and maximum is 185 W. It ships with the EOS base feature set, with optional licences for Enhanced L3, Virtualization and Monitoring and provisioning.

The SFP+ ports support 10GBASE-CR twinax, 10GBASE-AOC, SR, LR, ER and ZR optics, plus 1G SX, LX and TX modules. Spare parts include FAN-7000-R, PWR-460AC-R and KIT-7000.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Cut-through latency of 800 ns to 1.2 us
- 1+1 redundant hot-swap power supplies and N+1 redundant hot-swap fans
- Arista EOS with Zero Touch Provisioning, VM Tracer and sFlow
- Native Linux tools and user applications can run in a VM
- Typical power draw under 2 W per port with twinax cables
- Dynamic packet buffer allocation across ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 52 x 1/10GbE SFP+
- Uplinks: none (no QSFP+ ports)
- Throughput: 1.04 Tbps
- Forwarding rate: 780 Mpps
- Latency: 800 to 1150 ns
- Packet buffer: 9 MB dynamic allocation
- CPU: Dual-Core x86
- System memory: 4 GB
- Flash storage: 2 GB
- Management port: 1 x 100/1000
- Serial console: 1 x RS-232 (RJ-45)
- USB ports: 1
- MAC addresses: 128,000
- IPv4 routes unicast / multicast: 16,000 / 8,000
- IPv6 routes unicast / multicast: 8,000 / 4,000
- ECMP: 32-way
- Power supplies: 2 x 460W AC hot-swap (1+1 redundant)
- AC input: 100-240 V AC, 50/60 Hz, IEC 320-C13
- Fans: 4 hot-swap (N+1 redundant)
- Airflow: rear-to-front
- Typical / maximum power draw: 103 W / 185 W
- Dimensions (W x H x D): 44.5 x 4.4 x 40.64 cm
- Weight: 7.71 kg
- Operating temperature: 0 to 40 C
- Form factor: 1RU, 19 in rack

FAQs

Q: Does this switch need a licence?
A: It runs Arista EOS with the base feature set covering L2 and L3 forwarding. Optional licences add Enhanced L3 (BGP, OSPF, ISIS, PIM, NAT), Virtualization and Monitoring and provisioning.

Q: What power supplies does it use?
A: It uses dual 460W AC hot-swap power supplies (PWR-460AC-R) in a 1+1 arrangement, accepting 100-240 V AC with IEC C13 inlets. Typical draw is 103 W and maximum is 185 W.

Q: Which optics and cables work in the SFP+ ports?
A: The ports accept 10GBASE-CR twinax up to 5 m, 10GBASE-AOC up to 30 m, and SR, LR, ER and ZR optics. 1G SX, LX and TX modules are also supported.

Q: Which way does the airflow run on this model?
A: This SKU has rear-to-front airflow, so the fans draw air in at the port-facing rear and exhaust at the front. Match it to your hot and cold aisle layout, and use FAN-7000-R for replacement fans.

Q: Does it have QSFP+ uplinks?
A: No. All 52 ports are SFP+ and there are no 40G QSFP+ uplinks on this model.
