Arista

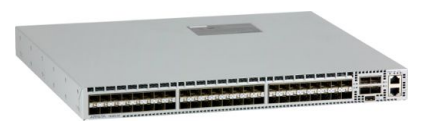

Arista DCS-7050S-52-D | 7050S 52-Port 10G SFP+ Switch, 50GB SSD, No Fans or PSU

SKU:DCS-7050S-52-D

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050S-52 is a 1RU data centre switch built for top-of-rack and leaf roles in data centre and cloud networks. It runs Arista EOS and offers wire-speed Layer 2, 3 and 4 forwarding. Leaf-spine designs using L3 ECMP or L2 MLAG scale to about 18,000 10GbE nodes.

This SKU provides 52 x 1/10GbE SFP+ ports, 1.04 Tbps of throughput and a 780 Mpps forwarding rate, with latency of 800 to 1150 ns. A 9 MB dynamic shared packet buffer can allocate up to 5 MB to a single port. The DCS-7050S-52-D variant carries the factory-fitted 50GB SSD, which suits on-switch logging, packet capture and PXE boot services. It is the no fans, no PSU version, so fans and power supplies are selected separately to suit your airflow direction and AC or DC power.

The SFP+ ports accept 10GBASE-CR direct attach cables, AOC, SR, LR, ER, ZR and DWDM optics, along with 1G SX, LX and TX modules. Supported fan modules are FAN-7000-F and FAN-7000-R, and supported power supplies are PWR-460AC-F/R and PWR-460DC-F/R.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding on Arista EOS
- MLAG and 32-way ECMP for resilient leaf-spine designs
- Routing with OSPF, BGP, IS-IS, RIPv2, PIM-SM/SSM, VRRP, VRF and PBR
- Zero Touch Provisioning (ZTP) and eAPI automation
- On-switch Linux tools, bash access, Python and KVM/QEMU support
- Arista DirectFlow and OpenFlow 1.0 for programmable traffic steering
- VM Tracer for VMware vSphere and CloudVision support
- Stateful Fault Repair, live software patching, DCBX, PFC, ECN and sFlow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 52 x 1/10GbE SFP+
- 1GbE support: all 52 ports via SFP/SFP+
- Throughput: 1.04 Tbps
- Forwarding rate: 780 Mpps
- Latency: 800 to 1150 ns
- Packet buffer: 9 MB dynamic shared
- SSD storage: 50 GB
- CPU: dual-core x86
- System memory: 4 GB DRAM
- Flash storage: 2 GB
- MAC addresses: 128,000
- IPv4 unicast routes: 16,000
- IPv6 unicast routes: 8,000
- ECMP: 32-way
- ACLs: 3,000
- Management: 1 x 100/1000 port, 1 x RS-232 RJ-45 serial, 1 x USB
- Fans: 4 hot-swappable slots, N+1 redundant, fan modules sold separately
- Power supplies: 2 hot-swap slots, 1+1 redundant, supplies sold separately
- Typical / maximum power draw: 103 W / 185 W
- Dimensions (W x H x D): 44.5 x 4.4 x 40.64 cm
- Weight: 7.71 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Form factor: 1RU

FAQs

Q: What does the -D in DCS-7050S-52-D mean?
A: This variant includes the factory-fitted 50GB SSD and is the no fans, no PSU version. Fans and power supplies are selected separately.

Q: Which power supplies and fans does it work with?
A: Supported power supplies are PWR-460AC-F/R and PWR-460DC-F/R, which are 460 W AC or DC units in front-to-rear or rear-to-front airflow. Supported fan modules are FAN-7000-F (front-to-rear) and FAN-7000-R (rear-to-front). Power supplies run 1+1 redundant and fans run N+1 redundant.

Q: Which optics and cables can the SFP+ ports use?
A: The ports support 10GBASE-CR direct attach cables (0.5 to 5 m), AOC (3 to 30 m), SR/SRL, LR/LRL, ER, ZR and 10G-DWDM optics. They also take 1G SX, LX and TX modules and 100TX.

Q: Does it need a software licence?
A: It runs Arista EOS. Optional licences cover Enhanced L3 (LIC-FIX-2-E, with BGP, OSPF, IS-IS, PIM and NAT), Virtualization (LIC-FIX-2-V) and Monitoring and provisioning (LIC-FIX-2-Z, with ZTP, API and OpenFlow).

Q: What is the built-in SSD used for?
A: The 50GB SSD is used for on-switch logging, packet captures with tcpdump and PXE boot services.
