Arista

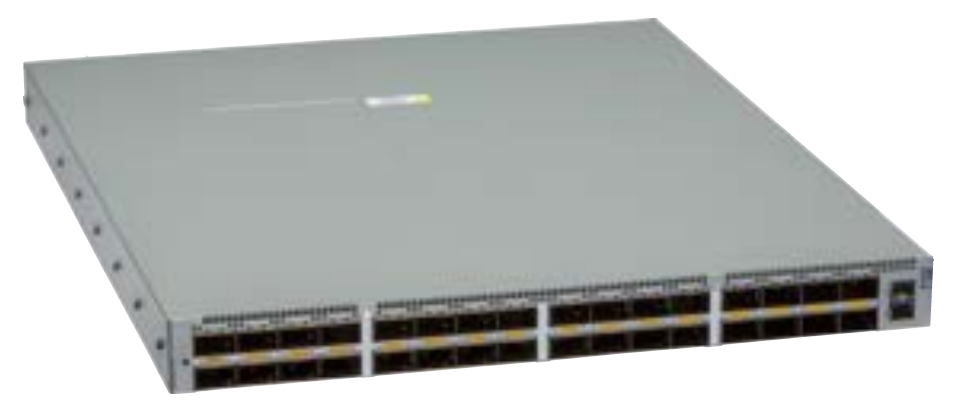

Arista DCS-7050DX4M-32S-F | 7050X4 32-Port 400G Switch, MACsec, Front-to-Rear Air

SKU:DCS-7050DX4M-32S-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X4 is a 1RU data centre switch built for top-of-rack leaf and fixed-configuration spine roles, 400G spine and DCI links, scale-out leaf-spine fabrics and AI/ML clusters. This MACsec variant adds link encryption on 16 of its ports and runs Arista EOS.

It provides 32 x 400GbE QSFP-DD ports plus 2 x SFP+ ports, with up to 12.8 Tbps (25.6 Tbps full duplex) of wire-speed forwarding, 5.3 Bpps and 900 ns latency. A 132 MB dynamic packet buffer is shared across the ports. MACsec is enabled on ports 1-8 and 25-32. Each QSFP-DD port can run 400, 200, 100, 50, 40, 25 or 10GbE modes using breakout cables. The chassis uses front-to-rear airflow, with two 1+1 hot-swap AC power supplies and three N+1 hot-swap fans. Typical power draw is 423 W, with a maximum of 1208 W.

The base Arista EOS feature set is included, and the MACsec feature licence for this model is LIC-FIX-3-MACSEC. Minimum EOS release is 4.30.1. The 400G ports support DR4, FR4, LR4, SR8, AOC and DAC options, and the SFP+ ports take 10G optics and cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding with EVPN/VXLAN
- MACsec encryption on 16 ports for secure link-level traffic
- Breakout support from each QSFP-DD port for 400, 200, 100, 50, 40, 25 and 10GbE
- Arista EOS with a single binary image, Linux shell access, eAPI and Python/bash extensibility
- CloudVision, Zero Touch Provisioning, LANZ microburst detection and sFlow
- 128-way ECMP, 64-way MLAG, VRF, BGP, OSPF and IS-IS
- Programmable pipeline with dynamic load balancing
- 1+1 hot-swap power, N+1 hot-swap fans and tool-less rails

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 x 400GbE QSFP-DD, 2 x SFP+
- MACsec enabled ports: 16 (ports 1-8 and 25-32)
- Throughput: 12.8 Tbps (25.6 Tbps full duplex)
- Packet forwarding: 5.3 Bpps
- Latency: 900 ns
- Packet buffer: 132 MB dynamic allocation
- CPU: Quad-core x86
- System memory: 16 GB
- Flash storage: 16 GB
- Management ports: 1 x 10/100/1000
- Serial port: 1 x RS-232 (RJ-45)
- USB ports: 1
- Max 100GbE ports: 128
- Max 25GbE ports: 128
- Max 10GbE ports: 128 + 2
- Max total interfaces: 144
- MAC entries: 128K
- IPv4 / IPv6 LPM routes (ALPM): 800K / 500K
- ECMP: 128-way, 4K groups
- Power supplies: 2 x AC hot-swap, 1+1 redundant
- Fans: 3 hot-swap, N+1 redundant, front-to-rear airflow
- Typical / maximum power: 423 W / 1208 W
- Form factor: 1RU
- Dimensions (W x H x D): 43.9 x 4.45 x 50.56 cm
- Weight: 11.1 kg
- Operating temperature: 0 to 40 C
- Minimum EOS: 4.30.1

FAQs

Q: Which ports support MACsec on this switch?
A: MACsec is enabled on 16 ports: ports 1-8 and 25-32. The feature licence for this model is LIC-FIX-3-MACSEC.

Q: Does it need a separate licence to run?
A: The base Arista EOS feature set is included. Optional licences such as Enhanced L3 or Monitoring and Automation are sold separately, and CloudVision is available as a subscription. The minimum EOS release is 4.30.1.

Q: What power supplies and airflow does it use?
A: It uses two 1+1 redundant hot-swap AC power supplies, PWR-2421-HV (2400W high-voltage), and a FAN-7011H-F fan tray with front-to-rear airflow only. Airflow is not reversible.

Q: What can I connect to the 400G and SFP+ ports?
A: The QSFP-DD ports support 400GBASE-CR8, AOC, SR8, DR4, XDR4, FR4, LR4, PLR4 and ZR, 200G options and 100G, 50G and 25G breakout cables. The two SFP+ ports support 10GBASE-CR, AOC, SR, LR, ER, ZR and T.

Q: Which rack kits and spares fit this model?
A: Compatible rack kits include KIT-7101, KIT-7103, KIT-2POST-1U-NT and KIT-7101-RK. Spare modules are PWR-2421-HV-RED for power and FAN-7011H-F for the fan tray.
