Arista

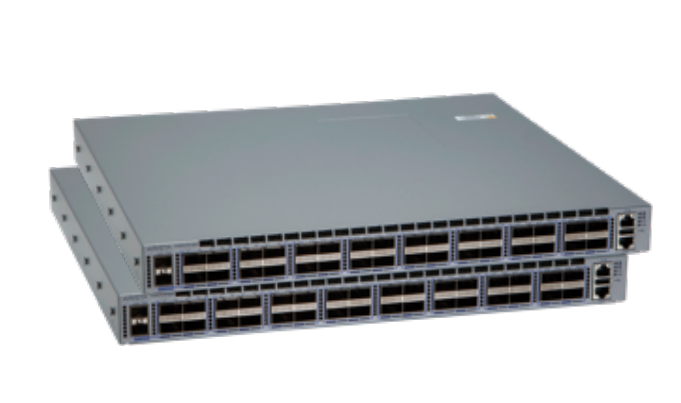

Arista DCS-7050CX3-32C-DC-F | 7050X3 32-Port 100G QSFP100 Switch, 2xDC, Front-to-Rear

SKU:DCS-7050CX3-32C-DC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X3 is a 1RU data centre switch built for high-performance leaf or collapsed-spine tiers, and for server and storage deployments where DC power is required, such as telco and DC-powered facilities. It runs Arista EOS, a single binary image with full Linux shell access and extensibility through bash, python, C++, GO and OpenConfig.

This SKU provides 32 QSFP100 ports, each supporting 100, 40, 4x10, 4x25 and 2x50GbE modes, plus 2 SFP+ ports. It is rated for up to 6.4 Tbps bi-directional throughput, 2 Bpps packet forwarding and 800 ns latency, with a 32 MB dynamic packet buffer. It ships with two hot-swap 500 W DC power supplies in a 1+1 redundant arrangement, taking -48 to -60 VDC input, and uses front-to-rear airflow with N+1 redundant hot-swappable fans. Typical power draw is 165W with a maximum of 334W.

It supports 10G to 100G pluggable optics and cables, including QSFP+ to 4xSFP+ breakouts, 40GBASE-CR4, AOC and 100G QSFP100 optics and DACs. Management is through Arista CloudVision, with Zero Touch Provisioning available. Minimum EOS release is 4.30.4.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Arista EOS with full Linux shell access, plus bash, python, C++, GO and OpenConfig extensibility
- Wire-speed Layer 2 and Layer 3 forwarding
- Flexible 40G and 100G support with quad 10GbE and 25GbE breakout
- VXLAN and VM Tracer, with OpenFlow, DirectFlow and eAPI
- 288K MAC entries, 360K IPv4 routes and 168K IPv4 host routes
- Traffic-aware ECMP and UCMP
- CloudVision, Zero Touch Provisioning, LANZ microburst detection and sFlow
- Stateful Fault Repair and in-service software upgrade foundation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: 7050CX3-32C
- Ports: 32x QSFP100, 2x SFP+
- Port modes: each QSFP100 supports 100/40/4x10/4x25/2x50GbE
- Throughput: 3.2 (6.4) Tbps
- Packet forwarding: 2 Bpps
- Latency: 800 ns
- Packet buffer: 32 MB, dynamic buffer allocation
- CPU: Quad-Core x86
- System memory: 16 GB
- Flash storage: 32 GB
- Management ports: 1
- Console: 1x RS-232 (RJ-45)
- USB ports: 1
- Power supplies: 2x hot-swap 500 W DC (PWR-500-DC-F), 1+1 redundant
- DC input: -48 to -60 VDC, 11.8A max at -48V
- Fans: 4 hot-swappable, N+1 redundant (FAN-7011M-F/R)
- Airflow: Front to rear
- Power consumption: 165W typical, 334W maximum (excluding transceivers)
- Form factor: 1RU
- Dimensions (WxHxD): 44 x 4.4 x 46.8 cm
- Weight: 9.45 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Minimum EOS release: 4.30.4

FAQs

Q: Does this switch need a licence?
A: It requires an Arista EOS feature licence. The datasheet lists LIC-FIX-2 for the 7050CX3-32C, with a minimum EOS release of 4.30.4.

Q: What power input does this SKU need?
A: It uses two hot-swap 500 W DC power supplies (PWR-500-DC-F) in a 1+1 redundant arrangement, taking -48 to -60 VDC input with 11.8A maximum input current at -48V.

Q: What airflow does this model use?
A: This -F SKU uses front-to-rear airflow, matched by the PWR-500-DC-F power supplies and FAN-7011M-F/R fan tray.

Q: What optics and cables does it work with?
A: It supports 10G to 100G pluggable optics and cables, including QSFP+ to 4xSFP+ breakouts, 40GBASE-CR4, AOC and 100G QSFP100 optics and DACs. Check the Arista transceiver guide for the minimum EOS release per module.

Q: How does this SKU differ from the AC-powered 7050CX3-32C?
A: This SKU is the DC-powered variant with two DC power supplies and front-to-rear airflow. The AC alternative uses the PWR-500-AC-F/R power supply.
