Arista DCS-7020R4M-48Y-4QC-R | 7020R4M 48-Port 25G Switch, 4x 100G, TunnelSec, 2x AC
SKU:DCS-7020R4M-48Y-4QC-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

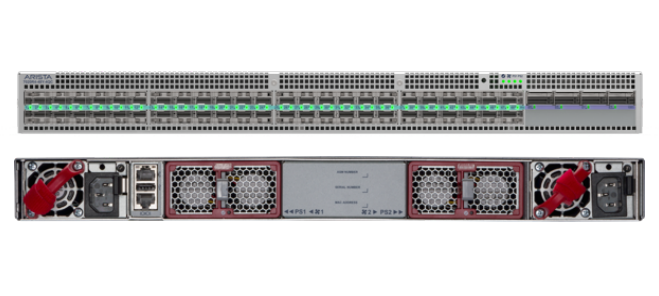

The Arista 7020R4M is a 1RU data centre switch router built for leaf, service provider access, internet peering and border routing roles. It runs Arista EOS and suits carrier edge VPN services, 5G and MEC deployments, metro aggregation and encrypted data centre interconnect.
This SKU provides 48 x 1G/10G/25G SFP ports and 4 x 100G QSFP uplinks, with 1.4 Tbps (2.8 Tbps full duplex) throughput and a 900 Mpps forwarding rate. A 2 GB packet buffer with VOQ architecture and latency from 3.8 us support demanding workloads. The 7020R4M variant adds TunnelSec wire-speed encryption covering MACsec, IPsec and VXLANsec on all port speeds. This -R model uses rear-to-front airflow with 2 x 500W hot-swap AC power supplies in 1+1 redundancy and two hot-swap fans in N+1 redundancy.
The SFP ports accept 1G, 10G and 25G optics, while the QSFP ports support 100G and 50G, and can break out to 25G. EOS feature licences use the Group 2 fixed-switch scheme, and encryption requires an EOS licence file.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- TunnelSec wire-speed AES-256-GCM encryption with MACsec, IPsec and VXLANsec
- Deep buffer VOQ architecture eliminating head-of-line blocking
- FlexRoute engine supporting the full Internet routing table in hardware
- Accelerated sFlow for hardware-assisted high-rate sampling
- PTP (IEEE 1588v2) Boundary and Transparent clock with SyncE
- EVPN-VXLAN, MLAG, ECMP, MPLS and Segment Routing
- LANZ microburst detection, DANZ and Inband Network Telemetry
- CloudVision integration, Zero Touch Provisioning and eAPI/JSON-RPC/NETCONF programmability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 1G/10G/25G SFP25, 4 x 100G QSFP
- Throughput: 1.4 Tbps (2.8 Tbps FDX)
- Forwarding rate: 900 Mpps
- Latency: From 3.8 us
- Packet buffer memory: 2 GB
- System memory: 16 GB
- SSD storage: 32 GB
- CPU: 4-core/8-thread x86
- Encryption: TunnelSec (MACsec, IPsec, VXLANsec)
- Precision timing: In-band PTP (IEEE 1588) and SyncE
- Management ports: 1 x 100/1000
- USB and RS232 ports: 1 USB, 1 RS232 (RJ45)
- Power supplies: 2 x PWR-511 500W hot-swap AC (1+1 redundant)
- Fans: 2 hot-swap (N+1 redundant), FAN-7011M
- Airflow direction: Rear to front
- Typical/Max power draw: 95 W / 113 W (excluding transceivers)
- Rack units: 1 U
- Size (W x H x D) incl. handles: 44 x 4.37 x 49.7 cm
- Weight: 9.62 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m
FAQs
Q: Does this switch need a licence for encryption?
A: Yes. TunnelSec encryption on Arista EOS is a licensed feature that requires a licence file. LIC-FIX-2-ENCR covers TunnelSec, IPsec and MACsec, while LIC-FIX-2-MACSEC covers MACsec only.
Q: What feature licences does it use?
A: It runs Arista EOS with Group 2 fixed-switch licences, such as LIC-FIX-2-E for enhanced L3, LIC-FIX-2-V for virtualisation and LIC-FIX-2-Z for monitoring and automation.
Q: What power supplies does this SKU use?
A: It uses 2 x PWR-511 hot-swap 500W AC power supplies in 1+1 redundancy, rated for 100-240V AC at 50/60Hz with IEC 60320 C14 inlets. Typical draw is 95 W and maximum is 113 W, excluding transceivers.
Q: What airflow direction does the -R model have?
A: The -R suffix indicates rear-to-front airflow, using the FAN-7011M-R fans and PWR-511-AC-BLUE power supplies. Check this suits your hot and cold aisle layout before ordering.
Q: What optics does it support?
A: The SFP ports take 1G, 10G and 25G optics, and the QSFP ports support 100G and 50G, plus breakout to 25G, depending on the transceiver or cable used.
Q: What rack mount kits are available?
A: Spare mounting options include KIT-7101 for tool-free 4-post racks, KIT-7101-LD-RK for deep-chassis 4-post racks and KIT-2POST-1U-NT for 2-post racks.
