Arista

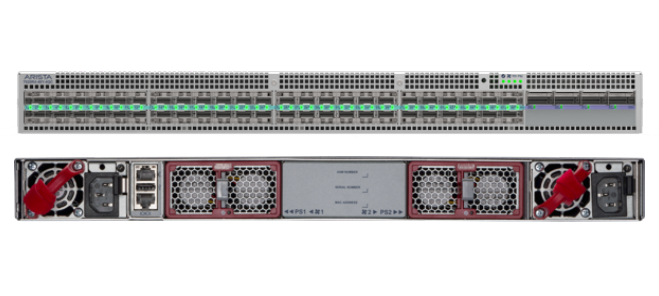

Arista DCS-7020R4M-48Y-4QC-F | 7020R4M 48-Port 25G Switch, 4x 100G, TunnelSec, 2x AC

SKU:DCS-7020R4M-48Y-4QC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7020R4M is a 1RU data centre switch router built for leaf and top-of-rack deployments, service provider access, Internet peering and edge routing. It runs Arista EOS and suits environments that need deep buffers, precision timing or line-rate encryption on DCI and WAN links.

This SKU provides 48 x 1G/10G/25G SFP ports and 4 x 100G QSFP uplinks, with 1.4 Tbps (2.8 Tbps FDX) throughput, 900 Mpps forwarding and a 2 GB deep packet buffer. It is the M model with Enhanced Encryption, adding TunnelSec wire-speed encryption (MACsec, IPsec and VXLANsec). Airflow is front-to-rear, and it is fitted with two hot-swap 500W AC power supplies in a 1+1 redundant configuration. Typical power draw is 95 W, with a maximum of 113 W excluding transceivers.

It works with FAN-7011M-F fan modules and PWR-511-AC-RED power supplies, and mounts with the KIT-7101 family of rack kits. SFP ports accept 1G/10G/25G optics, QSFP ports accept 100G optics with 50G/25G breakout support, and the switch is managed through Arista CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- TunnelSec wire-speed AES-256-GCM encryption: MACsec (IEEE 802.1AE), IPsec (RFC 4303) and VXLANsec on all interface speeds from 1G to 100G
- Deep packet buffer with virtual output queues per port to eliminate head-of-line blocking
- FlexRoute engine supports the full Internet routing table in hardware
- Supports MPLS, Segment Routing and EVPN-VXLAN open networking standards
- Inband Network Telemetry (INT), LANZ microburst detection and accelerated sFlow hardware sampling
- PTP (IEEE 1588v2) boundary and transparent clock with SyncE (ITU G.8261) for precision timing
- CloudVision integration, Zero Touch Provisioning and open APIs (JSON-RPC, NETCONF, eAPI)
- Arista EOS single binary image with full Linux shell access and bash, python and C++ extensibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 1G/10G/25G SFP, 4 x 100G QSFP
- Throughput: 1.4 Tbps (2.8 Tbps FDX)
- Packet forwarding: 900 Mpps
- Latency: From 3.8 us
- Packet buffer memory: 2 GB
- CPU: 4c8t x86
- System memory: 16 GB
- SSD storage: 32 GB
- Encryption: TunnelSec (MACsec, IPsec, VXLANsec)
- Precision timing: In-band PTP and SyncE
- Management ports: 1 x 100/1000
- USB and RS232 ports: 1 USB, 1 RS232 (RJ45)
- Power supplies: 2 x hot-swap 500W PWR-511 AC (1+1 redundant)
- Fans: 2 hot-swappable (N+1 redundant)
- Airflow direction: Front to rear
- Typical/max power draw: 95 W / 113 W (excludes transceivers)
- Form factor: 1RU
- Dimensions (W x H x D): 17.3 x 1.72 x 19.57 in (44 x 4.37 x 49.7 cm)
- Weight: 21.2 lbs (9.62 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m (10,000 ft)

FAQs

Q: Does this switch need a licence to enable encryption?
A: Yes. TunnelSec encryption is an EOS licensed feature that requires a licence file to enable. Arista offers LIC-FIX-2-MACSEC and LIC-FIX-2-ENCR for Enhanced Security Encryption (TunnelSec, IPsec and MACsec).

Q: Which EOS licence family does it use?
A: It uses the Group 2 fixed-switch licence family, including LIC-FIX-2-E (Enhanced L3), LIC-FIX-2-V (Virtualization), LIC-FIX-2-Z (Monitoring and Automation) and the FLX routing licences.

Q: What power supplies does it use?
A: It uses two PWR-511 AC power supplies, each rated at 500W with 100-240V AC input and 93% Platinum efficiency, in a 1+1 redundant arrangement. The DC variant PWR-511-DC is available as a spare.

Q: Which spare parts match this front-to-rear airflow SKU?
A: Use FAN-7011M-F fan modules and PWR-511-AC-RED power supplies so the airflow direction stays front-to-rear.

Q: What optics do the ports accept?
A: The SFP ports support 1G, 10G and 25G optics, and the QSFP ports support 100G, with 50G and 25G breakout depending on transceiver and cable capabilities.

Q: What rack mounting options are available?
A: Mounting options include KIT-7101, KIT-7101-RK, KIT-7101-LD-RK for deep chassis, KIT-2POST-1U-NT and the KIT-GND-EXT-1RU NEBS ground extender.
