Arista

Arista DCS-7020R4M-48TX-4QC-R | 7020R4 48-Port 10G RJ45 Switch, 4x 100G, TunnelSec

SKU:DCS-7020R4M-48TX-4QC-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7020R4M-48TX-4QC is a 1RU data centre switch router from the 7020R4 series, running Arista EOS. It suits data centre leaf roles, service provider access, secure internet peering, carrier edge VPN services, EVPN deployments for 5G, MEC and metro networks, and encrypted WAN or DCI transport. It is also a practical way to upgrade lower-speed 1G/10G RJ45 server access.

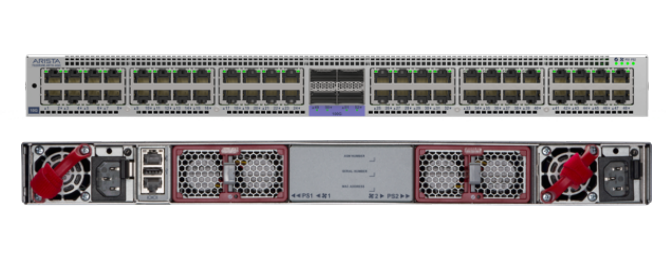

The front panel provides 48 x 1G/10G RJ45 ports and 4 x 100G QSFP uplinks, with throughput of 880 Gbps (1.76 Tbps full duplex), 900 Mpps packet forwarding and latency from 3.8 us. A 2 GB packet buffer with Virtual Output Queues per port avoids head-of-line blocking. The M variant adds TunnelSec line-rate AES-256-GCM encryption covering MACsec, IPsec and VXLANsec, which is an EOS licensed feature that needs a licence file. This SKU uses rear-to-front airflow with 2 x 500 W hot-swap AC power supplies in a 1+1 arrangement and two hot-swappable fans.

The -R airflow SKU pairs with spare parts FAN-7011M-R and PWR-511-AC-BLUE or PWR-511-DC-BLUE. Management is available through Arista CloudVision, and mounting options include KIT-7101, KIT-7101-RK, KIT-7101-LD-RK and KIT-2POST-1U-NT.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Deep packet buffer with Virtual Output Queues per port to eliminate head-of-line blocking
- TunnelSec line-rate AES-256-GCM encryption with MACsec, IPsec and VXLANsec on all interface speeds
- FlexRoute engine for full Internet routing table in hardware
- EVPN-VXLAN, MPLS and Segment Routing support
- Accelerated sFlow and Inband Network Telemetry (INT)
- LANZ microburst detection and DANZ precision data analysis
- Zero Touch Provisioning and CloudVision integration
- Open programmable APIs (JSON-RPC, NETCONF) with full Linux shell access
- Redundant hot-swap power supplies and fans, designed for NEBS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 1G/10G RJ45, 4 x QSFP 100G
- Maximum 100G ports: 4
- Maximum 50G ports: 8
- Maximum 25G ports: 16
- Maximum 1G/10G optical ports: 2 / 8
- Maximum total interfaces: 64
- Encryption: TunnelSec (MACsec, IPsec, VXLANsec)
- Throughput (full duplex): 880 Gbps (1.76 Tbps)
- Packet forwarding: 900 Mpps
- Latency: from 3.8 us
- CPU: 4c8t x86
- System memory: 16 GB
- Packet buffer memory: 2 GB
- SSD storage: 32 GB
- Precision timing: in-band PTP
- Management ports: 1 x 100/1000, 1 x USB, 1 x RS232 (RJ45)
- Power supplies: 2 x PWR-511 500 W AC, hot-swap, 1+1 redundant
- Fans: 2 x FAN-7011M, hot-swap, N+1 redundant
- Airflow: rear to front
- Rack units: 1 U
- Dimensions (W x H x D): 44 x 4.37 x 49 cm
- Weight: 10.25 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m
- EOS feature licences: Group 2

FAQs

Q: Does this switch need a licence for TunnelSec encryption?
A: Yes. Encryption is an EOS licensed feature that requires a licence file. LIC-FIX-2-ENCR covers TunnelSec, IPsec and MACsec, and LIC-FIX-2-MACSEC is also available. The switch runs Arista EOS under Group 2 fixed-switch feature licences.

Q: What power supplies does this SKU use?
A: It uses 2 x PWR-511 500 W hot-swap AC supplies in a 1+1 redundant arrangement, with 100-240V AC input and IEC C14 inlets. Rear-to-front airflow uses the PWR-511-AC-BLUE variant.

Q: Which spare fans and power supplies match this airflow direction?
A: For rear-to-front airflow the matching spares are FAN-7011M-R for the fan tray and PWR-511-AC-BLUE or PWR-511-DC-BLUE for the power supplies.

Q: How does the 7020R4M differ from the standard 7020R4?
A: The M variant adds TunnelSec wire-speed encryption covering MACsec, IPsec and VXLANsec. The -R suffix on this SKU indicates rear-to-front airflow with 2 AC power supplies.

Q: How is the switch managed?
A: It can be managed through Arista CloudVision, or directly through EOS using JSON-RPC and NETCONF APIs. A full Linux shell is available, and Zero Touch Provisioning is supported.
