Arista

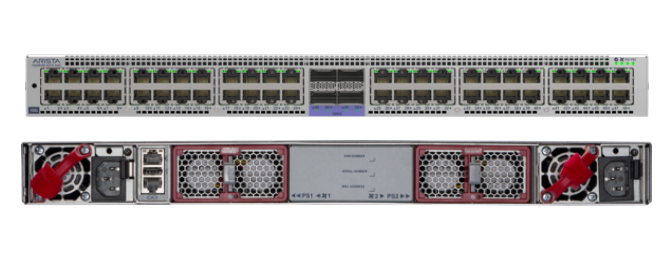

Arista DCS-7020R4M-48TX-4QC-F | 7020R4 48-Port 10G RJ45 Switch, 4x 100G, TunnelSec

SKU:DCS-7020R4M-48TX-4QC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7020R4 is a 1RU data centre switch router running Arista EOS, built for data centre leaf deployments, service provider access, secure Internet peering, carrier edge VPN services and DCI that needs wire-speed encryption. This M variant adds TunnelSec, covering MACsec, IPsec and VXLANsec.

It provides 48 x 1G/10G RJ45 ports and 4 x 100G QSFP uplinks, with a 2 GB deep packet buffer and a throughput of 880 Gbps (1.76 Tbps full duplex) at 900 Mpps. The QSFP ports support 100G, 50G or 25G breakout depending on the transceiver or cable used. This SKU has front-to-rear airflow and two hot-swap 500W AC power supplies in a 1+1 redundant arrangement, with N+1 redundant hot-swap fans.

EOS feature licences for this platform are Group 2. Encryption is a licensed EOS feature and needs a licence file, LIC-FIX-2-ENCR for enhanced security encryption or LIC-FIX-2-MACSEC for MACsec only. The switch is managed through Arista CloudVision and supports Zero Touch Provisioning.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Deep packet buffer with Virtual Output Queues to eliminate head-of-line blocking
- TunnelSec wire-speed AES-256-GCM encryption covering MACsec, IPsec and VXLANsec
- FlexRoute engine supporting the full Internet routing table in hardware
- Accelerated sFlow supporting 1:500 sampling at wire speed
- Inband Network Telemetry, LANZ microburst detection and DANZ
- EVPN-VXLAN, MPLS and Segment Routing support
- CloudVision integration and Zero Touch Provisioning
- Open programmable APIs (JSON-RPC, NETCONF) with Linux shell access
- Redundant hot-swap power supplies and fans, designed for NEBS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 1G/10G RJ45, 4 x QSFP 100G
- Maximum 100G ports: 4
- Maximum 50G ports: 8
- Maximum 25G ports: 16
- Maximum total interfaces: 64
- Encryption: TunnelSec (MACsec, IPsec, VXLANsec)
- Throughput (FDX): 880 Gbps (1.76 Tbps)
- Forwarding rate: 900 Mpps
- Latency: from 3.8 us
- CPU: 4-core/8-thread x86
- System memory: 16 GB
- Packet buffer memory: 2 GB
- SSD storage: 32 GB
- Precision timing: In-band PTP
- Management ports: 1 x 100/1000, 1 USB, 1 RS232 (RJ45)
- Power supplies: 2 x PWR-511 500W AC, hot-swap, 1+1 redundant
- Fans: 2 x hot-swap, N+1 redundant (FAN-7011M)
- Airflow direction: Front to rear
- Form factor: 1RU
- Dimensions (W x H x D) including handles: 44 x 4.37 x 49 cm
- Weight: 10.25 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m
- EOS feature licences: Group 2

FAQs

Q: Does the encryption need a separate licence?
A: Yes. TunnelSec, IPsec and MACsec are licensed EOS features that need a licence file. LIC-FIX-2-ENCR covers enhanced security encryption and LIC-FIX-2-MACSEC covers MACsec only. This platform uses Group 2 EOS licences.

Q: What power supplies does this SKU use?
A: It uses two PWR-511 AC 500W hot-swap supplies in a 1+1 redundant arrangement. Input is 100-240V AC at 50/60Hz through an IEC 60320 C14 connector, with 93% Platinum efficiency.

Q: What airflow direction does the -F suffix indicate?
A: The -F suffix means front-to-rear airflow. Fan modules are FAN-7011M-F for front-to-rear and FAN-7011M-R for rear-to-front.

Q: Can the 100G QSFP ports be broken out?
A: Yes. The QSFP ports support 100G, 50G or 25G operation depending on the transceiver or breakout cable used, giving up to 8 x 50G or 16 x 25G ports.

Q: Which mounting kits are available for this switch?
A: Compatible kits include KIT-7101, KIT-7101-RK, KIT-7101-LD-RK and KIT-2POST-1U-NT. KIT-GND-EXT-1RU is available as a ground extender kit for NEBS installations.
