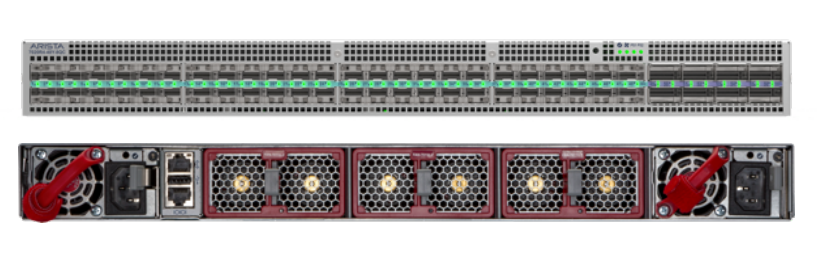

Arista DCS-7020R4-48Y-8QC-R | 7020R4 48-Port 25G Switch, 8x 100G, Rear-to-Front
SKU:DCS-7020R4-48Y-8QC-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7020R4 is a 1RU data centre switch router built for leaf, peering, border routing and carrier edge roles. It pairs 48 SFP25 ports with 8 QSFP100 uplinks and a 4 GB deep packet buffer using a virtual output queue architecture, which removes head-of-line blocking under bursty traffic. It runs Arista EOS and integrates with CloudVision.
The SFP25 ports support 1G, 10G and 25G, and the 8 QSFP100 ports deliver 100G uplinks, with up to 16 ports at 50G and 80 at 25G in breakout configurations. Throughput is 2 Tbps (4 Tbps full duplex), forwarding is 1 Bpps and latency starts from 3.8 us. System memory is 32 GB DRAM with a 4c8t x86 CPU and a 120 GB SSD. This SKU has rear-to-front airflow and two hot-swap AC power supplies in a 1+1 redundant arrangement, and it is the non-encryption model without TunnelSec.
It uses PWR-511 AC power supplies and FAN-7011M-R rear-to-front fan modules, with KIT-7101 series rack mount options. The FlexRoute engine holds a full Internet routing table in hardware, and EOS feature licensing follows Group 2 fixed-switch licences.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Deep buffer VOQ architecture eliminates head-of-line blocking
- FlexRoute engine supports a full Internet routing table in hardware
- MPLS, Segment Routing, LDP, RSVP-TE and SR-TE with FRR and TI-LFA
- EVPN-VXLAN support for data centre overlays
- SyncE and IEEE 1588 PTP precision timing
- Accelerated sFlow, LANZ microburst detection, DANZ and Inband Network Telemetry
- Zero Touch Provisioning and CloudVision integration
- Open APIs (JSON-RPC, NETCONF), Linux shell access and Python/C++ extensibility
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x SFP25 (1G/10G/25G), 8 x QSFP 100G
- Throughput: 2 Tbps (4 Tbps full duplex)
- Forwarding rate: 1 Bpps
- Latency: from 3.8 us
- Packet buffer: 4 GB deep buffer, VOQ architecture
- System memory: 32 GB DRAM
- CPU: 4c8t x86
- SSD storage: 120 GB
- Max 100G ports: 8
- Max 50G ports: 16
- Max 25G ports: 80
- Max 10G ports: 64
- Precision timing: in-band PTP and SyncE
- Management ports: 1 x 100/1000, 1 x USB, 1 x RS232 (RJ45)
- Power supplies: 2 x PWR-511 AC, 1+1 redundant, hot-swap
- PSU input: 100-240V AC, 50/60Hz, IEC 60320 C14
- Fans: 3 hot-swap, N+1 redundant (FAN-7011M)
- Airflow: rear to front
- Power draw: 115W typical, 203W maximum (excluding transceivers)
- Form factor: 1RU
- Dimensions (WxHxD) incl. handles: 44 x 4.37 x 49.7 cm
- Weight: 9.84 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Operating altitude: up to 3,000 m
FAQs
Q: What licensing does this switch use?
A: It runs Arista EOS with Group 2 fixed-switch feature licences, such as LIC-FIX-2-E for enhanced Layer 3. This is the non-M model, so it does not include TunnelSec encryption hardware.
Q: What power supplies does it use?
A: Two PWR-511 AC power supplies rated 500W each, 100-240V AC, in a 1+1 redundant hot-swap arrangement. Typical draw is 115W and maximum is 203W, excluding transceivers.
Q: What airflow direction does this SKU have?
A: Rear to front. Matching spares are the FAN-7011M-R fan module and the PWR-511-AC-BLUE power supply.
Q: Which rack mount kits suit this switch?
A: Options include KIT-7101, KIT-7101-RK, KIT-7101-LD-RK and KIT-2POST-1U-NT, plus KIT-GND-EXT-1RU for the NEBS ground extender.
Q: How does it differ from the 7020R4M variants?
A: The 7020R4M variants add TunnelSec encryption hardware. This SKU is the non-encryption model.
