Arista

Arista DCS-7020R4-48Y-8QC-F | 7020R4 48x 25G SFP28 Switch, 8x 100G QSFP, 2x AC, Front-to-Rear

SKU:DCS-7020R4-48Y-8QC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

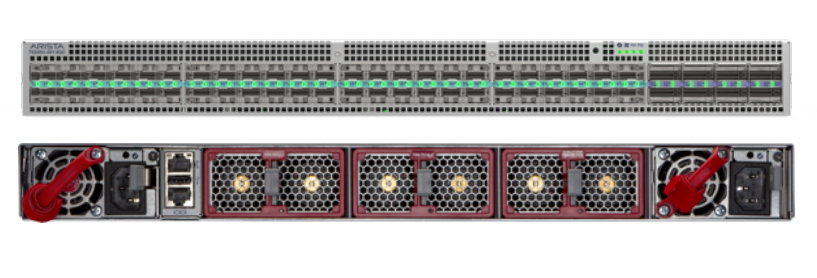

The Arista 7020R4 is a 1RU data centre switch router built for leaf, service provider access, peering and border routing roles. It pairs 48 SFP ports with eight 100G QSFP uplinks and runs Arista EOS, with a deep packet buffer that suits bursty, latency-sensitive traffic. It also fits data centre interconnect, carrier edge VPN services, metro aggregation and broadcast or research networks.

This SKU has 48 x 1G/10G/25G SFP ports and 8 x 100G QSFP ports, with breakout to 50G, 25G or 10G on the 100G ports depending on the optic or cable used. It delivers 2 Tbps throughput (4 Tbps full duplex) and 1 Bpps forwarding with latency from 3.8 us. The 4 GB packet buffer uses a virtual output queue architecture, backed by 32 GB of system memory and a 120 GB SSD. This is the front-to-rear airflow variant with two hot-swap AC power supplies in 1+1 redundancy and three hot-swap fans in N+1 redundancy. It does not include the encryption capability found on the 7020R4M variant.

EOS feature licences are Group 2 fixed-switch licences, covering enhanced Layer 3, VXLAN, zero touch provisioning, FlexRoute scale and optional encryption. Typical power draw is 115 W, with a 203 W maximum. It uses PWR-511 power supplies and FAN-7011M fan modules, and is managed through Arista CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Deep 4 GB packet buffer with per-port virtual output queues to avoid head-of-line blocking
- FlexRoute engine for full Internet routing table support in hardware
- Synchronous Ethernet and IEEE 1588 PTP with boundary and transparent clock, 8275.1 and 8275.2 profiles
- EVPN-VXLAN, MPLS, Segment Routing, LDP, RSVP-TE and SR-TE with FRR and TI-LFA
- Accelerated sFlow with 1:500 sampling at wire speed
- LANZ microburst detection, DANZ and Inband Network Telemetry
- CloudVision integration, zero touch provisioning, JSON-RPC and NETCONF APIs
- Arista EOS with a single 64-bit binary image, stateful fault containment and full Linux shell access
- Redundant hot-swap power supplies above 93% efficiency, designed for NEBS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x SFP25 (1G/10G/25G) and 8 x QSFP 100G
- Maximum 100G ports: 8
- Maximum 50G ports: 16
- Maximum 25G ports: 80
- Maximum 10G ports: 64
- Maximum 1G ports: 52
- Throughput (full duplex): 2 (4) Tbps
- Forwarding rate: 1 Bpps
- Latency: from 3.8 us
- Packet buffer memory: 4 GB
- System memory: 32 GB
- CPU: 4c8t x86
- SSD storage: 120 GB
- Precision timing: in-band PTP and SyncE
- Management ports: 1 x 100/1000
- Console and USB: 1 RS232 (RJ45), 1 USB
- Power supplies: 2 x hot-swap PWR-511, AC, 1+1 redundant
- AC input: 100-240V AC, 50/60Hz, 500W, 93% Platinum efficiency, IEC 60320 C14
- Fans: 3 x hot-swap (N+1), FAN-7011M
- Airflow: front to rear
- Typical / maximum power draw: 115 W / 203 W (excludes transceivers)
- Dimensions (W x H x D) including handles: 44 x 4.37 x 49.7 cm
- Rack units: 1 RU
- Weight: 9.84 kg
- Operating temperature: 0 to 40 C
- Operating altitude: 0 to 3,000 m

FAQs

Q: Does this switch need an EOS feature licence?
A: The 7020R4 runs Arista EOS and uses Group 2 fixed-switch licences ordered separately. Options include LIC-FIX-2-E for enhanced Layer 3, LIC-FIX-2-V for VXLAN, LIC-FIX-2-Z for ZTP and telemetry, and LIC-FIX-2-FLX for large route scale, EVPN and Segment Routing.

Q: What power supplies does this model use?
A: It uses two hot-swap PWR-511 500W AC supplies in 1+1 redundancy, taking 100-240V AC at 50/60Hz through IEC 60320 C14 inlets. Typical draw is 115 W and maximum draw is 203 W.

Q: Which airflow direction does this SKU have?
A: This is the front-to-rear airflow model. It uses PWR-511-AC-RED power supplies and FAN-7011M-F fan modules to match that airflow.

Q: Can the 100G QSFP ports be split into lower speeds?
A: Yes. The 100G ports support breakout to 50G, 25G or 10G, subject to the transceiver and cable used.

Q: Does this SKU support encryption?
A: No encryption is built into this SKU. TunnelSec is available on the 7020R4M variant, and an ENCR licence is available for this model.

Q: What rack mounting options are available?
A: Mounting kits include KIT-7101, KIT-7101-RK and KIT-7101-LD-RK for 4-post racks, KIT-2POST-1U-NT for 2-post racks, and KIT-GND-EXT-1RU for NEBS grounding.
