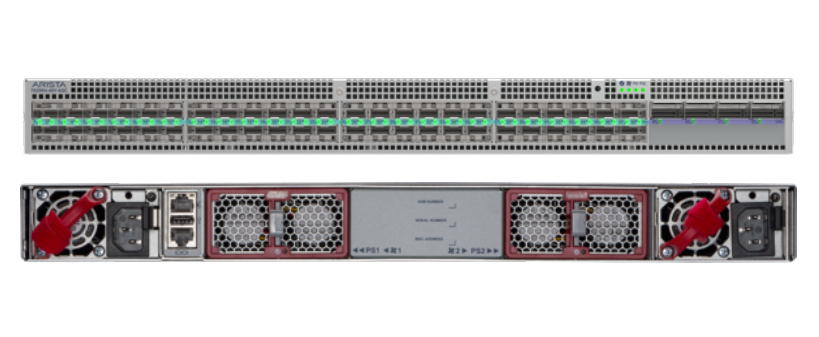

Arista DCS-7020R4-48Y-4QC-R | 7020R4 48-Port 25G SFP Switch, 4x 100G, Rear-to-Front
SKU:DCS-7020R4-48Y-4QC-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7020R4 is a 1RU data centre switch router built for leaf, service provider access and high-performance edge roles. It uses the deep-buffer R4 architecture and runs Arista EOS, with a virtual output queue design that avoids head-of-line blocking. This 7020R4-48Y-4QC model is the standard non-encryption version with rear-to-front airflow.
It provides 48 SFP ports supporting 1G, 10G and 25G, plus 4 QSFP uplinks at 100G. Throughput is 1.4 Tbps (2.8 Tbps full duplex) with packet forwarding of 900 Mpps, a 2 GB packet buffer and 16 GB of system memory. Power comes from two hot-swap 500W AC supplies in a 1+1 redundant arrangement, with typical draw of 95 W and a maximum of 113 W. The FlexRoute engine holds the full Internet routing table in hardware, and in-band PTP and SyncE support precision timing. Group 2 EOS feature licences apply, and TunnelSec is not included on this non-M model.
The switch uses PWR-511 power supplies and FAN-7011M fan trays, and airflow must be matched across supplies and fans. Rack mounting is available through the KIT-7101 range and the KIT-2POST-1U-NT two-post kit. Ports accept SFP, SFP+ and SFP25 optics and QSFP100 optics and breakout cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Deep-buffer virtual output queue architecture that avoids head-of-line blocking
- FlexRoute engine supporting the full Internet routing table in hardware
- Synchronous Ethernet and IEEE 1588 PTP with Boundary and Transparent clock, 8275.1 and 8275.2 profiles
- EVPN-VXLAN, MPLS, Segment Routing, L2 MLAG and L3 ECMP design support
- Accelerated sFlow for high-rate flow sampling
- LANZ microburst detection and DANZ precision data analysis
- Inband Network Telemetry (INT)
- CloudVision management and Zero Touch Provisioning (ZTP)
- Programmable APIs (JSON-RPC, NETCONF) and full Linux shell access via Arista EOS
- Designed for NEBS with redundant hot-swap power and fans
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x SFP25 (1G/10G/25G), 4 x QSFP 100G
- Maximum 100G ports: 4
- Maximum 50G ports: 8
- Maximum 25G ports: 64
- Maximum 10G ports: 56
- Maximum 1G ports: 50
- Maximum total interfaces: 64
- Throughput: 1.4 Tbps (2.8 Tbps full duplex)
- Packet forwarding: 900 Mpps
- Latency: from 3.8 us
- Packet buffer: 2 GB
- System memory: 16 GB
- CPU: 4-core, 8-thread x86
- SSD storage: 32 GB
- Precision timing: in-band PTP and SyncE
- Management port: 1 x 100/1000
- USB and serial: 1 x USB, 1 x RS232 (RJ45)
- Power supplies: 2 x PWR-511 500W hot-swap, 1+1 redundant
- PSU input (AC): 100-240V AC, 50/60Hz, IEC 60320 C14
- Fans: 2 x FAN-7011M hot-swap, N+1 redundant
- Airflow: rear to front
- Typical / maximum power draw: 95 W / 113 W
- Form factor: 1RU, 17.3 x 1.72 x 19.57 in (44 x 4.37 x 49.7 cm)
- Weight: 9.62 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: up to 3,000 m
- Encryption: none
FAQs
Q: Which licences does this switch use?
A: It runs Arista EOS and uses Group 2 fixed-switch feature licences. Options include LIC-FIX-2-E for Enhanced L3, LIC-FIX-2-V for Virtualization and LIC-FIX-2-Z for Monitoring and Automation.
Q: Does this model support TunnelSec encryption?
A: No. This is the standard non-M model, so TunnelSec (MACsec, IPsec and VXLANsec) is not included. Encryption is available on the 7020R4M variant.
Q: What power supplies and fans does it use?
A: It uses two PWR-511 500W hot-swap power supplies in a 1+1 redundant arrangement and FAN-7011M fan trays. Airflow must be matched across supplies and fans, and the -R SKU is rear-to-front.
Q: What can be fitted to the SFP and QSFP ports?
A: The ports accept SFP, SFP+ and SFP25 optics and QSFP100 optics and breakout cables, subject to transceiver and cable capability.
Q: How does this SKU differ from other 7020R4 models?
A: This SKU has 48 x 25G SFP ports, 4 x 100G QSFP uplinks, rear-to-front airflow, two AC power supplies and no encryption. The 8QC model has a larger 4 GB packet buffer.
