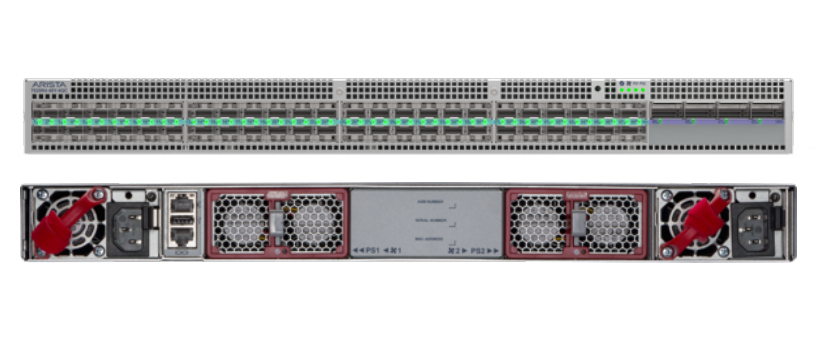

• Arista dcs-7020r4-48y-4qc-f silver server rack back side with 48-port 25g switch and 4x 100g qsfp ports
1 1

Arista

Arista DCS-7020R4-48Y-4QC-F | 7020R4 48-Port 25G Switch, 4x 100G QSFP

DCS-7020R4-48Y-4QC-F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista DCS-7020R4-48Y-4QC-F is a high-performance data center switch router engineered for demanding leaf, spine, and aggregation deployments. With 48x 25GbE SFP28 ports and 4x 100GbE QSFP uplinks, it delivers 2.8 Tbps switching capacity and 900 Mpps forwarding performance in a compact 1U form factor. Running Arista EOS with Virtual Output Queueing architecture, deep packet buffers, and support for EVPN-VXLAN, MPLS, Segment Routing, and FlexRoute, this switch is ideal for software-defined data center fabrics, service provider networks, and high-throughput enterprise cores.

Features

Virtual Output Queueing (VOQ) architecture with 2GB deep packet buffers for deterministic, lossless forwarding
- Non-blocking architecture with 2.8 Tbps switching capacity and 900 Mpps forwarding rate
- FlexRoute engine supporting Internet-scale routing with up to 2.5 million routes
- Comprehensive Layer 2 features: VLAN, STP/RSTP/MSTP, MLAG for active-active redundancy
- Advanced Layer 3 routing: BGP, OSPF, ISIS, ECMP with 128-way load balancing
- EVPN-VXLAN overlay networking for software-defined data center fabrics
- MPLS and Segment Routing support for service provider networks
- Precision Time Protocol (PTP) IEEE 1588v2 for time synchronization
- Accelerated sFlow and comprehensive streaming telemetry for real-time monitoring
- Integrated packet capture and multi-port mirroring (DANZ) for network visibility
- Advanced QoS with flexible queuing and scheduling
- IPv4/IPv6 dual-stack with extensive ACL and security features
- Arista CloudVision integration for centralized management and automation
- Zero Touch Provisioning (ZTP) and Advanced Event Monitoring (AEM)
- Hot-swappable redundant power supplies and fans
- Front-to-rear airflow for standard data center cooling
- Consistent Arista EOS across all platforms for simplified operations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 25GbE SFP28 ports
- 4x 100GbE QSFP uplink ports
- Switching capacity: 2.8 Tbps
- Forwarding rate: 900 Mpps
- Memory: 16 GB RAM
- Packet buffer: 2 GB deep buffer with Virtual Output Queueing (VOQ)
- Front-to-rear airflow (port-to-fan)
- Dual redundant AC power supplies (2x)
- Form factor: 1U rack-mountable
- Management: CLI, Arista CloudVision, eAPI, OpenConfig, SNMP
- Operating System: Arista EOS
- FlexRoute engine: Up to 2.5M routes
- Layer 2/3 switching with wire-speed performance

FAQs

Q: What deployment scenarios is the DCS-7020R4-48Y-4QC-F best suited for?
A: This switch is designed for data center leaf/spine architectures, service provider aggregation, and high-performance enterprise cores requiring high-density 25GbE connectivity with 100GbE uplinks. It excels in software-defined data center fabrics using EVPN-VXLAN overlays, MPLS networks, and environments demanding deep buffers for lossless forwarding.

Q: Does this model support MACsec or enhanced encryption?
A: The DCS-7020R4-48Y-4QC-F is the standard version without enhanced encryption. For hardware-accelerated MACsec and TunnelSec wire-speed encryption at Layer 2 and Layer 3, select the DCS-7020R4M variant which includes the 'M' designation for enhanced encryption capabilities.

Q: What does the 'F' suffix in the SKU indicate?
A: The 'F' designates front-to-rear airflow, where cool air enters from the port side and exhausts through the fan side. This is the standard airflow direction for hot-aisle/cold-aisle data center rack deployments where cold air is supplied at the front of the rack.

Q: What routing protocols and advanced features are supported?
A: Running Arista EOS, the switch supports comprehensive Layer 2/3 protocols including BGP, OSPF, ISIS, MPLS, Segment Routing, EVPN-VXLAN, PIM multicast, MLAG, ECMP, VPN services, precision timing (PTP), and FlexRoute for internet-scale routing tables up to 2.5M routes. It also includes streaming telemetry and Accelerated sFlow for real-time monitoring.

Q: Can this switch be managed with Arista CloudVision?
A: Yes, the DCS-7020R4-48Y-4QC-F integrates natively with Arista CloudVision for centralized provisioning, network-wide visibility, streaming telemetry, change management, and automation. It also supports Zero Touch Provisioning (ZTP), eAPI, OpenConfig, and traditional CLI/SNMP management.
