Arista DCS-7020R4-48TX-4QC-R | 7020R4 48-Port 10G RJ45 Switch, 4x 100G, Rear-to-Front
SKU:DCS-7020R4-48TX-4QC-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

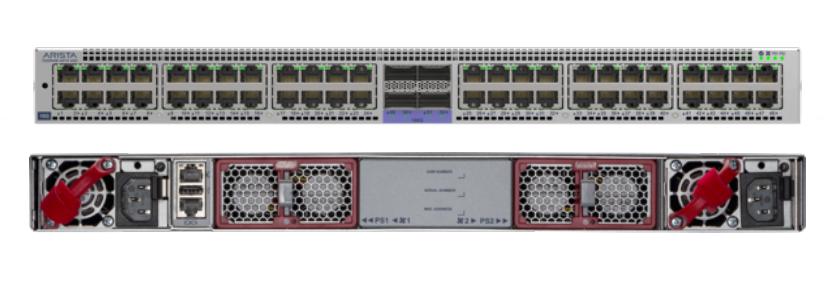

The Arista 7020R4 is a 1RU data centre switch router built for data centre leaf, service provider access and high-end edge applications such as broadcast media and advanced research, where deep buffers and 1G/10G RJ45 copper access are needed alongside 100G uplinks. It runs Arista EOS and is a non-encrypted model.
This SKU provides 48 x 1G/10G RJ45 ports and 4 x 100G QSFP ports, which can break out to 8 x 50G or 16 x 25G. It delivers 880 Gbps (1.76 Tbps full duplex) of throughput and a 900 Mpps forwarding rate, with a 2 GB packet buffer, 16 GB of system memory, a 4c8t x86 CPU and a 32 GB SSD. Latency starts from 3.8 us, and in-band PTP provides precision timing. It uses rear-to-front airflow with two hot-swap AC power supplies in a 1+1 redundant configuration, each rated at 500W with 100-240V AC input.
Features are enabled through Arista Group 2 fixed-switch feature licences. Spare parts that work with this SKU include the FAN-7011M-R fan tray and the PWR-511-AC-BLUE and PWR-511-DC-BLUE power supplies, plus the KIT-7101 family of rack kits.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Deep packet buffer with virtual output queues per port to avoid head-of-line blocking
- FlexRoute engine for Internet-scale routing tables in hardware
- EVPN-VXLAN, MPLS and Segment Routing support
- Open programmable APIs including JSON-RPC and NETCONF
- Accelerated sFlow with 1:500 sampling at wire speed
- Inband Network Telemetry (INT), LANZ and DANZ monitoring
- Zero Touch Provisioning and CloudVision integration
- Full Linux shell access with extensible EOS (bash, python, C++)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 1G/10G RJ45, 4 x 100G QSFP
- Breakout: up to 8 x 50G or 16 x 25G on the QSFP ports
- Max total interfaces: 64
- Throughput: 880 Gbps (1.76 Tbps FDX)
- Forwarding rate: 900 Mpps
- Latency: from 3.8 us
- Packet buffer memory: 2 GB
- System memory: 16 GB
- CPU: 4c8t x86
- SSD storage: 32 GB
- Precision timing: in-band PTP
- Management port: 1 x 100/1000
- Console and USB: 1 RS232 (RJ45), 1 USB
- Encryption: none
- Airflow: rear to front
- Power supplies: 2 x PWR-511 AC, 500W, 1+1 redundant
- PSU input (AC): 100-240V AC, 50/60Hz, IEC 60320 C14
- Fan tray: FAN-7011M, 2 hot-swappable fans (N+1)
- Form factor: 1RU
- Dimensions (W x H x D): 44 x 4.37 x 49 cm
- Weight: 10.25 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: up to 3,000 m
FAQs
Q: What licensing does the 7020R4 use?
A: It runs Arista EOS and uses Group 2 fixed-switch feature licences such as LIC-FIX-2-E, -V, -V2, -Z, -FLX-L and -FLX. Encryption licences apply only to the 7020R4M variants.
Q: Does this model include encryption?
A: No. This is the non-M model without encryption. TunnelSec is available only on the 7020R4M variant.
Q: What power supplies does it use?
A: It uses two PWR-511 AC power supplies, each 500W with 100-240V AC, 50/60Hz input and an IEC C14 inlet, in a 1+1 redundant configuration.
Q: Can the 100G QSFP ports break out to lower speeds?
A: Yes. The four 100G QSFP ports support breakout to 50G and 25G, giving up to 8 x 50G or 16 x 25G ports.
Q: What spare parts and rack kits match this SKU?
A: For rear-to-front airflow, use the FAN-7011M-R fan tray and the PWR-511-AC-BLUE or PWR-511-DC-BLUE power supplies. Rack kits include KIT-7101, KIT-7101-RK, KIT-7101-LD-RK and KIT-2POST-1U-NT.
