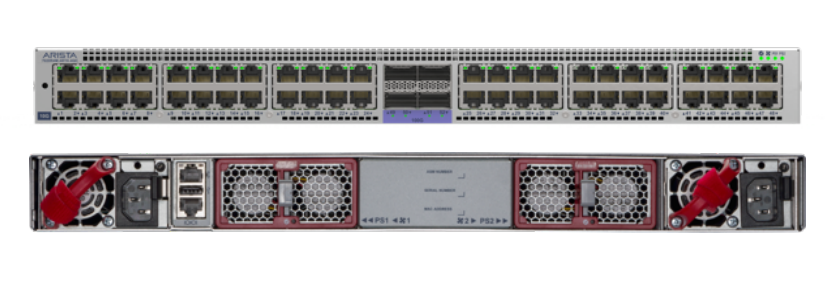

Arista DCS-7020R4-48TX-4QC-F | 7020R4 48-Port 10G RJ45 Switch, 4x 100G, Front-to-Rear
SKU:DCS-7020R4-48TX-4QC-F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7020R4 is a 1RU data centre switch router built for high-performance edge, data centre leaf, service provider access and secure Internet peering roles. It also suits carrier edge VPN services, EVPN-based 5G and metro designs, and demanding desktop environments such as broadcast media and advanced research. It runs Arista EOS and uses a deep-buffer Virtual Output Queue architecture with the FlexRoute engine for Internet-scale routing.
This SKU provides 48 x 1G/10G RJ45 ports and 4 x 100G QSFP uplinks, with front-to-rear airflow and two hot-swap AC power supplies in a 1+1 redundant arrangement. Throughput is 880 Gbps (1.76 Tbps FDX) at 900 Mpps, backed by a 2 GB packet buffer, latency from 3.8 us, 16 GB of system memory and a 32 GB SSD. The platform falls under the EOS Group 2 feature licences. Hardware-enforced encryption is only available on the 7020R4M variant, not this model.
It works with FAN-7011M-F fan modules and PWR-511-AC-RED power supplies for front-to-rear airflow. Mounting options include the KIT-7101, KIT-7101-RK, KIT-7101-LD-RK and KIT-2POST-1U-NT kits, plus the KIT-GND-EXT-1RU NEBS ground extender.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Deep-buffer Virtual Output Queue (VOQ) architecture eliminates head-of-line blocking
- FlexRoute engine supports the full Internet routing table in hardware
- EVPN-VXLAN, MPLS, Segment Routing and carrier-grade routing support
- In-band PTP (IEEE 1588) precision timing
- Accelerated sFlow for hardware-based flow sampling
- LANZ microburst detection, DANZ and Inband Network Telemetry (INT)
- CloudVision integration and Zero Touch Provisioning (ZTP)
- Open programmable APIs (JSON-RPC, NETCONF, eAPI) with full Linux shell access
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 1G/10G RJ45, 4 x 100G QSFP
- Maximum 100G ports: 4
- Maximum 50G ports: 8
- Maximum 25G ports: 16
- Maximum 1G/10G optical ports: 2 / 8
- Maximum 1G/10G RJ45 ports: 48
- Maximum total interfaces: 64
- Throughput (FDX): 880 Gbps (1.76 Tbps)
- Forwarding rate: 900 Mpps
- Latency: From 3.8 us
- CPU: 4c8t x86
- System memory: 16 GB
- Packet buffer memory: 2 GB
- SSD storage: 32 GB
- Precision timing: In-band PTP
- Management ports: 1 x 100/1000, 1 USB, 1 RS232 (RJ45)
- Power supplies: 2 x hot-swap PWR-511 AC (1+1 redundant), 500W output, 100-240V AC, 50/60Hz, IEC C14 inlet, 93% Platinum efficiency
- Fans: 2 hot-swappable (N+1 redundant), FAN-7011M
- Airflow direction: Front to rear
- Form factor: 1RU
- Dimensions (W x H x D) incl. handles: 44 x 4.37 x 49 cm
- Weight: 10.25 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m
FAQs
Q: Which software and licence group does this switch use?
A: It runs Arista EOS and falls under the EOS Group 2 feature licences, such as LIC-FIX-2-E for Enhanced L3 and LIC-FIX-2-Z for Monitoring and Automation. Hardware-enforced encryption (TunnelSec, MACsec, IPsec) is only available on the 7020R4M variant.
Q: What power supplies does it use?
A: It uses two hot-swap PWR-511 AC power supplies in a 1+1 redundant arrangement. Each is rated at 500W output, accepts 100-240V AC at 50/60Hz through an IEC C14 inlet, and has 93% Platinum efficiency.
Q: Which spares and mounting kits does it work with?
A: Compatible spares are the FAN-7011M-F fan module and the PWR-511-AC-RED power supply, both front-to-rear airflow. Mounting options include KIT-7101, KIT-7101-RK, KIT-7101-LD-RK, KIT-2POST-1U-NT and the KIT-GND-EXT-1RU NEBS ground extender.
Q: How does the -F SKU differ from other 7020R4 variants?
A: The -F suffix means front-to-rear airflow, and this SKU has two AC power supplies. The 48x 1G/10G RJ45 and 4x 100G QSFP port layout is the same across the 48TX-4QC configuration.
Q: Can the RJ45 ports run at 1G as well as 10G?
A: Yes. All 48 RJ45 ports support both 1G and 10G speeds.
