Arista

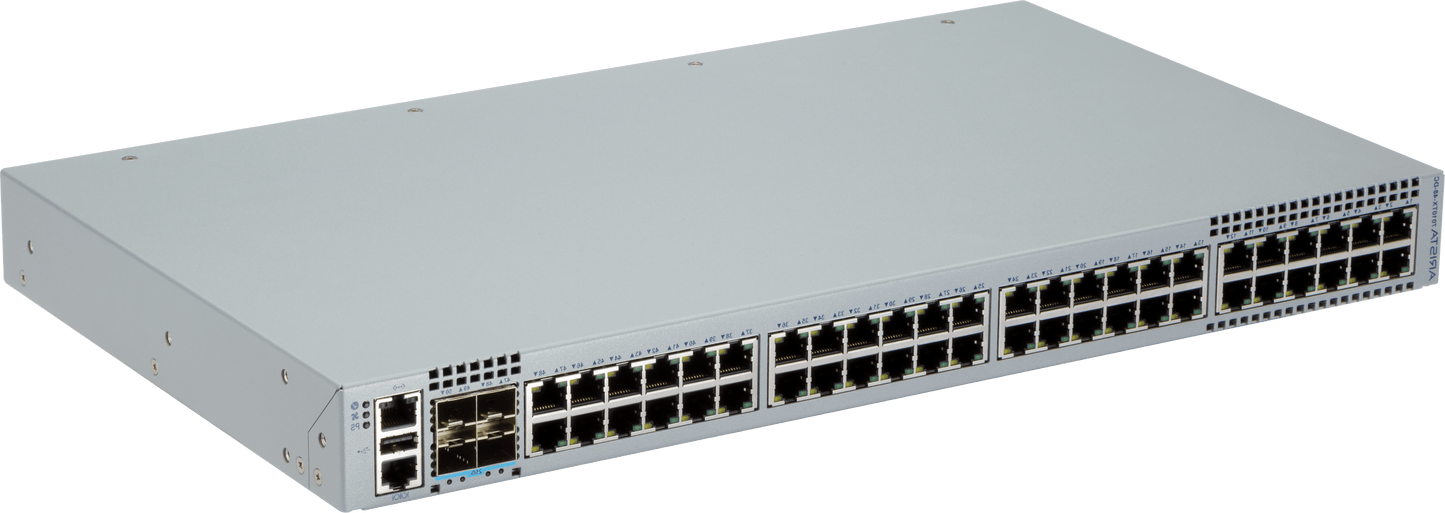

Arista DCS-7010TX-48C-R | 7010X 48-Port Gigabit Switch, 4x 25G SFP28, 2xAC

SKU:DCS-7010TX-48C-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010X 48C is a 1RU data centre switch built for server-edge 1GbE leaf roles in leaf-spine designs, top-of-rack switching, campus access and high-performance out-of-band management networks. It runs Arista EOS and provides non-blocking Layer 2 and Layer 3 forwarding.

This model has 48 10/100/1000 RJ45 ports and 4 SFP ports that support 1G, 10G and 25G operation. Throughput is 296 Gbps at 220 Mpps, with latency from 2.8 microseconds and a 4 MB shared packet buffer. The 48C variant carries 8GB of system memory and 8GB of flash, with dual integrated AC power supplies in a 1+1 redundant arrangement. Airflow on this SKU is rear-to-front, delivered by a hot-swappable reversible fan module.

The base EOS feature set is bundled with the switch. Optional perpetual feature licences for EOS licence group G2 add routing and VXLAN or EVPN capability, and the switch requires EOS 4.31.1 or later. It works with Arista 7050X3 and 7300X3 spine switches and with CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Arista EOS, a single-binary modular network OS with a state-sharing architecture
- Wire-speed Layer 2 and Layer 3 forwarding with VXLAN and EVPN support
- 64-way ECMP and MLAG
- Fully shared dynamic 4 MB packet buffer
- LANZ microburst detection, sFlow and port mirroring
- Zero Touch Provisioning and CloudVision support
- 1+1 redundant AC power supplies and a hot-swappable reversible fan module
- Bash, Python, C++, Go and OpenConfig extensibility with full Linux shell access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Mb RJ45
- Uplink ports: 4 x 1/10/25GbE SFP/SFP+
- Throughput: 296 Gbps
- Forwarding rate: 220 Mpps
- Latency: from 2.8 microseconds
- Packet buffer: 4 MB
- CPU: Dual-Core x86
- System memory: 8 GB
- Flash storage: 8 GB
- Management ports: 1 x 100/1000, 1 x RS-232 (RJ45), 1 x USB
- Power supplies: 2 x AC (1+1 redundant)
- Input voltage: 100-240V AC, 50/60 Hz
- Power draw: 83 W typical, 95 W maximum
- Airflow: rear-to-front, hot-swappable reversible fan (FAN-7010X)
- Operating noise: 46.5 dBA typical, 56.5 dBA maximum
- MAC addresses: 64K
- IPv4 host routes: 32K
- IPv6 host routes: 16K
- IPv4 LPM routes: 16K
- ECMP: 64-way, 256 groups
- Operating temperature: 0 to 40 C
- Dimensions (W x H x D): 43.9 x 4.35 x 27.6 cm
- Weight: 3.9 kg
- Minimum EOS: 4.31.1
- EOS licence group: G2

FAQs

Q: Does this switch need a licence?
A: The base EOS feature set is bundled with the switch. Optional perpetual feature licences for EOS licence group G2 are available, including LIC-FIX-G2-E for OSPF, ISIS, BGP and PIM, and LIC-FIX-G2-FLX-L for EVPN and VXLAN. The switch requires EOS 4.31.1 or later.

Q: How is this SKU different from other 7010TX-48C variants?
A: The -R suffix denotes rear-to-front airflow. This 48C variant has 8GB of system memory and dual integrated AC power supplies in a 1+1 redundant arrangement.

Q: What optics and cables work in the SFP ports?
A: The four SFP ports accept 1G, 10G and 25G optics and cables, including 10GBASE-CR, AOC, SR, LR, ER, ZR and T, and 25GBASE-CR, AOC, SR and LR. Check Arista's transceiver matrix for the minimum EOS release each module requires.

Q: What power does the switch need?
A: It has two integrated AC power supplies running from 100-240V AC at 50/60 Hz via IEC 60320 C14 inlets. Typical draw is 83 W and maximum draw is 95 W.

Q: What is the fan module and rack kit part number?
A: The hot-swappable fan module is FAN-7010X. Spare rack kits are KIT-7010 for 2-post, KIT-7010-4POST for 4-post and KIT-7010-2POST-23 for 2-post mounting.
