Arista

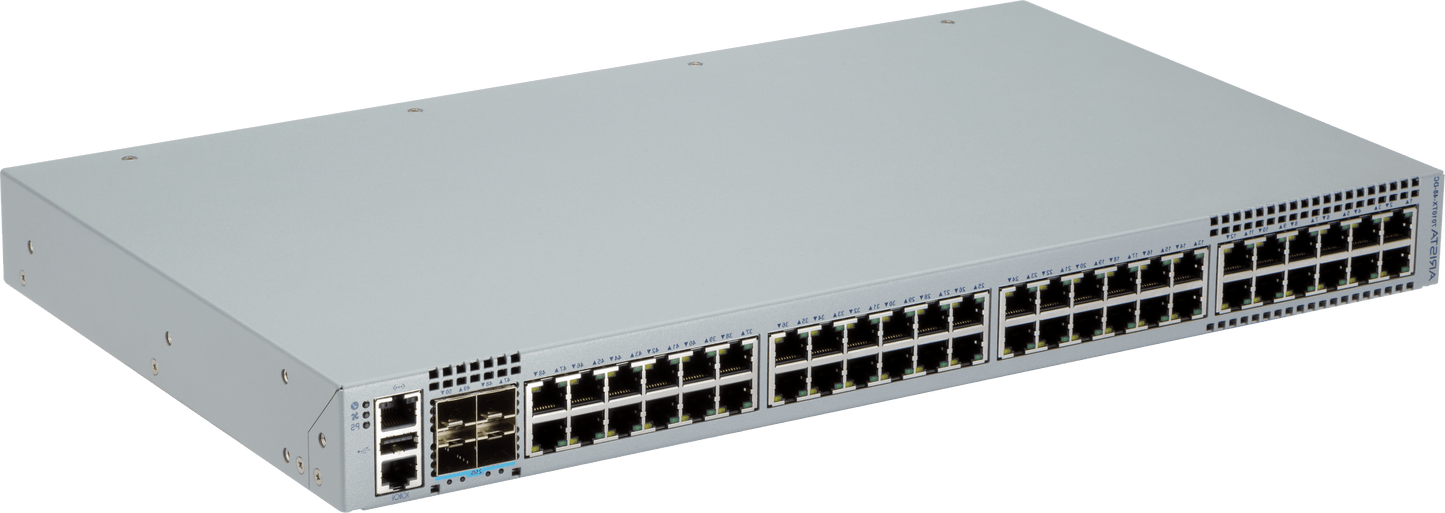

Arista DCS-7010TX-48C-F | 7010X 48-Port Gigabit Switch, 4x 25G SFP, Front-to-Rear

SKU:DCS-7010TX-48C-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010X is a 1RU switch built for top-of-rack leaf duty in data centres, campus access and out-of-band management networks. It also suits server IPMI management networks and 1G server access beneath 7050X3 or 7300X3 spines. This 48C model runs Arista EOS with 8 GB of system memory and requires EOS 4.31.1 or later.

It provides 48 x 10/100/1000 Mb RJ45 ports and 4 SFP ports that run at 1G, 10G or 25G for uplinks. Throughput is 296 Gbps with 220 Mpps forwarding and a fully shared 4 MB packet buffer. This -F variant uses front-to-rear airflow and has two integrated AC power supplies in a 1+1 redundant arrangement, with typical draw of 83 W and a maximum of 95 W. The fan module is hot-swappable and field-reversible.

The SFP ports accept 10GBASE-CR, AOC, SR, LR, ER and ZR optics at 10G, plus 1GbE SX/LX and 100/1000BASE-T modules. At 25GbE they take 25GBASE-CR, AOC, SR and LR modules. EOS licence group G2 applies, with optional Enhanced and FLX-Lite routing licences available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Low power consumption at 0.3 W/Gbps
- Redundant 1+1 AC power supplies and a redundant hot-swap fan module
- Field-reversible fan module for front-to-rear or rear-to-front cooling
- Up to 64K MAC entries and up to 32K IPv4/IPv6 routes
- 64-way ECMP and 64-port MLAG
- VXLAN and EVPN support
- PTP support
- CloudVision, Zero Touch Provisioning, Smart System Upgrade, LANZ microburst detection, sFlow and VM Tracer
- Arista EOS single binary image with Linux shell, Bash, Python, C++, Go and OpenConfig extensibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Mb RJ-45
- Uplinks: 4 x 1/10/25GbE SFP/SFP+/SFP28
- Throughput: 296 Gbps
- Forwarding rate: 220 Mpps
- Latency (25G SFP to RJ45): from 2.8 microseconds
- CPU: Dual-Core x86
- System memory: 8 GB
- Flash storage: 8 GB
- Packet buffer: 4 MB
- Management ports: 1 x 100/1000, 1 x RS-232 (RJ-45), 1 x USB
- Power supplies: 2 x AC (1+1 redundant), 100-240V AC, 50/60 Hz
- Input connector: IEC 60320 C14
- Power efficiency: 93% Platinum
- Power draw: 83 W typical, 95 W maximum
- Airflow: front-to-rear (reversible fan module)
- Fan module: FAN-7010X, hot-swappable
- Dimensions (W x H x D): 43.9 x 4.35 x 27.6 cm
- Weight: 3.9 kg
- Form factor: 1RU
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
- EOS licence group: G2, minimum EOS 4.31.1

FAQs

Q: Which licences are available for this switch?
A: It runs Arista EOS in licence group G2. Optional licences are LIC-FIX-G2-V2 (Segmentation and 3rd Party Integration), LIC-FIX-G2-E (Enhanced: OSPF, ISIS, BGP, PIM) and LIC-FIX-G2-FLX-L (FLX-Lite: full routing, EVPN and VXLAN). CloudVision subscriptions are also available.

Q: What optics and cables work in the SFP ports?
A: At 10G the ports take 10GBASE-CR (0.5-5 m), AOC (3-30 m), SR, LR, ER, ZR, DWDM and 10GBASE-T modules. At 25G they take 25GBASE-CR (1-5 m), AOC, SR, LR and MR-LR. They also accept 1GbE SX/LX and 100/1000BASE-T modules.

Q: Does it support PoE?
A: No. This is a non-PoE switch. The 48 RJ45 ports provide data only, so powered devices need a separate power source or injector.

Q: How is this -F model different from other 7010X variants?
A: The -F suffix means front-to-rear airflow with two AC power supplies. The 48C model has 8 GB of system memory and requires EOS 4.31.1 or later. The fan module is field-reversible if you need rear-to-front cooling.

Q: What rack mounting options are available?
A: The switch supports 2-post and 4-post rack mounting. The relevant Arista kits are KIT-7010 (2-post), KIT-7010-4POST and KIT-7010-2POST-23.
