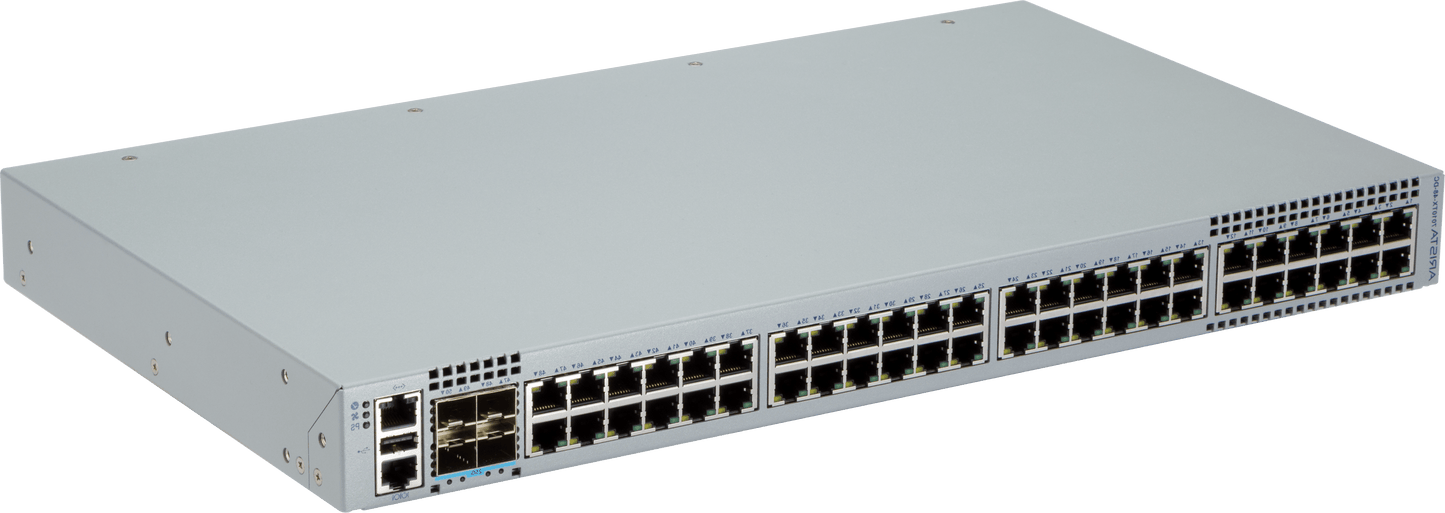

Arista DCS-7010TX-48C-DC-RV3A-F | 7010X 48-Port Gigabit Switch, 4x 25G SFP28, DC Power
SKU:DCS-7010TX-48C-DC-RV3A-F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7010X is a 1RU DC-powered switch for data centre top-of-rack and 1G server-edge access, campus access and out-of-band management networks. It runs Arista EOS and fits leaf-spine designs alongside Arista 7050X3 and 7300X3 switches.
This SKU provides 48 x 10/100/1000 RJ-45 ports and 4 SFP ports that run at 1, 10 or 25GbE. It delivers 296 Gbps of throughput and 220 Mpps forwarding, with 8 GB of system memory, 8 GB of flash and a 4 MB packet buffer. Power comes from two DC power supplies in a 1+1 redundant arrangement, accepting -40 to -72 VDC. The -F variant uses front-to-rear airflow through a hot-swap fan module that is field-reversible. The switch does not provide PoE. It belongs to EOS License Group G2, with optional licences and CloudVision subscriptions sold separately.
The SFP+ ports support 10GBASE-CR, AOC, SR, LR, ER, ZR, 10GBASE-T and DWDM optics, plus 1GbE SX and LX. The SFP28 ports support 25GBASE-CR, AOC, SR and LR. Minimum EOS release is 4.33.2.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Wire-speed Layer 2 and Layer 3 forwarding
- Redundant 1+1 internal DC power supplies with over 90% efficiency
- Hot-swappable fan module, field-reversible for front-to-rear or rear-to-front cooling
- Fully shared 4 MB dynamic packet buffer with latency under 3 microseconds
- Up to 64K MAC entries and up to 32K IPv4/IPv6 routes
- 64-way ECMP, 64-port MLAG, VXLAN and EVPN support
- PTP support
- CloudVision, Zero Touch Provisioning, Smart System Upgrade, LANZ microburst detection and sFlow
- Single-binary Arista EOS with Linux shell access and Bash, Python, C++, Go and OpenConfig extensibility
- Stateful Fault Repair, Stateful Fault Containment and live software patching
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 10/100/1000 Mb RJ-45
- Uplink ports: 4 x 1/10/25GbE SFP/SFP+/SFP28
- Throughput: 296 Gbps
- Forwarding rate: 220 Mpps
- Latency (25G SFP to RJ45): from 2.8 microseconds
- CPU: Dual-Core x86
- System memory: 8 GB
- Flash storage: 8 GB
- Packet buffer: 4 MB
- Management port: 1 x 100/1000
- Serial console: 1 x RS-232 (RJ-45)
- USB ports: 1
- Power supplies: 2 x DC (1+1 redundant)
- Input voltage: -40 to -72 VDC
- Typical input current: 2.5 A max at -48V
- Power supply efficiency: 92% typical
- Airflow: front-to-rear, reversible via hot-swap fan module
- Fan module: FAN-7010X
- Operating noise: 46.5 dBA typical at 27 C, 56.5 dBA max
- Dimensions (WxHxD): 43.9 x 4.35 x 27.6 cm
- Weight: 3.9 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
- EOS licence group: G2
- Minimum EOS: 4.33.2
FAQs
Q: Does this switch need a licence?
A: It runs Arista EOS and belongs to EOS License Group G2. Optional G2 licences such as LIC-FIX-G2-V2, LIC-FIX-G2-E and LIC-FIX-G2-FLX-L add segmentation, enhanced routing and FLX-Lite routing features. CloudVision subscriptions are sold separately.
Q: What power does it need?
A: It uses two integrated DC power supplies in a 1+1 redundant arrangement. Input is -40 to -72 VDC, with 2.5 A maximum at -48V. The switch does not provide PoE.
Q: Which optics work in the SFP ports?
A: The SFP+ ports support 10GBASE-CR, AOC, SR, LR, ER, ZR, 10GBASE-T and DWDM, plus 1GbE SX and LX. The SFP28 ports support 25GBASE-CR, AOC, SR and LR.
Q: What does the -F suffix mean?
A: The -F variant uses front-to-rear airflow. The hot-swap fan module is field-reversible, so airflow direction can be changed with the FAN-7010X module.
Q: Which rack mounting options are available?
A: The switch supports 2-post and 4-post rack mounting. Spare mounting kits include KIT-7010, KIT-7010-4POST and KIT-7010-2POST-23.
