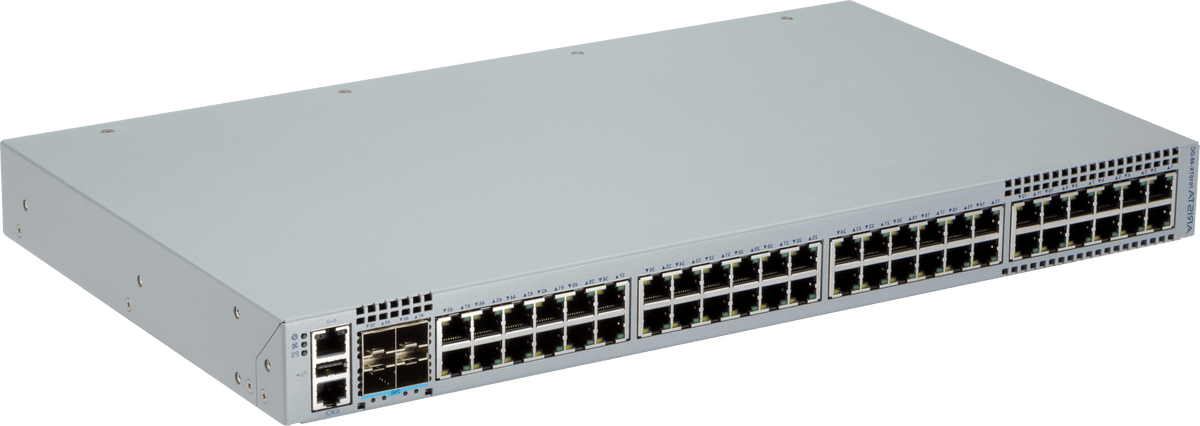

Arista DCS-7010TX-48C-DC-RV3-F | 7010X 48-Port Gigabit Switch, 4x 25G SFP, ORv3 DC

SKU:DCS-7010TX-48C-DC-RV3-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010X ORv3 switch is a 1OU data centre switch built for Open Rack v3 deployments. It suits top-of-rack and management or aggregation networking in Open Compute Project racks, where device density, power density and efficiency matter and servers connect over 1G copper with 10G or 25G uplinks.

It provides 48 10/100/1000 Mb RJ-45 ports plus four SFP ports that each run at 1GbE, 10GbE or 25GbE, with no limitation on mixing modes. Throughput is 148 Gbps (296 Gbps bi-directional) with 220 Mpps forwarding, latency from 2.8 microseconds and a 4 MB packet buffer. The integrated DC power supply connects to the rack bus bar through Power Entry Modules. This SKU is the ORv3 rack kit variant with 2x DC PSU and front-to-rear airflow.

The switch runs Arista EOS, minimum release 4.32.2, and uses 1/10/25GbE SFP/SFP+ optics and cables in its four uplink ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Standardised Open Compute Project ORv3 form factor
- Integrated DC power supply connecting to the rack bus bar via Power Entry Modules
- Hot-swappable fan module
- Each SFP port configurable for 1GbE, 10GbE or 25GbE with no limitation on mixing modes
- RJ-45 ports support 10Mb, 100Mb and 1000Mb in half and full duplex
- Wire-speed Layer 2 and Layer 3 forwarding with VXLAN and EVPN
- CloudVision, Zero Touch Provisioning (ZTP) and Smart System Upgrade
- LANZ microburst detection, sFlow and VM Tracer
- Arista EOS with full Linux shell access, extensible via Bash, Python, C++, Go and OpenConfig

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Mb RJ-45
- Uplink ports: 4 x 1/10/25GbE SFP/SFP+
- Throughput: 148 Gbps (296 Gbps bi-directional)
- Forwarding rate: 220 Mpps
- Latency: from 2.8 microseconds
- Packet buffer: 4 MB
- CPU: Dual-Core x86
- System memory: 8 GB
- Flash storage: 8 GB
- Management ports: 1
- Serial console: 1 x RS-232 (RJ-45)
- USB ports: 1
- Power supply: integrated DC, connects to ORv3 rack bus bar via PEMs
- Airflow: front-to-rear
- Fan module: FAN-7010X, hot-swappable
- Form factor: 1OU ORv3
- Dimensions (WxHxD) including tray assembly: 53.7 x 4.65 x 80.5 cm
- Weight: 28.82 lbs
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m (10,000 ft)
- Minimum EOS: 4.32.2

FAQs

Q: Which EOS release does this switch need?
A: It requires Arista EOS 4.32.2 or later.

Q: How is this switch powered?
A: It has an integrated DC power supply that connects to the ORv3 rack bus bar through Power Entry Modules. This SKU is the 2x DC PSU variant.

Q: What airflow does this SKU support?
A: This -RV3-F SKU supports front-to-rear airflow only. The fan module is FAN-7010X and is hot-swappable.

Q: Which optics work in the SFP uplink ports?
A: The four SFP ports accept 1/10/25GbE SFP/SFP+ optics and cables, and each port can be set to 1GbE, 10GbE or 25GbE independently.

Q: What licensing does this switch use?
A: It runs Arista EOS, and the datasheet lists LIC-FIX-G as the EOS feature licence for this model. Optional 7010X family licences cover Segmentation and 3rd Party Integration, Enhanced routing (OSPF, ISIS, BGP, PIM) and FLX-Lite.
