Arista

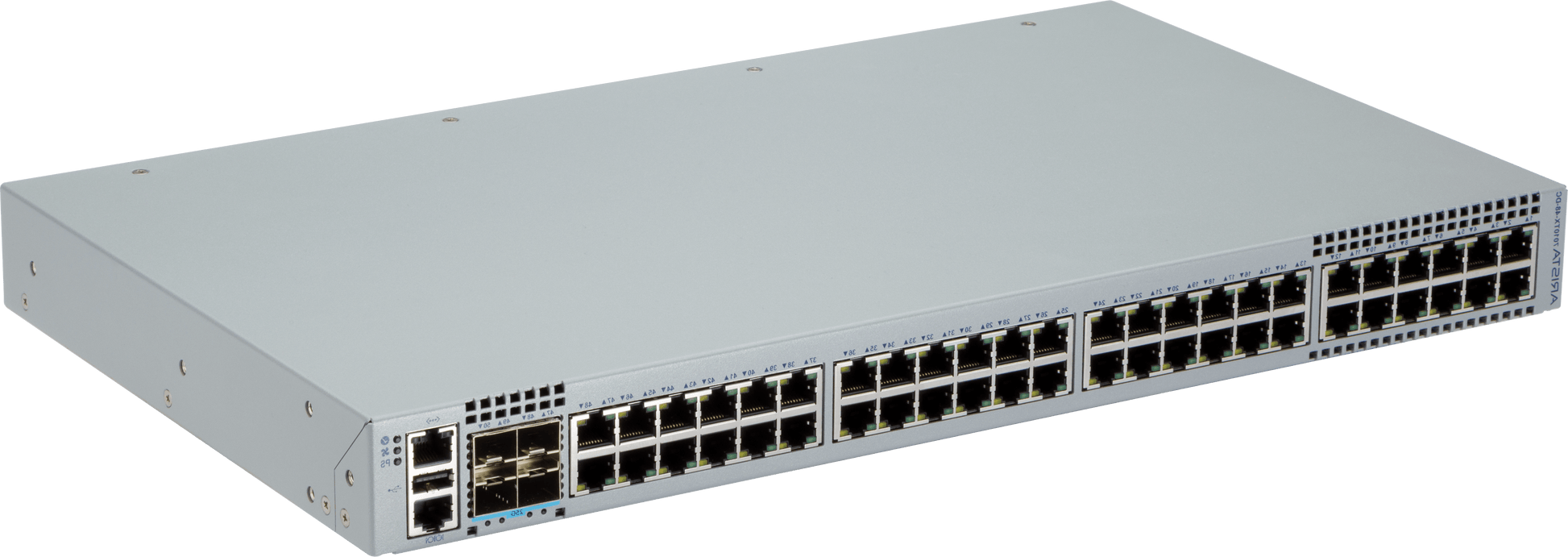

Arista DCS-7010TX-48C-DC-R | 7010X 48-Port Gigabit Switch, 4x 25G SFP, DC, Rear-to-Front

SKU:DCS-7010TX-48C-DC-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010X is a 1RU DC-powered switch for compact data centre leaf, campus access and out-of-band management roles. The DC power and rear-to-front airflow make it suited to telco and central-office sites where DC feeds are standard.

This DCS-7010TX-48C-DC-R provides 48 10/100/1000BASE-T RJ-45 ports and four 1/10/25GbE SFP/SFP+ uplink ports, with 296 Gbps throughput and 220 Mpps forwarding. It has two integrated 1+1 redundant DC power supplies (-40 to -72 VDC) and a hot-swappable fan module configured for rear-to-front airflow, along with 8 GB of system memory and 8 GB of flash storage.

The SFP ports accept 1G, 10G and 25G optics and cables, including SR, LR, ER, ZR, DWDM and direct-attach options. The switch runs Arista EOS (License Group G2) and is managed through CloudVision, and it can be deployed alongside Arista 7050X3 and 7300X3 series switches in leaf/spine designs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Low power consumption of about 0.3 W/Gbps
- Fully shared 4 MB packet buffer
- 1+1 redundant internal DC power supplies with over 90% efficiency
- Hot-swappable, field-reversible fan module for front-to-rear or rear-to-front cooling
- Up to 64K MAC entries and 32K IPv4/IPv6 routes, 64-way ECMP and 64-port MLAG
- VXLAN, EVPN and PTP support
- CloudVision, Zero Touch Provisioning, Smart System Upgrade, LANZ microburst detection, sFlow and VM Tracer
- Arista EOS with a single binary image, live software patching and extensibility via Bash, Python, C++, GO and OpenConfig

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ-45
- Uplinks: 4 x 1/10/25GbE SFP/SFP+
- Throughput: 296 Gbps
- Forwarding rate: 220 Mpps
- Latency (25G SFP to RJ45): from 2.8 microseconds
- CPU: Dual-core x86
- System memory: 8 GB
- Flash storage: 8 GB
- Packet buffer: 4 MB
- Management ports: 1 x 100/1000, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x DC (1+1 redundant)
- Input voltage: -40 to -72 VDC
- Input current: 2.5 A max at -48V
- Power supply efficiency: 92% typical
- Airflow: rear-to-front, reversible hot-swappable fan (FAN-7010X)
- Operating noise: 46.5 dBA typical at 27 C, 56.5 dBA max
- Dimensions (WxHxD): 43.9 x 4.35 x 27.6 cm (1RU)
- Weight: 3.9 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
- EOS licence group: G2, minimum EOS 4.33.2

FAQs

Q: What power input does this switch use?
A: It has two integrated 1+1 redundant DC power supplies accepting -40 to -72 VDC, drawing up to 2.5 A at -48V through an AWG#14 maximum connector.

Q: What airflow direction does this SKU use?
A: This -R variant is configured for rear-to-front airflow. The hot-swappable FAN-7010X module is field-reversible if front-to-rear airflow is needed.

Q: Which optics and cables work in the SFP ports?
A: The four SFP ports accept 1G, 10G and 25G modules, including 1GbE SX/LX, 10GBASE-SR/LR/ER/ZR, 10GBASE-T, DWDM, 10G and 25G direct-attach and AOC cables, and 25GBASE-SR/LR.

Q: Which software and licences does it use?
A: It runs Arista EOS in License Group G2 (minimum EOS 4.33.2). Optional licences include LIC-FIX-G2-V2 for segmentation and third-party integration, LIC-FIX-G2-E for OSPF, ISIS, BGP and PIM, and LIC-FIX-G2-FLX-L for FLX-Lite. CloudVision subscriptions are also available.

Q: What rack mounting options are available?
A: The switch supports 2-post and 4-post rack mounting. Mount options include KIT-7010, KIT-7010-4POST and KIT-7010-2POST-23.
