Arista

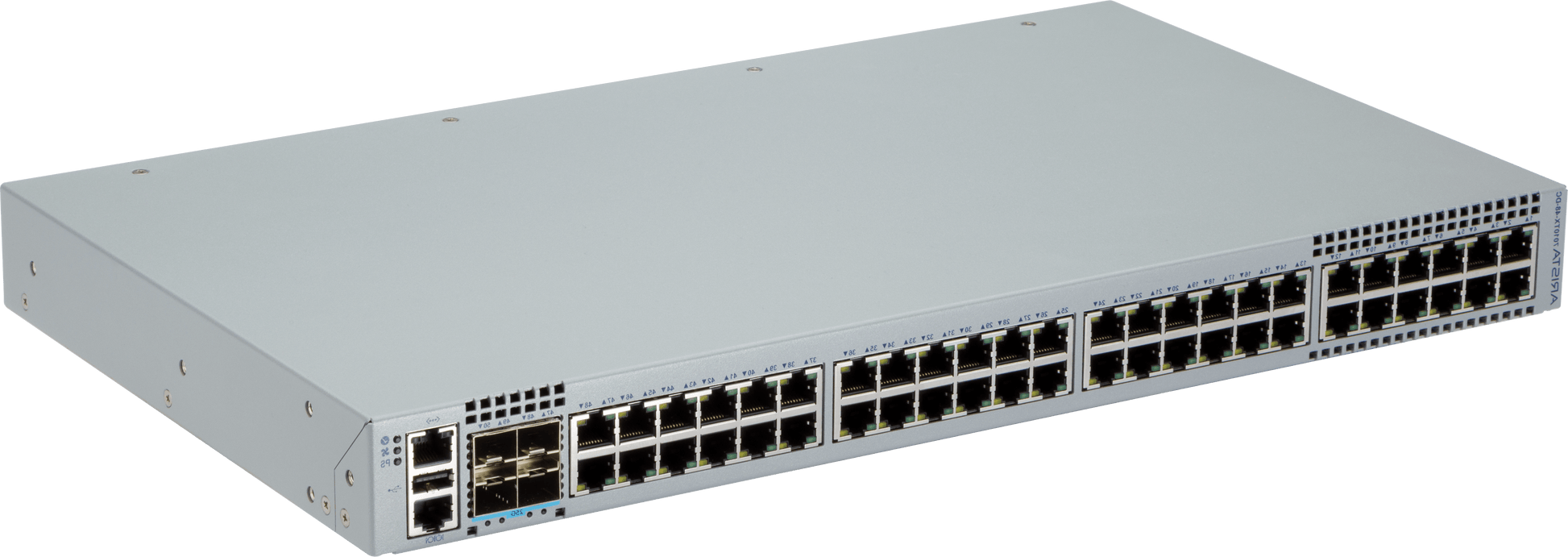

Arista DCS-7010TX-48C-DC-F | 7010X 48-Port Gigabit Switch, 4x 25G SFP, DC Power

SKU:DCS-7010TX-48C-DC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010X is a 1RU data centre switch with 48 10/100/1000 RJ-45 ports and four SFP ports that run at 1, 10 or 25GbE. This DC-powered SKU has dual power supplies and front-to-rear airflow, and runs Arista EOS with L2 and L3 forwarding. It suits 1G server-edge leaf roles in leaf-spine designs, campus access and out-of-band management networks, and the -40 to -72 VDC supply fits telco and colocation environments.

The 48C model delivers 296 Gbps of throughput and 220 Mpps forwarding, with latency from 2.8 microseconds from SFP to RJ45. It has a 4 MB shared packet buffer, 8 GB system memory and 8 GB flash. Power comes from two hot-swappable DC supplies in a 1+1 redundant arrangement, with a reversible, hot-swappable fan module. EOS licence group G2 applies, with a minimum EOS release of 4.33.2.

The SFP+ ports accept 10GBASE-CR, AOC, SR, LR, ER, ZR, 10GBASE-T and DWDM optics, while the 25G ports accept 25GBASE-CR, AOC, SR and LR. Gigabit SX and LX optics are also supported. Management is through Arista EOS and CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Arista EOS with a modular, state-sharing architecture and a full Linux shell
- Wire-speed L2 and L3 forwarding with VXLAN and EVPN support
- Up to 64K MAC entries, 32K IPv4/IPv6 routes, 64-way ECMP and 64-port MLAG
- Low power consumption of about 0.3 W per Gbps with over 90% efficient power supplies
- 1+1 redundant DC power supplies and a redundant, hot-swappable, reversible fan module
- Zero Touch Provisioning, CloudVision, LANZ microburst detection, sFlow, VM Tracer and Smart System Upgrade
- PTP support
- 2-post and 4-post rack mounting
- Each SFP port can run at 1GbE, 10GbE or 25GbE

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Mb RJ-45
- Uplink ports: 4 x 1/10/25GbE SFP/SFP+
- Throughput: 296 Gbps
- Forwarding rate: 220 Mpps
- Latency (25G SFP to RJ45): from 2.8 microseconds
- Packet buffer: 4 MB
- System memory: 8 GB
- Flash storage: 8 GB
- CPU: Dual-Core x86
- Management port: 1 x 100/1000
- Serial port: 1 x RS-232 (RJ-45)
- USB ports: 1
- Power supplies: 2 x DC, 1+1 redundant
- Input voltage: -40 to -72 VDC
- Typical input current: 2.5 A max at -48V
- Power supply efficiency: 92% typical
- Airflow: front-to-rear, reversible, hot-swappable fan module (FAN-7010X)
- Operating noise: 46.5 dBA typical at 27 C, 56.5 dBA max
- Dimensions (W x H x D): 43.9 x 4.35 x 27.6 cm
- Weight: 3.9 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
- EOS licence group: G2, minimum EOS 4.33.2

FAQs

Q: Does this switch need a licence?
A: It runs Arista EOS in licence group G2 with a minimum EOS release of 4.33.2. Optional licences include LIC-FIX-G2-V2 for segmentation and 3rd party integration, LIC-FIX-G2-E for enhanced routing (OSPF, ISIS, BGP, PIM) and LIC-FIX-G2-FLX-L for FLX-Lite. CloudVision subscriptions are also available.

Q: What power does the DCS-7010TX-48C-DC-F use?
A: It has two integrated DC power supplies in a 1+1 redundant arrangement, with a -40 to -72 VDC input and 2.5 A max at -48V. Typical efficiency is 92%. The switch does not provide PoE.

Q: Which optics and speeds do the SFP ports support?
A: Each of the four SFP ports can run at 1GbE, 10GbE or 25GbE. SFP+ ports support 10GBASE-CR, AOC, SR, LR, ER, ZR, 10GBASE-T and DWDM, and the 25G ports support 25GBASE-CR, AOC, SR and LR. 1GbE SX and LX optics are also supported.

Q: What is the airflow direction and can it be changed?
A: This SKU has front-to-rear airflow. The fan module (FAN-7010X) is hot-swappable and reversible.

Q: What rack mounting options are available?
A: The 7010X supports 2-post and 4-post rack mounting. Mount kits for this series include KIT-7010 (2-post), KIT-7010-4POST and KIT-7010-2POST-23.
