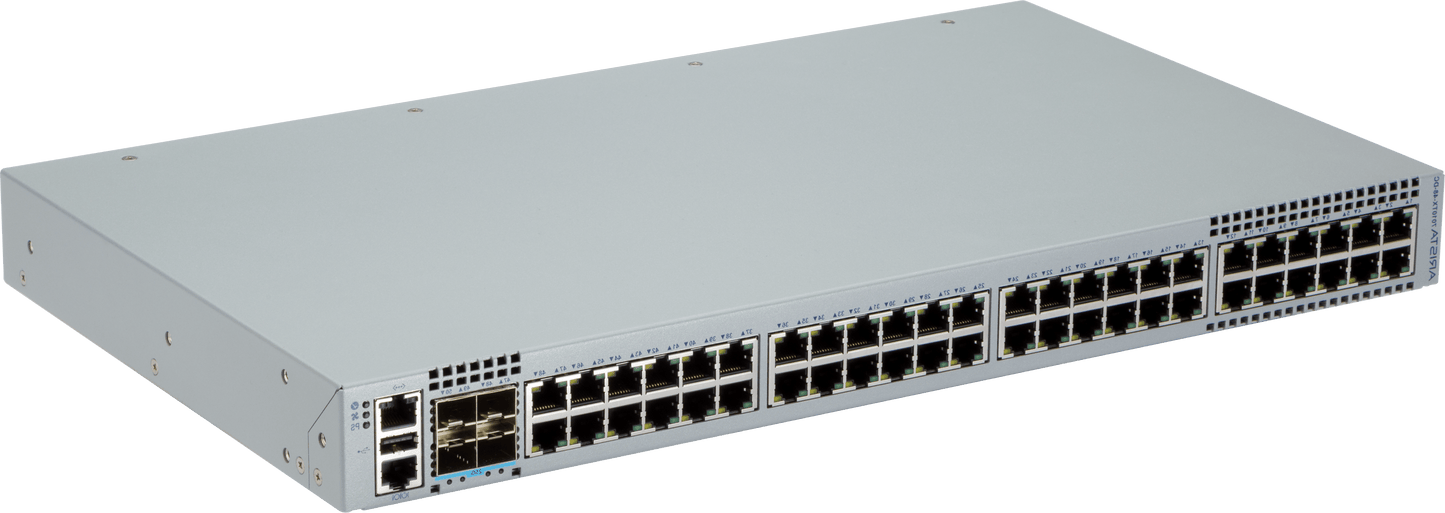

Arista DCS-7010TX-48-F | 7010X 48-Port Gigabit Switch, 4x 25G SFP, 2x AC
SKU:DCS-7010TX-48-F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7010TX-48 is a 1RU data centre switch from the 7010X Series, built for 1GbE server-edge top-of-rack leaf deployments, campus access and high-performance out-of-band management networks. It runs Arista EOS and pairs well with 7050X3 10G/25G/100G switches in 1GbE leaf-spine designs.
The switch provides 48 x 10/100/1000 Mb RJ-45 ports and 4 SFP ports that run at 1G, 10G or 25G. It delivers 296 Gbps of non-blocking throughput and 220 Mpps forwarding, with latency from 2.8 microseconds and a 4 MB dynamic, fully shared packet buffer. This SKU has two AC power supplies in a 1+1 redundant arrangement and a hot-swappable fan module with front-to-rear airflow. It carries 4GB of system memory and 8GB of flash storage. Typical power draw is 61 W, with a maximum of 80 W.
The base EOS feature set is bundled and this SKU sits in EOS License Group G2. Optional perpetual licences add routing and EVPN/VXLAN features. The SFP ports accept 1G SX/LX, 10GBASE-SR/LR/ER/ZR/CR/AOC and 25GBASE-SR/LR/CR/AOC optics and cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs Arista EOS, a single-binary modular network OS with stateful fault repair and containment
- Wire-speed Layer 2 and Layer 3 forwarding
- VXLAN and EVPN support, with 64-way ECMP and MLAG
- Low power consumption at 0.3 W per Gbps
- 1+1 redundant power supplies with over 90% efficiency
- Redundant, hot-swappable, field-reversible fan module
- Dynamic, fully shared 4 MB packet buffer
- LANZ microburst detection, sFlow and PTP support
- Zero Touch Provisioning and CloudVision integration
- 2-post and 4-post rack mounting
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 10/100/1000 Mb RJ-45
- SFP ports: 4 x 1/10/25GbE SFP/SFP+/SFP28
- Throughput: 296 Gbps
- Forwarding rate: 220 Mpps
- Latency (25G SFP to RJ45): from 2.8 microseconds
- CPU: Dual-Core x86
- System memory: 4 GB
- Flash storage: 8 GB
- Packet buffer: 4 MB
- Management port: 1 x 100/1000
- Serial console: 1 x RS-232 (RJ-45)
- USB ports: 1
- Power supplies: 2 x AC (1+1 redundant)
- Input voltage: 100-240V AC, 50/60 Hz
- Input connector: IEC 60320 C14
- Power supply efficiency: 93% (Platinum)
- Typical / maximum power draw: 61 W / 80 W
- Airflow: front-to-rear, hot-swappable fan module (FAN-7010X)
- Operating noise: 46.5 dBA typical, 56.5 dBA maximum
- Dimensions (W x H x D): 43.9 x 4.35 x 27.6 cm (1RU)
- Weight: 3.9 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- MAC addresses: 64K
- IPv4 host routes: 32K
- IPv6 host routes: 16K
- IPv4 LPM routes: 16K
- ECMP: 64-way, 256 groups
- Minimum EOS: 4.26.0
FAQs
Q: Does this switch need a licence to run?
A: No. The base EOS feature set is bundled with the switch. This SKU is in EOS License Group G2, and optional perpetual licences such as LIC-FIX-G2-E (OSPF, ISIS, BGP, PIM) and LIC-FIX-G2-FLX-L (adds EVPN and VXLAN) extend the feature set.
Q: What power supplies does this model use?
A: It has two AC power supplies in a 1+1 redundant arrangement, accepting 100-240V AC at 50/60 Hz through IEC 60320 C14 inlets. Typical draw is 61 W and the maximum is 80 W.
Q: What optics do the SFP ports support?
A: The four SFP ports accept 1G, 10G and 25G optics and cables, including 1GbE SX/LX, 10GBASE-SR/LR/ER/ZR/CR/AOC and 25GBASE-SR/LR/CR/AOC.
Q: Which airflow direction does this SKU use?
A: This SKU has front-to-rear airflow. The fan module is the hot-swappable FAN-7010X.
Q: What EOS version does it need?
A: The minimum supported EOS release is 4.26.0.
