Arista

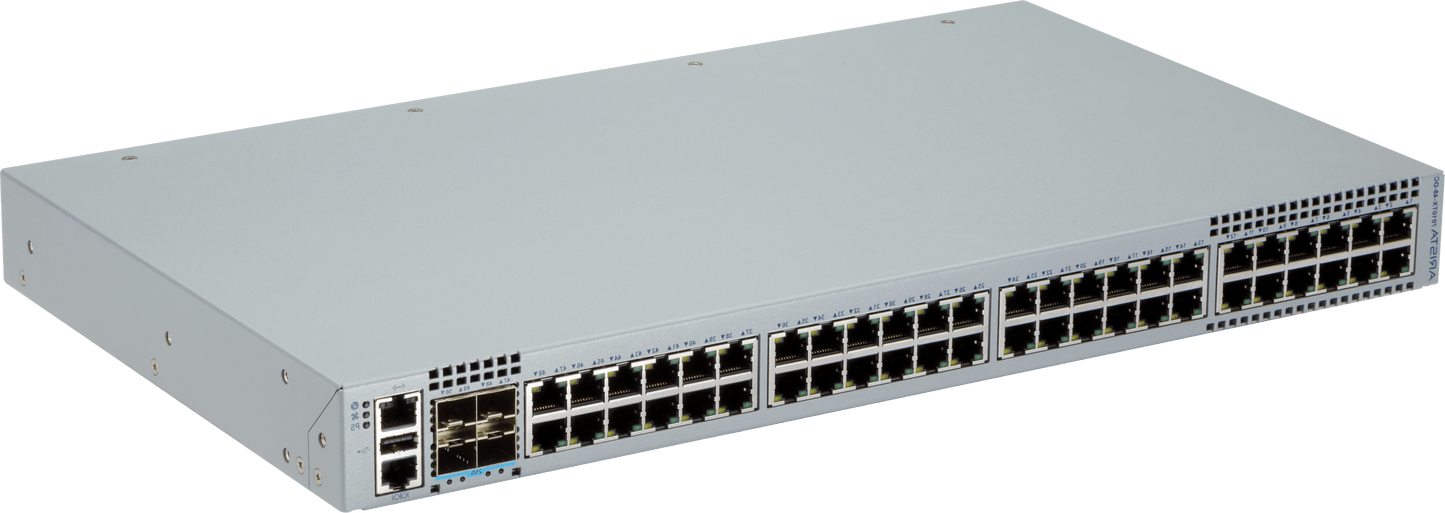

Arista DCS-7010TX-48-DC-R | 7010X 48-Port Gigabit Switch, 4x 25G SFP28, DC, Rear-to-Front

SKU:DCS-7010TX-48-DC-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010X is a 1RU switch built for server-edge 1GbE top-of-rack leaf roles in data centre leaf-spine designs, as well as campus access and out-of-band management networks. This DC-powered variant suits telco and DC-powered facilities, and runs Arista EOS.

It provides 48 x 10/100/1000BASE-T RJ-45 ports and four SFP ports that can each be set to 1GbE, 10GbE or 25GbE. Non-blocking forwarding reaches 296 Gbps and 220 Mpps, backed by a 4 MB shared packet buffer and latency from 2.8 microseconds. Power comes from two DC supplies in a 1+1 redundant arrangement, taking -40 to -72 VDC, with a typical draw of 56 W and a maximum of 75 W. Airflow is rear-to-front through a hot-swappable, field-reversible fan module. The unit has 4 GB of system memory and 8 GB of flash.

The SFP ports accept SFP+ and SFP25 optics and cables, including 10GBASE-SR, -LR, -ER, -ZR, -CR and -AOC, plus 25GBASE-CR, -SR and -LR. 100/1000BASE-T and 1GbE SX/LX modules are also supported. The fan module is FAN-7010X and the minimum EOS release is 4.26.0.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-blocking wire-speed Layer 2 and Layer 3 forwarding at up to 296 Gbps
- Each SFP port is configurable as 1GbE, 10GbE or 25GbE
- Fully shared 4 MB dynamic packet buffer with latency under 3 microseconds
- Up to 64K MAC entries, 32K IPv4/IPv6 routes, 64-way ECMP and 64-port MLAG
- VXLAN and EVPN support
- Redundant internal DC power supplies and a hot-swappable, field-reversible fan module
- Arista EOS with Smart System Upgrade, Stateful Fault Repair and live software patching
- Zero Touch Provisioning, CloudVision, LANZ microburst detection, sFlow and PTP
- Full Linux shell access with Bash, Python, C++, Go and OpenConfig

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ-45
- SFP ports: 4 x 1/10/25GbE SFP/SFP+/SFP28
- Throughput: 296 Gbps
- Forwarding rate: 220 Mpps
- Latency (25G SFP to RJ45): from 2.8 microseconds
- Packet buffer: 4 MB
- CPU: Dual-Core x86
- System memory: 4 GB
- Flash storage: 8 GB
- Management ports: 1 x 100/1000, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x DC, 1+1 redundant
- Input voltage: -40 to -72 VDC
- Input current: 2.5 A max at -48V
- Power supply efficiency: 92% typical
- Power draw: 56 W typical, 75 W maximum
- Airflow: rear-to-front, reversible, hot-swappable fan module
- Fan module: FAN-7010X
- Operating noise: 46.5 dBA typical, 56.5 dBA maximum
- Dimensions (W x H x D): 43.9 x 4.35 x 27.6 cm (1RU)
- Weight: 3.9 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
- EOS licence group: G2, minimum EOS 4.26.0

FAQs

Q: What power input does this model need?
A: It has two integrated DC power supplies in a 1+1 redundant arrangement. Input is -40 to -72 VDC, with a maximum current of 2.5 A at -48V.

Q: Which optics and cables work in the SFP ports?
A: The four SFP ports accept SFP+ and SFP25 optics and cables. At 10G this includes 10GBASE-CR, -AOC, -SR, -LR, -ER, -ZR and -T, and at 25G it includes 25GBASE-CR, -AOC, -SR and -LR. 100/1000BASE-T and 1GbE SX/LX modules are also supported.

Q: Does it need a licence to run?
A: It runs Arista EOS and sits in EOS License Group G2, with a minimum EOS release of 4.26.0. Optional G2 licences are available for Enhanced routing (OSPF, ISIS, BGP, PIM), FLX-Lite routing with EVPN and VXLAN, and Segmentation and 3rd Party Integration.

Q: Which way does air flow through this unit?
A: Airflow is rear-to-front. The FAN-7010X fan module is hot-swappable and field-reversible, so the airflow direction can be changed if your rack layout requires it.

Q: Where does this switch fit in a network design?
A: It suits server-edge 1GbE top-of-rack leaf roles in leaf-spine data centre designs, campus access, and out-of-band management networks. The DC supplies make it a fit for telco and DC-powered facilities.
