Arista

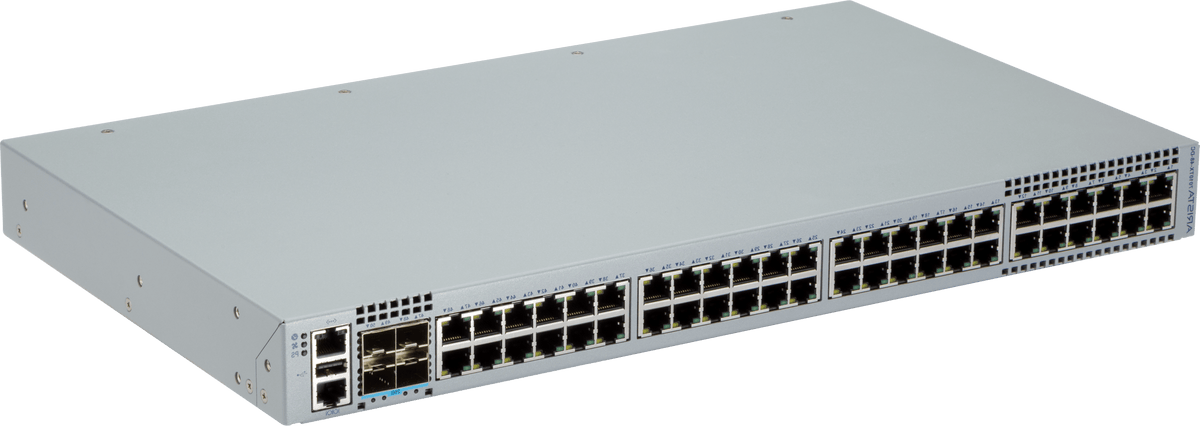

Arista DCS-7010TX-48-DC-F | 7010X 48-Port Gigabit Switch, 4x 25G SFP, 2x DC PSU

SKU:DCS-7010TX-48-DC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010X is a 1RU DC-powered data centre switch for server-edge leaf deployments and out-of-band management networks. It runs Arista EOS and suits DC-powered facilities, and it pairs with Arista 7050X3 and 7300X3 spine tiers.

This model provides 48 10/100/1000Mb RJ-45 ports and 4 SFP ports that operate at 1G, 10G or 25G. Throughput is 296 Gbps at 220 Mpps, with latency from 2.8 microseconds, a 4 MB packet buffer and 64K MAC addresses. This SKU has two integrated DC power supplies in a 1+1 redundant arrangement, accepting -40 to -72 VDC, with a typical draw of 56 W and a maximum of 75 W. Airflow is front to rear.

The base EOS feature set is bundled with the switch, which sits in EOS License Group G2. The SFP ports accept a wide range of 1G, 10G and 25G optics and cables, and the minimum supported EOS release is 4.26.0.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Arista EOS, a modular Linux-based network OS with Stateful Fault Repair
- Layer 2 and Layer 3 wire-speed forwarding
- VXLAN routing and bridging with EVPN support
- 64-way ECMP and MLAG
- LANZ microburst detection, sFlow, port mirroring and PTP
- Zero Touch Provisioning and CloudVision management support
- 1+1 redundant internal DC power supplies
- Hot-swappable, field-reversible fan module for front-to-rear or rear-to-front cooling
- Bash, Python and eAPI extensibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Mb RJ-45
- Uplink ports: 4 x 1/10/25GbE SFP/SFP+
- Throughput: 296 Gbps
- Packet forwarding rate: 220 Mpps
- Latency (25G SFP to RJ45): From 2.8 microseconds
- CPU: Dual-Core x86
- System memory: 4 GB
- Flash storage: 8 GB
- Packet buffer: 4 MB
- MAC addresses: 64K
- IPv4 host routes: 32K
- IPv6 host routes: 16K
- IPv4 LPM routes: 16K
- ECMP: 64-way, 256 groups
- Ingress ACLs: 4K
- Egress ACLs: 1K
- Management ports: 1 x 100/1000 Mgmt, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x DC (1+1 redundant)
- Input voltage: -40 to -72 VDC
- Typical input current: 2.5 A max at -48V
- Typical / max power draw: 56 W / 75 W
- Efficiency (typical): 92%
- Airflow: Front to rear, reversible hot-swap fan module (FAN-7010X)
- Dimensions (W x H x D): 43.9 x 4.35 x 27.6 cm (1RU)
- Weight: 3.9 kg
- Operating temperature: 0 to 40 C
- EOS licence group: G2, minimum EOS 4.26.0

FAQs

Q: Does this switch need a licence to run?
A: No. The base EOS feature set is bundled with the switch. Optional perpetual licences are available in EOS License Group G2, including LIC-FIX-G2-E for Enhanced routing (OSPF, ISIS, BGP, PIM) and LIC-FIX-G2-FLX-L for FLX-Lite with EVPN/VXLAN.

Q: What power input does this model use?
A: It has two integrated DC power supplies in a 1+1 redundant arrangement. Input is -40 to -72 VDC, with a maximum of 2.5 A at -48V, and the input connector takes up to AWG#14.

Q: Which optics and cables work in the SFP ports?
A: The four SFP ports take 1G, 10G and 25G optics and cables, including 10GBASE-SR, LR, ER, ZR, DWDM and CR/AOC, 10GBASE-T, 1000BASE-T, 1GbE SX/LX, and 25GBASE-CR, AOC, SR and LR. The minimum EOS release is 4.26.0.

Q: What is the airflow direction on this SKU?
A: This -F SKU has front-to-rear airflow. The hot-swap fan module (FAN-7010X) is field-reversible if rear-to-front cooling is needed.

Q: How does this model differ from other 7010X variants?
A: This SKU is the DC-powered version with two integrated DC power supplies and front-to-rear airflow, suited to DC-powered facilities.
