Arista

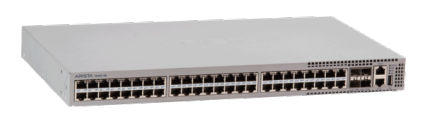

Arista DCS-7010T-48-R | 7010T 48-Port Gigabit Switch, 4x SFP+, Rear-to-Front

SKU:DCS-7010T-48-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010T is a 1RU data centre Gigabit Ethernet switch running Arista EOS. It suits the server edge of 1Gb leaf-and-spine designs, or a dedicated out-of-band and IPMI management network in high-density data centres.

This DCS-7010T-48-R model has 48 x 10/100/1000BASE-T RJ45 ports and 4 x 1/10GbE SFP/SFP+ uplinks, with 176 Gbps throughput and 132 Mpps forwarding. It has 4MB of dynamic packet buffer, 4GB of DRAM and 4GB of flash. The -R variant has two hot-swappable AC power supplies in a 1+1 redundant arrangement and rear-to-front airflow through a reversible fan module with 1+1 redundant fans. Typical power draw is 52W with a 65W maximum, and the switch does not provide PoE.

Base EOS includes a broad Layer 2 feature set, while Layer 3 IPv4 and IPv6 unicast and IPv4 multicast routing requires the Enhanced licence (LIC-FIX-G-E). The SFP+ ports work with 10GBASE-CR, AOC, SR, SRL, LR and LRL optics, as well as 1GbE SX/LX and 100/1000BASE-T modules. Spare parts include the FAN-7010 fan module and the KIT-7010 accessory kit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-blocking Layer 2 and Layer 3 wire-speed forwarding
- Runs Arista EOS, a single-image, Linux-based, modular operating system with stateful fault repair and containment
- Redundant power supplies and a redundant, hot-swappable, field-reversible fan module
- Low power consumption of under 1W per port
- Zero Touch Provisioning, eAPI, CloudVision and Chef, Puppet and Ansible automation support
- MLAG, 64-way ECMP, 4 VRFs and OSPF, BGP, IS-IS and RIPv2 routing with the Enhanced licence
- Security features including ACLs, control plane protection, DHCP snooping, MAC security, TACACS+ and RADIUS
- sFlow, port mirroring and integrated TCPDump packet capture for visibility and troubleshooting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ45
- Uplinks: 4 x 1/10GbE SFP/SFP+
- Throughput: 176 Gbps
- Forwarding rate: 132 Mpps
- Latency (RJ45 to uplinks): 3 microseconds
- CPU: Multi-core x86
- System memory: 4GB
- Flash storage: 4GB
- Packet buffer: 4MB (dynamic buffer allocation)
- Management ports: 1 x 10/100/1000, 1 x RS-232 serial (RJ45), 1 x USB
- Power supplies: 2 x AC (1+1 redundant), 100-240 VAC, 50/60Hz, IEC C13 inlet
- Fans: 2 x hot-swappable (1+1 redundant), rear-to-front airflow
- Typical power draw: 52W
- Maximum power draw: 65W
- MAC addresses: up to 84K (UFT mode dependent)
- IPv4 unicast routes: 16K
- IPv6 unicast routes: 8K (/64), 4K (/128)
- ECMP: 64-way, 1K groups
- STP instances: 64 (MST), 510 (RPVST+)
- ACL entries: 4K ingress, 1K egress
- Operating temperature: 0 to 40 C
- Dimensions (W x H x D): 44.5 x 4.4 x 25.4 cm (1RU)
- Weight: 4.3 kg
- Minimum EOS version: 4.14.2

FAQs

Q: Does this switch need a licence for Layer 3 routing?
A: Base EOS includes a broad Layer 2 feature set. Layer 3 IPv4 and IPv6 unicast and IPv4 multicast routing requires the Enhanced licence (LIC-FIX-G-E), which is ordered separately.

Q: What airflow direction does the -R model use?
A: The DCS-7010T-48-R uses rear-to-front (reverse) airflow. The reversible fan module is available as the spare part FAN-7010.

Q: Does the 7010T provide PoE?
A: No. The 7010T-48 does not provide PoE. It is powered by two internal AC power supplies in a 1+1 redundant arrangement, 100-240 VAC with an IEC C13 inlet.

Q: Which optics can be used in the SFP+ uplink ports?
A: The SFP+ ports support 10GBASE-CR (0.5-5m), 10GBASE-AOC (3-30m), 10GBASE-SR, SRL, LR and LRL optics, as well as 1GbE SX/LX optics and 100/1000BASE-T modules.

Q: What is the minimum EOS version required?
A: The 7010T-48 requires Arista EOS 4.14.2 or later.
