Arista

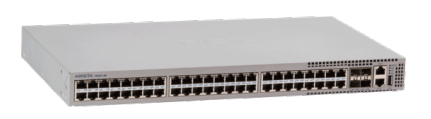

Arista DCS-7010T-48-F | 7010T 48-Port Gigabit Switch, 4x 10G SFP+, AC, Front-to-Rear

SKU:DCS-7010T-48-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010T-48 is a fixed-configuration 1RU Layer 2/3 data centre switch built for high-density deployments that need 1G server or management access with 1/10G uplinks. It suits top-of-rack use and out-of-band or IPMI network monitoring, and sits alongside the 7050X Series in the Arista data centre portfolio. It runs Arista EOS.

The switch provides 48 10/100/1000BASE-T RJ45 ports and 4 SFP+ ports that run at 1G or 10G. Switching capacity is 176 Gbps non-blocking with a 132 Mpps forwarding rate, 3 microsecond latency and a 4 MB dynamic shared packet buffer. This SKU is the AC-powered model with front-to-rear airflow, with two fixed AC power supplies in a 1+1 redundant setup and two hot-swappable fans. Typical power draw is 52 W and maximum draw is 65 W. It does not provide PoE. An Enhanced License (OSPF, BGP, ISIS, PIM) is available as an add-on.

The SFP+ ports accept 1G SFP and 10G SFP+ optics and cables, and the switch works with Arista EOS and CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-blocking forwarding with feature-rich Layer 2 and Layer 3 switching
- Dual-speed SFP+ uplinks for 1G or 10G with a full range of optics and cables
- Low latency with a shared packet buffer pool allocated dynamically to congested ports
- Power use under 52 W, less than 1 W per port
- Built-in power redundancy and reversible redundant fans
- Arista EOS with automation, telemetry, QoS and security features
- Compatible with Arista CloudVision

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: DCS-7010T-48-F
- 10/100/1000BASE-T (RJ45) ports: 48
- 1/10GbE SFP/SFP+ ports: 4
- Switching capacity: 176 Gbps (non-blocking)
- Forwarding rate: 132 Mpps
- Latency (RJ45 to uplinks): 3 microseconds
- CPU: Multi-core x86
- System memory: 4 GB DRAM
- Flash storage: 4 GB
- Packet buffer memory: 4 MB (dynamic buffer allocation)
- Management ports: 1 x 10/100/1000 out-of-band
- Serial console: 1 x RS-232 (RJ-45)
- USB ports: 1
- Power supplies: 2 x AC (1+1 redundant, fixed)
- Hot-swappable fans: 2 (1+1 redundant)
- Airflow: Front-to-rear (reversible with the same fans)
- Typical power draw: 52 W
- Maximum power draw: 65 W
- Form factor: 1RU rack-mount

FAQs

Q: Does this switch need a licence?
A: It runs Arista EOS. An Enhanced License covering OSPF, BGP, ISIS and PIM is available as an add-on for the fixed 48-port Gigabit switch.

Q: Does the 7010T-48 support PoE?
A: No. It does not provide PoE. It is a data-only switch with 48 RJ45 ports and 4 SFP+ ports.

Q: What optics do the SFP+ ports take?
A: The 4 SFP+ ports accept 1G SFP and 10G SFP+ optics and cables, so each uplink can run at 1G or 10G.

Q: How is DCS-7010T-48-F different from DCS-7010T-48-DC-F?
A: This SKU is AC-powered with front-to-rear airflow. The DCS-7010T-48-DC-F is DC-powered with rear-to-front airflow.

Q: How is the switch powered and cooled?
A: It has two fixed AC power supplies in a 1+1 redundant setup and two hot-swappable fans in a 1+1 redundant setup. Typical draw is 52 W and maximum draw is 65 W.
