Arista

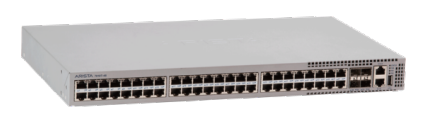

Arista DCS-7010T-48-DC-R | 7010T 48-Port Gigabit Switch, 4x 10G SFP+, 2x DC PSU

SKU:DCS-7010T-48-DC-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010T is a 48-port Gigabit data centre switch built for high-density server-edge leaf and spine designs, or as a dedicated out-of-band and IPMI management network switch. DC power makes it a good fit for telco and DC-powered environments. It runs Arista EOS and offers full Linux shell access for automation.

This DCS-7010T-48-DC-R model provides 48 x 10/100/1000BASE-T RJ45 ports and 4 x 1/10GbE SFP+ uplinks, with 176 Gbps of throughput and 132 Mpps of non-blocking L2 and L3 forwarding at under 1W per port. It has 2 x DC power supplies in a 1+1 redundant arrangement with a -40 to -72V DC input, and the -R suffix denotes rear-to-front airflow from a hot-swappable, field-reversible fan module. Typical power draw is 52W, with a maximum of 65W. Layer 3 routing for OSPF, BGP, ISIS and PIM requires the Enhanced licence.

The SFP+ ports accept 10GBASE-CR DAC, 10GBASE-AOC, 10GBASE-SRL, 10GBASE-SR, 10GBASE-LRL and 10GBASE-LR modules, plus 100/1000BASE-T and 1GbE SX/LX. Minimum EOS version is 4.14.2, and the switch is managed through CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-blocking wire-speed Layer 2 and Layer 3 forwarding
- Low power consumption of under 1W per port
- 1+1 redundant internal DC power supplies
- Hot-swappable, field-reversible fan module for front-to-rear or rear-to-front cooling
- Arista EOS with Zero Touch Provisioning, eAPI, CloudVision and VM Tracer
- MLAG support and 64-way ECMP
- Unified forwarding table with selectable UFT profiles
- Full Linux shell access with bash, Python and C++ extensibility
- Advanced Event Management (AEM) for on-switch automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ45
- Uplinks: 4 x 1/10GbE SFP+
- Throughput: 176 Gbps
- Forwarding rate: 132 Mpps
- Latency (RJ45 to uplinks): 3 microseconds
- CPU: Multi-core x86
- System memory: 4GB
- Flash storage: 4GB
- Packet buffer: 4MB (dynamic buffer allocation)
- Management ports: 1 x 10/100/1000 management, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x DC, 1+1 redundant, 75W each
- DC input voltage: -40 to -72V DC
- DC typical input current: 2.5A max (-48V)
- DC efficiency (typical): 92%
- Typical power draw: 52W
- Maximum power draw: 65W
- Fans: 2 hot-swappable, 1+1 redundant
- Airflow: Rear-to-front (reversible fan module)
- Dimensions (WxHxD): 44.5 x 4.4 x 25.4 cm
- Weight: 4.3 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -25 to 70 C
- Relative humidity: 5 to 95%
- MAC addresses: up to 84K (UFT mode dependent)
- IPv4 unicast routes: 16K
- IPv6 unicast routes: 8K (/64), 4K (/128)
- ECMP: 64-way, 1K groups
- Minimum EOS version: 4.14.2

FAQs

Q: Does this switch need a licence for Layer 3 routing?
A: The default EOS image includes a broad Layer 2 feature set. Layer 3 IPv4 and IPv6 unicast and IPv4 multicast routing, covering OSPF, BGP, ISIS and PIM, require the Enhanced licence (LIC-FIX-G-E). VM Tracer requires the Virtualization licence.

Q: What power input does the DC model use?
A: It has two 75W DC power supplies in a 1+1 redundant arrangement, with a -40 to -72V DC input and a maximum input current of 2.5A at -48V. Typical draw is 52W and maximum draw is 65W.

Q: Which SFP+ optics and cables work in the uplink ports?
A: The SFP+ ports support 10GBASE-CR DAC (0.5 to 5m), 10GBASE-AOC (3 to 30m), 10GBASE-SRL, 10GBASE-SR, 10GBASE-LRL and 10GBASE-LR, plus 100/1000BASE-T and 1GbE SX/LX modules.

Q: What does the -R in DCS-7010T-48-DC-R mean?
A: The -R denotes rear-to-front airflow. The fan module is field-reversible, so the same fan can be changed for front-to-rear cooling, and the spare fan module is FAN-7010.

Q: What is the minimum EOS version for this switch?
A: The minimum supported EOS version for the 7010T is 4.14.2.
