Arista

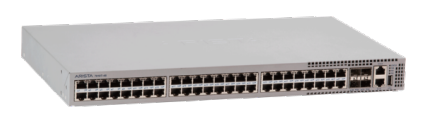

Arista DCS-7010T-48-DC-F | 7010T 48-Port Gigabit Switch, 4x 10G SFP+, 2x DC

SKU:DCS-7010T-48-DC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7010T is a fixed-configuration 1RU Gigabit Ethernet switch for data centre racks, aimed at server-edge leaf roles in 1GbE leaf-and-spine designs and at dedicated out-of-band or IPMI management networks in high-density environments. This DC-powered, front-to-rear airflow variant suits facilities that run on -48V DC.

It provides 48 x 10/100/1000BASE-T RJ45 ports and 4 x 1/10GbE SFP/SFP+ uplinks, with 176 Gbps throughput and 132 Mpps non-blocking L2 and L3 forwarding. A 4MB dynamic packet buffer and 3 microsecond port-to-uplink latency support predictable performance. Two 75W DC power supplies in a 1+1 redundant arrangement accept -40 to -72V DC, with a typical draw of 52W and a maximum of 65W. This variant uses front-to-rear airflow with 2 hot-swappable fans.

The SFP+ ports accept 10GBASE-CR, 10GBASE-AOC, 10GBASE-SR, 10GBASE-SRL, 10GBASE-LR and 10GBASE-LRL, as well as 1GbE SX/LX and 100/1000BASE-T modules. The switch runs Arista EOS (minimum version 4.14.2) and is managed with CloudVision. Layer 3 routing requires the separately ordered Enhanced licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-blocking L2 and L3 wire-speed forwarding
- Redundant 1+1 DC power supplies and hot-swappable redundant fans
- Field-reversible fan module for front-to-rear or rear-to-front cooling
- 2-post and zero-RU mounting options
- Low power consumption, under 1W per port
- Arista EOS with a single binary image, Linux shell access, eAPI and Zero Touch Provisioning
- CloudVision, VM Tracer VMware integration, OpenStack, Chef, Puppet and Ansible support
- 32-port MLAG and 64-way ECMP
- Unified forwarding table with selectable UFT profiles
- Layer 3 routing with OSPF, BGP, IS-IS, RIPv2, PIM, VRRP and 4 VRFs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ45
- Uplinks: 4 x 1/10GbE SFP/SFP+
- Throughput: 176 Gbps
- Forwarding rate: 132 Mpps
- Latency (RJ45 to uplinks): 3 microseconds
- CPU: Multi-core x86
- System memory: 4 GB
- Flash storage: 4 GB
- Packet buffer: 4MB dynamic allocation
- Management ports: 1 x 10/100/1000, 1 x RS-232 serial (RJ45), 1 x USB
- Power supplies: 2 x DC, 1+1 redundant, 75W each
- DC input voltage: -40 to -72V DC
- DC input current: 2.5A max at -48V
- DC PSU efficiency: 92% typical
- Power draw: 52W typical, 65W maximum
- Airflow: front-to-rear, 2 hot-swappable fans (1+1 redundant)
- Dimensions (WxHxD): 44.5 x 4.4 x 25.4 cm
- Weight: 4.3 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -25 to 70 C
- Operating humidity: 5 to 95%
- Operating altitude: up to 3,000 m
- MAC addresses: up to 84K (UFT mode dependent)
- IPv4 unicast routes: 16K
- IPv6 unicast routes: 8K (/64), 4K (/128)
- ECMP: 64-way, 1K groups
- Minimum EOS version: 4.14.2

FAQs

Q: Does this switch need a licence for Layer 3 routing?
A: The default EOS includes the broad Layer 2 feature set. Layer 3 IPv4/IPv6 unicast and IPv4 multicast routing requires the Enhanced licence (LIC-FIX-G-E), which is ordered separately from the hardware.

Q: What DC input does it require?
A: Each of the two 75W DC power supplies accepts -40 to -72V DC, drawing up to 2.5A at -48V, with wiring up to AWG #14. The supplies run 1+1 redundant.

Q: Does it provide PoE?
A: No. The switch does not provide PoE, so PoE devices need a separate power source.

Q: Which optics and cables work in the SFP+ ports?
A: The SFP+ ports support 10GBASE-CR (0.5 to 5m), 10GBASE-AOC (3 to 30m), 10GBASE-SR, 10GBASE-SRL, 10GBASE-LR and 10GBASE-LRL, plus 100/1000BASE-T and 1GbE SX/LX modules.

Q: Can the airflow direction be changed?
A: This SKU is configured for front-to-rear airflow. The fan module is field-reversible and the spare part is FAN-7010.

Q: What is the minimum EOS version?
A: The minimum supported Arista EOS version is 4.14.2.
