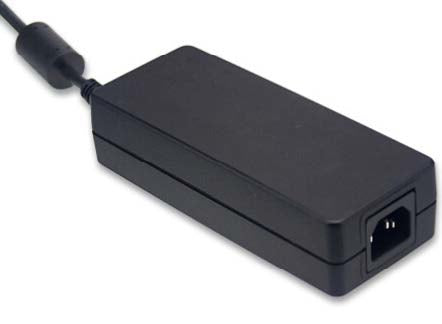

• Meraki MA-PWR-100WAC 100W AC adapter for MX68, black rectangular charger
1 1

Meraki

Meraki MA-PWR-100WAC | MX 100W AC Power Adapter for MX68/MX68W/MX68CW

MA-PWR-100WAC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 100W external AC power adapter is a replacement or spare power supply for the Meraki MX68, MX68W and MX68CW security and SD-WAN appliances. It suits small businesses and remote branch offices that need to keep an MX68-series appliance running or hold a spare on site.

The adapter accepts a universal 100-240V AC input at 50/60Hz and delivers 54V DC at 1.85A, matching the 100W DC power rating of the MX68 family. The MX68 range draws between 11W idle and 89W at maximum load depending on the model, so the 100W capacity covers the full operating range. Regional AC power cords are separate parts, with MA-PWR-CORD-US, MA-PWR-CORD-EU, MA-PWR-CORD-UK and MA-PWR-CORD-AU available.

This adapter is for the MX68 family only. The MX67 family uses the MA-PWR-30WAC (30W) adapter instead. No licence is required for the adapter itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Universal 100-240V AC input for use worldwide
- Replacement or spare power adapter for MX68-series appliances
- 100W capacity covers the full MX68 family load range
- Regional AC power cords available separately (MA-PWR-CORD-US, EU, UK, AU)
- External adapter design keeps the appliance chassis compact
- Overcurrent protection built in

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: MA-PWR-100WAC
- Device type: External AC power adapter
- Power capacity: 100W
- Input voltage: 100-240V AC
- Input frequency: 50/60Hz
- Output: 54V DC, 1.85A
- Designed for: Meraki MX68, MX68W, MX68CW
- MX68 family power supply rating: 100W DC
- Power load idle/max, MX68: 11W / 79W
- Power load idle/max, MX68W: 19W / 87W
- Power load idle/max, MX68CW: 19W / 89W
- Dimensions: 21.5 x 11.3 x 4.8 cm
- Weight: 0.58 kg

FAQs

Q: Which Meraki appliances does this adapter power?
A: It is designed for the Meraki MX68, MX68W and MX68CW. It is not for the MX67 family, which uses the MA-PWR-30WAC (30W) adapter.

Q: Does it need a licence?
A: No licence is required for the adapter. The MX68 appliance it powers requires a Meraki Advanced Security, Enterprise or Secure SD-WAN Plus licence.

Q: What input and output power does it provide?
A: It accepts 100-240V AC at 50/60Hz and delivers 54V DC at 1.85A, giving 100W of capacity. The MX68 family draws a maximum of 79-89W depending on model.

Q: Do I need a separate AC power cord?
A: The AC cord is a separate part, available by region as MA-PWR-CORD-US, MA-PWR-CORD-EU, MA-PWR-CORD-UK and MA-PWR-CORD-AU.
