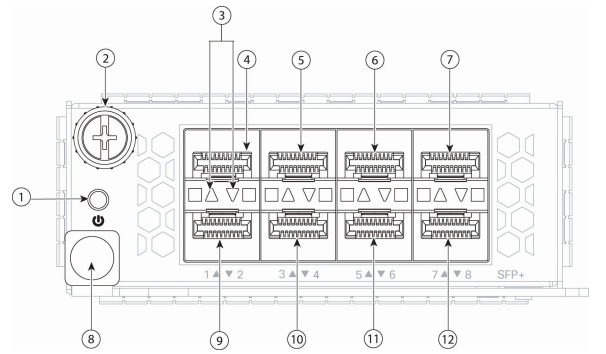

Cisco CSF6K-XNM-8X10G | Secure Firewall 6100 8-Port 1/10G SFP+ Module

CSF6K-XNM-8X10G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Secure Firewall 6100 8x10G SFP+ network module is a field-replaceable I/O module for the Cisco Secure Firewall 6100 Series, covering the 6160 and 6170. It plugs into either of the chassis's two network module slots and adds fibre or copper 1G/10G Ethernet interfaces, which suits data centre and service provider deployments that need extra connectivity.

The module provides 8 SFP/SFP+ ports, each supporting 1 Gbps and 10 Gbps full-duplex operation. It differs from the 8x25G SFP28, 4x40G, 2x100G, 4x200G, 2x400G and hardware-bypass modules in the same family by offering eight 1/10G SFP+ ports. Each port has a link and activity LED, and the module measures 1.41 x 3.66 x 9.94 in (3.58 x 9.3 x 25.25 cm). It draws power from the chassis and has no separate power input. The module itself needs no licence, while feature licensing on the host firewall is separate.

It is supported on Secure Firewall Threat Defense 10.0 or ASA 9.24 and later. Supported optics include GLC-TE, GLC-SX-MMD, GLC-LH-SMD, SFP-10G-SR, SFP-10G-LR and SFP-10G-ER, plus SFP-H10GB direct attach and active optical cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 1G/10G SFP+ connectivity to the Secure Firewall 6100
- Removable I/O module that plugs into the front panel of the chassis
- Supports a broad range of Cisco GLC 1G and SFP-10G optics plus 10G copper and active or passive cables
- Per-port link and activity LEDs
- Hot-swappable with an identical module type
- The 6100 platform supports up to two network modules per chassis, allowing mixed-speed configurations from 1G up to 400G

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: CSF6K-XNM-8X10G
- Port count: 8
- Port type: SFP/SFP+ (1/10 Gbps)
- Port speeds: 1 Gbps and 10 Gbps full duplex per port
- Supported platforms: Secure Firewall 6160 and 6170
- Chassis network module slots: 2 (NM-2 and NM-3)
- Module dimensions (H x W x D): 1.41 x 3.66 x 9.94 in (3.58 x 9.3 x 25.25 cm)
- LEDs: power-on LED and per-port activity LEDs
- Hot swap: supported when replacing with the same module type
- Replacement with a different module type: requires a chassis reboot
- Minimum software: Secure Firewall Threat Defense 10.0 or ASA 9.24
- Power: supplied by the chassis, no separate power input

FAQs

Q: Does this module need a licence?
A: No. The module itself needs no licence. Feature licensing applies to the host Secure Firewall 6100 running Threat Defense or ASA and is separate.

Q: Which firewalls does it work with?
A: It is compatible with the Secure Firewall 6160 and 6170 running Threat Defense 10.0 or later, or ASA 9.24 or later.

Q: Which optics and cables are supported?
A: Supported transceivers include GLC-TE, GLC-SX-MMD, GLC-LH-SMD, GLC-EX-SMD, GLC-ZX-SMD, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-10G-T-X. SFP-H10GB direct attach cables and SFP-10G-AOC active optical cables are also supported.

Q: Can it be hot-swapped?
A: Yes, when replacing it with the same module type. Disable the ports first and re-enable them after the replacement. Swapping to a different module type requires a chassis reboot.

Q: How does it differ from the other Secure Firewall 6100 network modules?
A: This module provides eight 1/10G SFP+ ports. The family also includes 8x25G SFP28, 4x40G, 2x100G, 4x200G, 2x400G and hardware-bypass modules for higher speeds or bypass requirements.
