Cisco CSF6K-XNM-4X40G | Secure Firewall 6100 4-Port 40G QSFP+ Network Module

CSF6K-XNM-4X40G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 4-port 40-Gbps QSFP+ network module from the Cisco Secure Firewall 6100 Series. It installs in the network module slots of the Secure Firewall 6160 and 6170 chassis and adds high-speed 40GbE connectivity for data centre, campus-edge and high-throughput perimeter deployments.

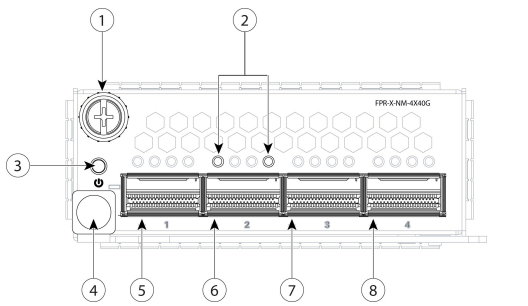

The module provides four full-duplex 40-Gbps QSFP/QSFP+ ports. Each 40G port can be split into four 10G ports using supported breakout cables, giving up to 16 x 10G interfaces per module. Port numbering follows the slot, Ethernet 2/1 to 2/4 in slot 2 or 3/1 to 3/4 in slot 3, and breakout ports are numbered with a third index such as 2/1/1 to 2/4/4. The front panel carries a captive screw, an ejector handle, network activity LEDs and a power-on LED.

The module is powered by the host chassis and needs no licence of its own, as licensing follows the Secure Firewall 6100 chassis and its Threat Defense or ASA software. It requires a supported firmware package and software version, and it can be mixed with other Secure Firewall 6100 network modules in the same chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 40GbE connectivity to Secure Firewall 6100 series chassis
- Breakout cables turn each 40G port into four 10G ports
- Supported on Secure Firewall Threat Defense and Secure ASA software on the 6100 series
- Modular design allows mixing with other 6100 network modules, including 1/10/25G SFP, 100G, 200G, 400G and hardware-bypass modules
- Captive screw and ejector handle for chassis installation and removal
- Per-port LEDs show link state and network activity

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Network module
- Ports: 4 x QSFP/QSFP+
- Port speed: 40 Gbps, full duplex
- Breakout: each 40G port splits into 4 x 10G with supported breakout cables
- Maximum interfaces with breakout: 16 x 10 Gbps
- Host chassis: Secure Firewall 6160 and 6170 (2 RU, 2 network module slots)
- Port naming without breakout: Ethernet 2/1 to 2/4 (slot 2) or 3/1 to 3/4 (slot 3)
- Port naming with breakout: Ethernet 2/1/1 to 2/4/4 (slot 2) or 3/1/1 to 3/4/4 (slot 3)
- Front panel: captive screw, ejector handle, network activity LEDs, power-on LED
- Port LEDs: off = no transceiver, amber = no link or network failure, green = link up, flashing green = network activity
- Power: supplied by the host chassis
- Software: requires a supported firmware package and software version

FAQs

Q: Which chassis does this module fit?
A: It installs in the network module slots of the Cisco Secure Firewall 6160 and 6170. Both chassis are 2 RU and have two network module slots.

Q: Does it need its own licence?
A: No. The module itself needs no licence. Licensing follows the Secure Firewall 6100 chassis and its Threat Defense or ASA software subscriptions.

Q: Can the 40G ports be used as 10G ports?
A: Yes. Each 40-Gbps port can be split into four 10-Gbps ports using supported breakout cables, giving up to 16 x 10G interfaces per module.

Q: What software does it need?
A: The chassis must run a supported firmware package and a Secure Firewall Threat Defense or Secure ASA software version that supports this module. Check the Cisco compatibility guides for the exact versions.

Q: How is power supplied to the module?
A: The module draws power from the host Secure Firewall 6100 chassis and its power supply modules. It has no separate power connection.

Q: What is the procedure when replacing the module?
A: Disable the module before removal. Replacing it with the same product ID only requires re-enabling it, while fitting a different product ID requires a chassis reboot.
