Cisco CSF6K-XNM-8X25G | Secure Firewall 6100 8-Port 1/10/25G SFP28 Module

CSF6K-XNM-8X25G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Secure Firewall 6100 8-port 1/10/25G SFP28 network module adds fibre or DAC connectivity to Cisco Secure Firewall 6160 and 6170 chassis. It is aimed at high-performance data centre and service provider deployments that need extra server, spine or leaf and WAN-facing ports.

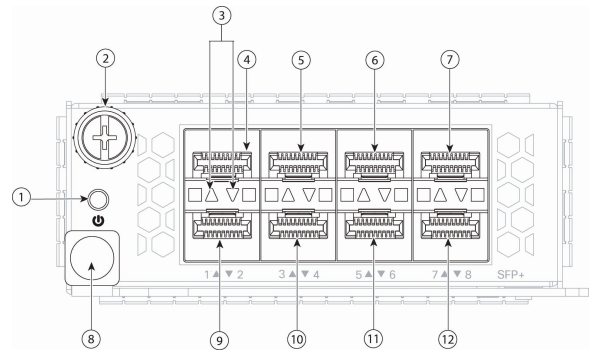

The module provides eight ports, four top and four bottom, each accepting SFP, SFP+ or SFP28 transceivers, so links can migrate from 1G to 10G to 25G without changing hardware. Each chassis has two network module slots, and two of these modules add up to 16 SFP28 ports, for a chassis total of up to 28 1/10/25G ports. Ports are numbered Ethernet2/1 to 2/8 in slot 2 or Ethernet3/1 to 3/8 in slot 3. The module draws power from the chassis backplane and is fitted with a captive screw and ejector handle.

It is supported from Threat Defense 10.0 and ASA 9.24. Genuine optics supported include GLC-TE, GLC-SX-MMD, GLC-LH-SMD, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-10/25G-LR-S, and the SFP-H10GB, SFP-H25 and AOC cable families.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Provides 1/10/25G fibre or DAC connectivity for the Secure Firewall 6100 Series
- Accepts SFP, SFP+ and SFP28 transceivers for migration from 1G to 10G to 25G
- Hot-swappable when replaced with the same module type
- Per-port link and activity LEDs plus a module power LED
- Adds up to 16 SFP28 ports with two modules in one chassis
- Part of a wider 6100 module range, from 1G up to 400G QSFP-DD, plus fail-to-wire modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Module PID: CSF6K-XNM-8X25G (spare: CSF6K-XNM-8X25G=)
- Port count: 8 ports (4 top, 4 bottom)
- Port type and speed: 1/10/25 Gigabit Ethernet SFP28, also accepts SFP and SFP+
- Maximum port speed: 25G
- Port numbering: Ethernet2/1 to 2/8 (slot 2) or Ethernet3/1 to 3/8 (slot 3)
- Host chassis network module slots: 2
- Maximum modules per chassis: 2, adding up to 16 SFP28 ports
- Chassis total: up to 28 1/10/25G ports
- Dimensions (H x W x D): 1.41 x 3.66 x 9.94 in (3.58 x 9.3 x 25.25 cm)
- Hot swapping: supported when replacing with the same module type
- Replacing with a different module type: requires a chassis reboot
- Front panel indicators: power-on LED and per-port activity LEDs
- Mechanical: captive screw and ejector handle
- Supported platforms: Secure Firewall 6160 and 6170
- First supported release: Threat Defense 10.0 / ASA 9.24
- Power: supplied from the chassis backplane

FAQs

Q: Does this module need its own licence?
A: No licence is required for the module itself. The host 6100 Series firewall runs Threat Defense or ASA software and is licensed separately.

Q: Which firewalls and software releases support it?
A: It is supported in Secure Firewall 6160 and 6170 chassis, from Threat Defense 10.0 or ASA 9.24.

Q: Which optics and cables work with it?
A: Supported genuine parts include GLC-TE, GLC-SX-MMD, GLC-LH-SMD, GLC-EX-SMD, GLC-ZX-SMD, SFP-10G-SR/-S, SFP-10G-LR/-S, SFP-10G-ER/-S, SFP-10G-T-X, SFP-H10GB-CUxM, SFP-H10GB-ACUxM, SFP-10G-AOCxM, SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-10/25G-LR-S, SFP-H25-CUxM and SFP-25G-AOCxM.

Q: Can it be hot-swapped?
A: Yes, when it is replaced with the same module type. Disable the port before removal and re-enable it afterward. Swapping to a different module type requires a chassis reboot.

Q: Does it support 50G?
A: No. The maximum speed on this module is 25G. 50G is only supported on the 12 fixed SFP56 ports on the chassis.

Q: How many can be installed in one chassis?
A: The 6160 and 6170 each have two network module slots, so up to two of these modules can be fitted, adding up to 16 SFP28 ports.
