Meraki

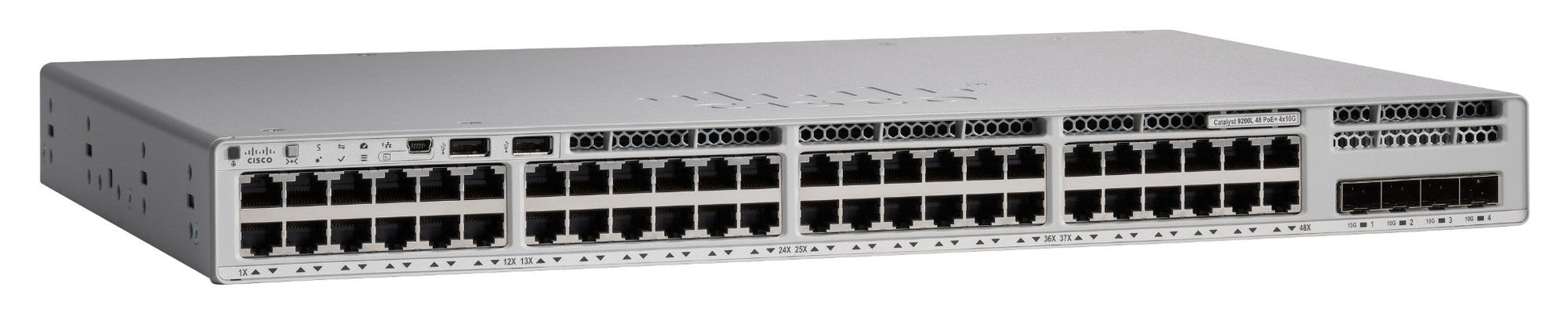

Meraki C9200L-48PXG-4X-M | Catalyst 9200L-M 48-Port PoE+ Switch, 12x mGig, 740W

C9200L-48PXG-4X-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L-M is a 48-port PoE+ access switch from the Catalyst 9200L family, built for Meraki dashboard cloud management. It suits branch-office and campus access layers where IP phones, cameras and Wi-Fi 6/6E access points need power and connectivity from a single switch, with the multigigabit ports aimed at high-speed access points.

The front panel provides 12 multigigabit ports (up to 10G) and 36 x 1G copper ports, all with full PoE+ at up to 30W per port. Four fixed 1/10G SFP+ uplinks carry traffic upstream. The 1000W AC power supply delivers 740W of PoE budget, and a second supply raises the PoE budget to 1440W. Switching capacity is 392 Gbps, or 472 Gbps when stacked, with a forwarding rate of 291.66 Mpps. StackWise-80 stacking supports up to 8 members at 80 Gbps.

This switch works with the PWR-C5-1KWAC and PWR-C5-715WDC power supplies and stacks with other C9200L models using the C9200L-STACK-KIT. It is not compatible with stacking alongside modular C9200 or other Catalyst families.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ (IEEE 802.3at) on all 48 ports, up to 30W per port
- Multigigabit ports (IEEE 802.3bz / 802.3an) suited to Wi-Fi 6/6E access points
- Perpetual PoE and Fast PoE
- MACsec AES-128 encryption (IEEE 802.1AE) with policy-based segmentation
- Cisco Trust Anchor technologies including image signing and Secure Boot
- Cloud management through the Meraki dashboard
- StackWise-80 backplane stacking
- Field-replaceable redundant power supply and redundant fixed fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Downlinks: 48 x PoE+ ports, 12 x mGig (up to 10G) and 36 x 1G
- Uplinks: 4 x 1/10G fixed SFP+
- Default power supply: PWR-C5-1KWAC (1000W AC)
- PoE budget: 740W with one power supply, 1440W with a second
- Switching capacity: 392 Gbps (472 Gbps with stacking)
- Forwarding rate: 291.66 Mpps (351 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Fans: fixed redundant
- DRAM: 2 GB
- Flash: 4 GB
- Packet buffer: 12 MB
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.71 kg
- MTBF: 337,360 hours
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% noncondensing

FAQs

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Does it need a licence?
A: As a Meraki-managed switch, it requires a Meraki cloud-management licence to operate on the dashboard. Confirm the licence tier with Meraki.

Q: What PoE budget does it provide?
A: The default PWR-C5-1KWAC power supply provides 740W of PoE budget. Adding a second identical supply raises this to 1440W.

Q: What can I stack it with?
A: It stacks only with other C9200L models using the C9200L-STACK-KIT, up to 8 members. It does not stack with modular C9200 or other Catalyst families.

Q: Which power supplies does it support?
A: It supports the PWR-C5-1KWAC AC supply and the PWR-C5-715WDC DC supply.
