Cisco

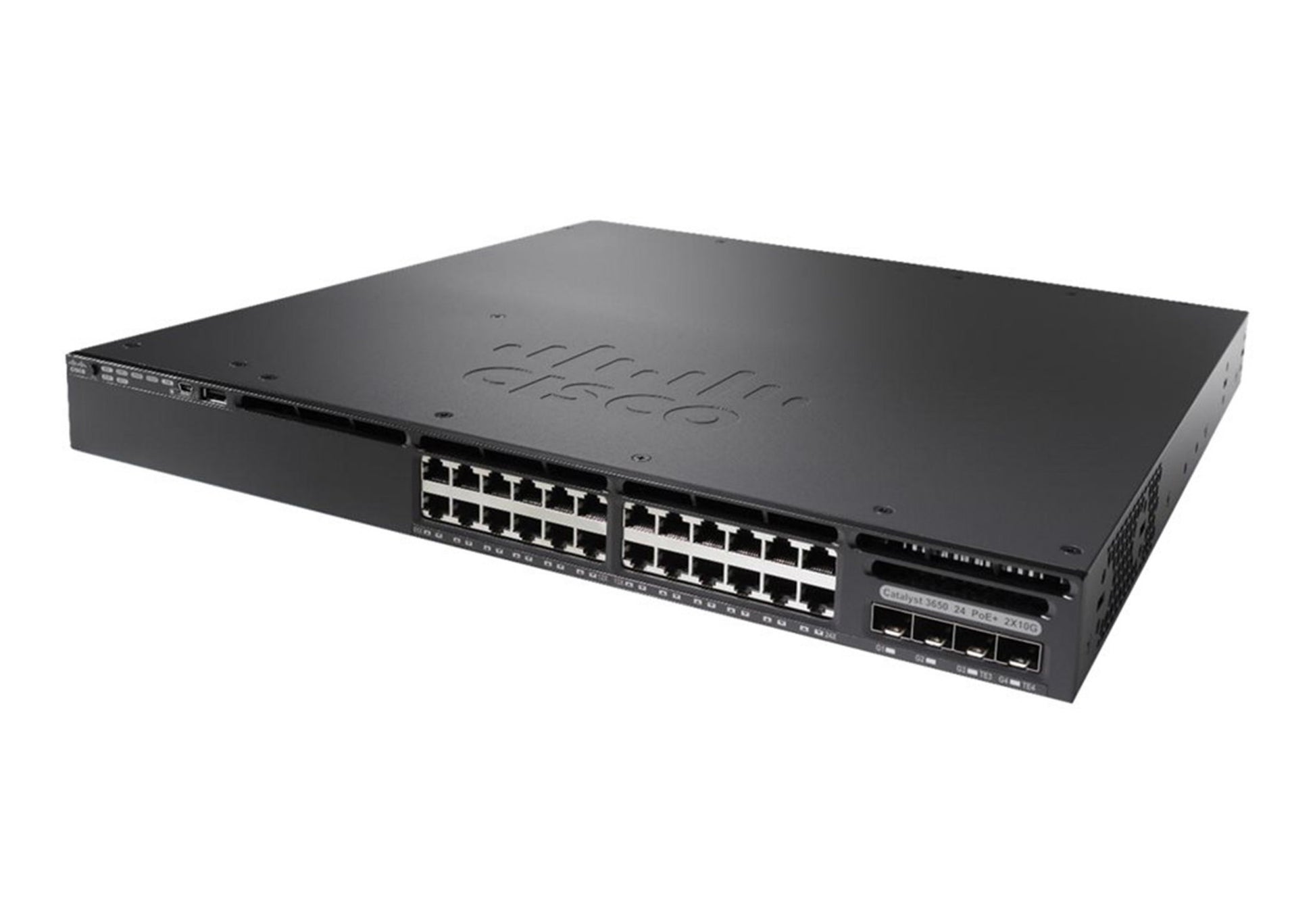

Cisco WS-C3650-24PD-S | Catalyst 3650 24-Port PoE+ Switch, 2x 10G SFP+, IP Base

WS-C3650-24PD-S

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 24-port PoE+ switch is a stackable enterprise access-layer switch built for campus and branch networks that need converged wired and wireless access. It suits deployments powering IP phones, access points and other 802.3at devices, with room to grow through stacking.

This model provides 24 x 10/100/1000 PoE+ ports with 2 x 10G SFP+ and 2 x 1G SFP uplinks. It is supplied with a 640 W AC power supply that delivers 390 W of PoE budget, and the IP Base feature set is included through the -S suffix. Switching capacity is 92 Gbps with a forwarding rate of 68.45 Mpps. The switch includes integrated wireless controller capability, supporting up to 25 access points and 1,000 wireless clients per switch or stack, and mobility controller mode is available with IP Base.

An optional StackWise-160 stack module allows stacking at 160 Gbps. Uplinks accept 10G SFP+ and 1G SFP optics, and the 24-port chassis uses PWR-C2 series power supplies. Dual redundant modular power supplies and field-replaceable fans support resilient operation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco StackWise-160 stacking with 160 Gbps stack bandwidth
- Cisco Unified Access Data Plane (UADP) ASIC for wired and wireless convergence
- Integrated wireless controller functionality, with mobility controller mode available on IP Base
- Full IEEE 802.3af PoE and 802.3at PoE+ support, up to 30 W per port
- Dual redundant, field-replaceable modular power supplies and three field-replaceable fans
- AC or DC (640 W) power supply options
- Uniform wired and wireless policy enforcement with application visibility and Flexible NetFlow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WS-C3650-24PD-S
- Downlink ports: 24 x 10/100/1000 PoE+
- Fixed uplinks: 2 x 10G SFP+ and 2 x 1G SFP
- Feature set: IP Base
- Default power supply: PWR-C2-640WAC (640 W AC)
- Available PoE power: 390 W with the default power supply
- PoE standards: IEEE 802.3af and 802.3at, up to 30 W per port
- Switching capacity: 92 Gbps
- Forwarding rate: 68.45 Mpps
- Stacking bandwidth: 160 Gbps (StackWise-160)
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,094
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: 25 access points, 1,000 clients and 64 WLANs per switch or stack
- Dimensions (H x W x D): 4.4 x 44.5 x 44.8 cm
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96% non-condensing
- Storage temperature: -40 to 70 C
- MTBF: 528,280 hours

FAQs

Q: Does this switch need an additional licence?
A: No. The IP Base feature set is included with the -S SKU suffix. IP Base is also required if you want to run mobility controller mode. IP Services is an optional higher tier.

Q: How much PoE power does it provide?
A: With the default 640 W AC power supply the switch provides 390 W of PoE budget. Full 30 W PoE+ on all 24 ports needs one PWR-C2-1025WAC or two PWR-C2-640WAC supplies.

Q: Can I stack this switch?
A: Yes. The optional C3650-STACK-KIT stack module enables StackWise-160 stacking at 160 Gbps.

Q: Which optics do the uplinks accept?
A: The uplinks accept 10G SFP+ and 1G SFP optics. This model has 2 x 10G SFP+ and 2 x 1G SFP uplink ports.

Q: Which power supplies are compatible?
A: The 24-port chassis uses PWR-C2 series power supplies, including the 640 W AC and 640 W DC options. It does not use the multigigabit PWR-C1 series.

Q: How does this model differ from other 3650 24-port variants?
A: WS-C3650-24PD-S has 24 PoE+ ports, 2 x 10G SFP+ uplinks, a 640 W power supply with 390 W of PoE and the IP Base feature set.
