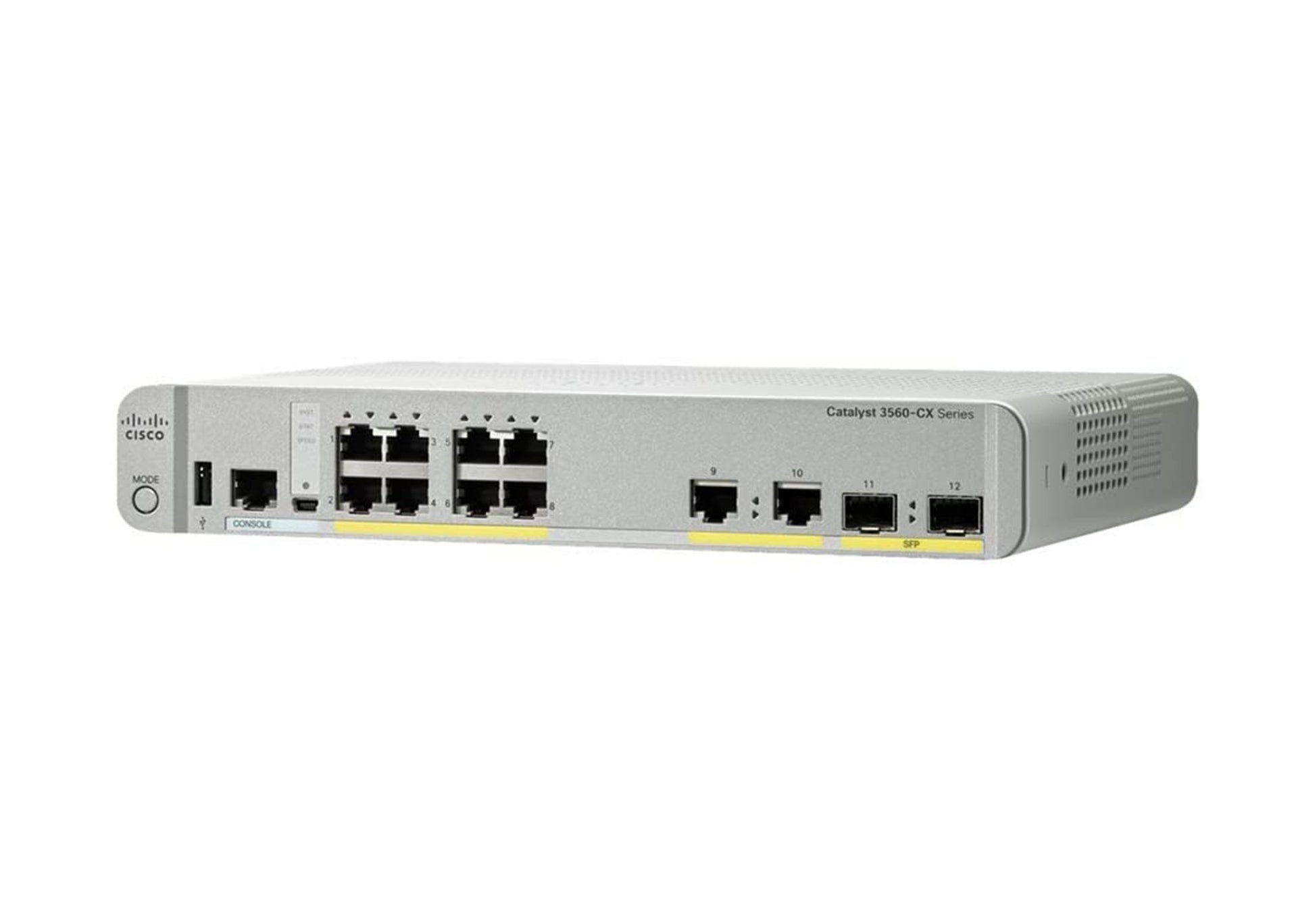

• Cisco WS-C3560CX-8TC-S switch with 8x1G ports and gray body
1 1

Cisco

Cisco WS-C3560CX-8TC-S | Catalyst 3560-CX 8-Port Gigabit Switch, IP Base

WS-C3560CX-8TC-S

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3560-CX is a fanless, compact managed Layer 3 switch built for deployments outside the wiring closet, such as open workspaces, conference rooms and desks. This non-PoE model provides data connectivity for PCs, IP phones and other endpoints over a single copper or fibre uplink.

It has eight 10/100/1000 Gigabit Ethernet downlink ports and four 1G uplinks, made up of two copper ports and two SFP ports. Forwarding bandwidth is 16 Gbps and switching bandwidth is 32 Gbps with 1G uplinks, with a forwarding rate of 17.9 mpps on 64-byte packets. It carries 128 MB of flash and 512 MB of DRAM. This SKU ships with the IP Base feature set, which can be upgraded to IP Services with the Right-To-Use licence. Power draw is 18.8 W at full throughput from an internal 100-240 VAC power supply.

The SFP uplinks accept Cisco SFP modules listed in the Cisco Transceiver Compatibility matrix. Mounting options include wall, under desk, rack and DIN rail using the Catalyst 3560-CX compact accessories, and management is supported through Cisco Prime Infrastructure, Cisco Network Assistant and Cisco DNA Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, silent design suited to open workspaces
- Flexible mounting: wall, under desk, rack or DIN rail
- Layer 3 routed access with IP Base, upgradable to IP Services for OSPF, BGP, EIGRP, PBR, multicast routing and VRF Lite
- Layer 2 threat defence: DHCP snooping, Dynamic ARP Inspection, IP Source Guard, Private VLAN and 802.1X with NEAT
- Cisco TrustSec and MACsec hardware support, plus Secure Boot
- Network Plug-n-Play, Smart Install and Auto Smartports for simpler deployment
- QoS with up to eight egress queues per port and NetFlow Lite visibility
- IEEE 802.3az Energy-Efficient Ethernet and Switch Hibernate Mode

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 8 x 10/100/1000 Gigabit Ethernet
- PoE output ports: None (non-PoE model)
- Uplinks: 2 x 1G copper plus 2 x 1G SFP
- Default software: IP Base (IP Services with RTU licence)
- Forwarding bandwidth: 16 Gbps (with 1G uplinks)
- Switching bandwidth: 32 Gbps full-duplex (with 1G uplinks)
- Forwarding rate: 17.9 mpps (64-byte packets)
- Flash memory: 128 MB
- DRAM: 512 MB
- Max VLANs: 1023
- VLAN IDs: 4000
- MTU: up to 9000 bytes
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3 cm)
- Weight: 3.8 lb (1.72 kg)
- Operating temperature: -5 to +45 C
- Storage temperature: -25 to +70 C
- Operating and storage humidity: 5% to 95% non-condensing
- MTBF: 756,260 hours
- Power consumption: 18.8 W at 100% throughput, 14.8 W at 0% with EEE
- AC input: 100-240 VAC, 0.5-0.2 A
- Power rating: 30 W, 170.6 BTU

FAQs

Q: Does this switch provide PoE?
A: No. This is a non-PoE model, so it provides data connectivity only. Powered devices need a separate power source or a PoE-capable switch.

Q: Which software feature set does this SKU run?
A: It runs the IP Base feature set. IP Services can be enabled with the Right-To-Use licence, L-C3560CX-RTU= for electronic delivery or C3560CX-RTU= for paper.

Q: What can I fit in the SFP uplink ports?
A: The two 1G SFP uplinks support Cisco SFP modules listed in the Cisco Transceiver Compatibility matrix, for example the GLC-SX-MMD and GLC-LH-SMD.

Q: How can this switch be mounted?
A: It can be mounted on a wall, under a desk, in a rack or on a DIN rail. Accessories include CMPCT-DIN-MNT= for DIN rail, RCKMNT-19-CMPCT= for 19-inch racks and CMPCT-MGNT-TRAY= for the magnet and tray.

Q: How does it differ from other 3560-CX SKUs?
A: This SKU has eight non-PoE Gigabit ports, two 1G SFP plus two 1G copper uplinks, and IP Base software. Sibling SKUs differ in PoE capability, port count and software tier.
