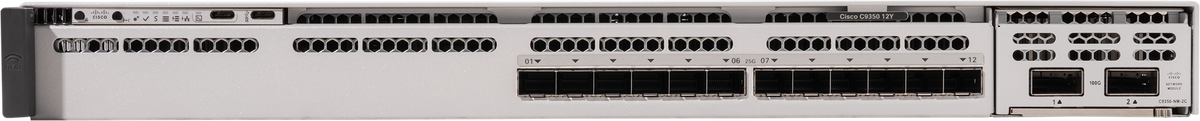

• Gray metal cisco c9350 12-port 25g sfp28 switch back side with multiple ports and ventilation slots
1 1

Cisco

Cisco C9350-12Y | C9350 12-Port 25G SFP28 Switch, 500W AC PSU

C9350-12Y

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C9350-12Y is a fixed, stackable fibre access and aggregation switch from the Cisco C9350 Series. It is built for compact server rooms, small aggregation layers and branch deployments that need high-speed 25G connectivity to servers, storage or wireless controllers.

The switch provides 12 multirate 1G/10G/25G SFP28 downlink ports on a single Cisco Silicon One A100/L ASIC. Bandwidth is rated at 1000G (2600G with stacking) with a forwarding rate of 744 Mpps (1934.40 Mpps with stacking). It has no PoE and ships with the PWR-C2-500WAC 500W AC power supply as the default. It has three power supply bays and three fan-tray bays with N+1 fan redundancy, in a 1RU chassis. It runs Cisco IOS XE and needs Cisco unified licensing through Smart Licensing, and stack members must share the same licence level.

An optional modular uplink network module adds up to 200G of uplink bandwidth. Supported modules are the C9350-NM-2C, C9350-NM-8Y and C9350-NM-8M. Stacking uses StackWise-1.6T cables, with up to 8 members and 1.6 Tbps of stack bandwidth.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Powered by Cisco Silicon One A100/L ASIC with x86-based control plane
- StackWise-1.6T stacking of up to eight C9350 switches with up to 1.6 Tbps stack bandwidth
- StackPower+ 55V power sharing across the stack
- Cisco IOS XE with NETCONF, RESTCONF, YANG programmability, streaming telemetry and on-box app hosting
- MACsec line-rate encryption, VXLAN and Cisco TrustSec segmentation
- Secure Boot, image signing and Cisco Trust Anchor module
- Hot-swappable redundant power supplies and N+1 redundant fan modules
- Hot patching and Extended Fast Software Upgrade (xFSU)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Downlink ports: 12 x 1G/10G/25G SFP28
- ASIC: 1 x Cisco Silicon One A100/L
- Bandwidth specification: 1000G
- Switching capacity with stacking: 2600G
- Forwarding rate: 744 Mpps
- Forwarding rate with stacking: 1934.40 Mpps
- Uplink modules supported (up to 200G): C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M
- Stacking: StackWise-1.6T, up to 8 members, 1.6 Tbps stack bandwidth
- Default power supply: PWR-C2-500WAC (500W AC)
- PoE: No PoE
- Power supply bays: 3 (minimum 1 installed)
- Fan-tray bays: 3 (N+1 redundancy)
- Dimensions (H x W x D), chassis only: 4.4 x 44.5 x 38.3 cm
- Dimensions (H x W x D), with 500W or 850W PSU: 4.4 x 44.5 x 42 cm
- Weight with default power supply: 6.6 kg
- MTBF: 357,470 hours
- Operating temperature: -5 to 45 C up to 1.83 km; -5 to 40 C up to 3.05 km
- Storage temperature: -40 to 75 C
- Relative humidity: 10% to 95%, non-condensing
- DRAM: 16 GB
- Flash: 18 GB
- App-hosting AppGig ports: 2 x 1/10G
- MAC addresses: up to 64,000
- Jumbo frames: 9216 bytes
- Minimum software: Cisco IOS XE Release 26.2.1

FAQs

Q: What licensing does the C9350-12Y use?
A: It uses Cisco unified licensing through Cisco Networking Subscription or an Enterprise Agreement, managed via Cisco Smart Accounts and Smart Licensing. All members of a stack must use the same licence level.

Q: Does the C9350-12Y support PoE?
A: No. This model has no PoE capability. It uses the PWR-C2-500WAC 500W AC power supply by default and supports up to three hot-swappable power supplies.

Q: Which uplink modules work with this switch?
A: The C9350-NM-2C (2 x 100G/40G QSFP), C9350-NM-8Y (8 x 25G/10G/1G or 4 x 50G) and C9350-NM-8M (8 x Multigigabit RJ-45) modules are supported, for up to 200G of uplink bandwidth. The uplink module is purchased separately.

Q: Can it be stacked with Catalyst 9300 switches?
A: No. It stacks with other C9350 switches using StackWise-1.6T cables (STACK-T1A-50CM=, STACK-T1A-1M=, STACK-T1A-3M=) and is not compatible with Catalyst 9300 stacking cables.

Q: What software version does it require?
A: It requires Cisco IOS XE Release 26.2.1 or later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
