Meraki

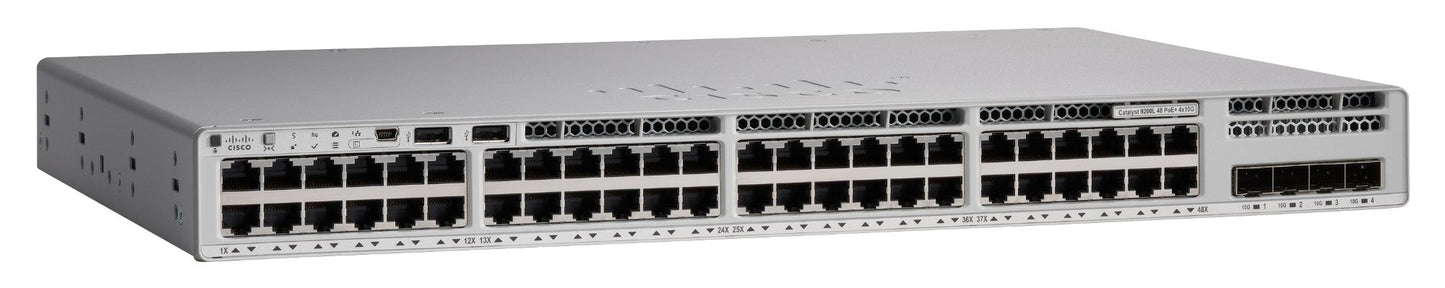

Meraki C9200L-48P-4X-M | Catalyst 9200L-M 48-Port PoE+ Switch, 740W, 4x 10G SFP+

C9200L-48P-4X-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L-M is a fixed-uplink access switch for branch offices and campus edges that want Catalyst hardware with cloud-managed operation through the Meraki dashboard. It suits small to midsize networks powering IP phones, Wi-Fi access points and IoT endpoints over PoE+.

This model provides 48 x 10/100/1000 full PoE+ ports and four fixed 1/10G SFP+ uplinks. With the default PWR-C5-1KWAC supply the PoE budget is 740W, rising to 1440W with a second 1KWAC supply installed. Switching capacity is 176 Gbps (256 Gbps when stacked) with a forwarding rate of 130.95 Mpps (190 Mpps stacked). It offers 16,000 MAC addresses, 4094 VLAN IDs, 9198-byte jumbo frames, 2 GB DRAM and 4 GB flash. Fixed redundant fans and a redundant power supply bay support resilient operation.

StackWise-80 stacking with the C9200L-STACK-KIT joins up to 8 members, limited to other C9200L models at the same licence level. Spare supplies include PWR-C5-1KWAC and PWR-C5-715WDC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ up to 30W per port with Perpetual PoE and Fast PoE
- Cloud management through the Meraki dashboard, with a choice of cloud or device as configuration source and a Cloud CLI terminal
- AES-128 MACsec encryption
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- Limited Cisco SD-Access support with 1 virtual network
- Open APIs (NETCONF/RESTCONF, YANG) and streaming telemetry in IOS XE
- Cisco Trust Anchor technologies including secure boot and image signing
- Blue beacon LEDs front and back

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Downlink ports: 48 x 10/100/1000 full PoE+
- Uplink ports: 4 x 1/10G fixed SFP+
- Default power supply: PWR-C5-1KWAC
- PoE budget (single PWR-C5-1KWAC): 740W
- PoE budget (two PWR-C5-1KWAC): 1440W
- PoE budget (single PWR-C5-715WDC): 485W
- PoE budget (two PWR-C5-715WDC): 970W
- Fans: Fixed, redundant
- Switching capacity: 176 Gbps (256 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (190 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Packet buffer: 6 MB
- DRAM / Flash: 2 GB / 4 GB
- Dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm
- Weight: 4.80 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: What PoE budget does this switch provide?
A: With the default PWR-C5-1KWAC supply it provides 740W of PoE+. Adding a second PWR-C5-1KWAC raises the budget to 1440W, or the second supply can be used for redundancy.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Can it be stacked?
A: Yes. StackWise-80 stacking uses the C9200L-STACK-KIT with STACK-T4 cables and supports up to 8 members. It stacks only with other C9200L models at the same licence level, not with C9200 modular switches.

Q: Which power supplies does it support?
A: The default is PWR-C5-1KWAC (1000W AC). PWR-C5-715WDC is also supported, giving 485W of PoE, or 970W with two.

Q: What mounting kits are available?
A: The compatible mounting options are ACC-KIT-T1=, RACK-KIT-T1=, 4PT-KIT-T2= and REC-KIT-T1=.
