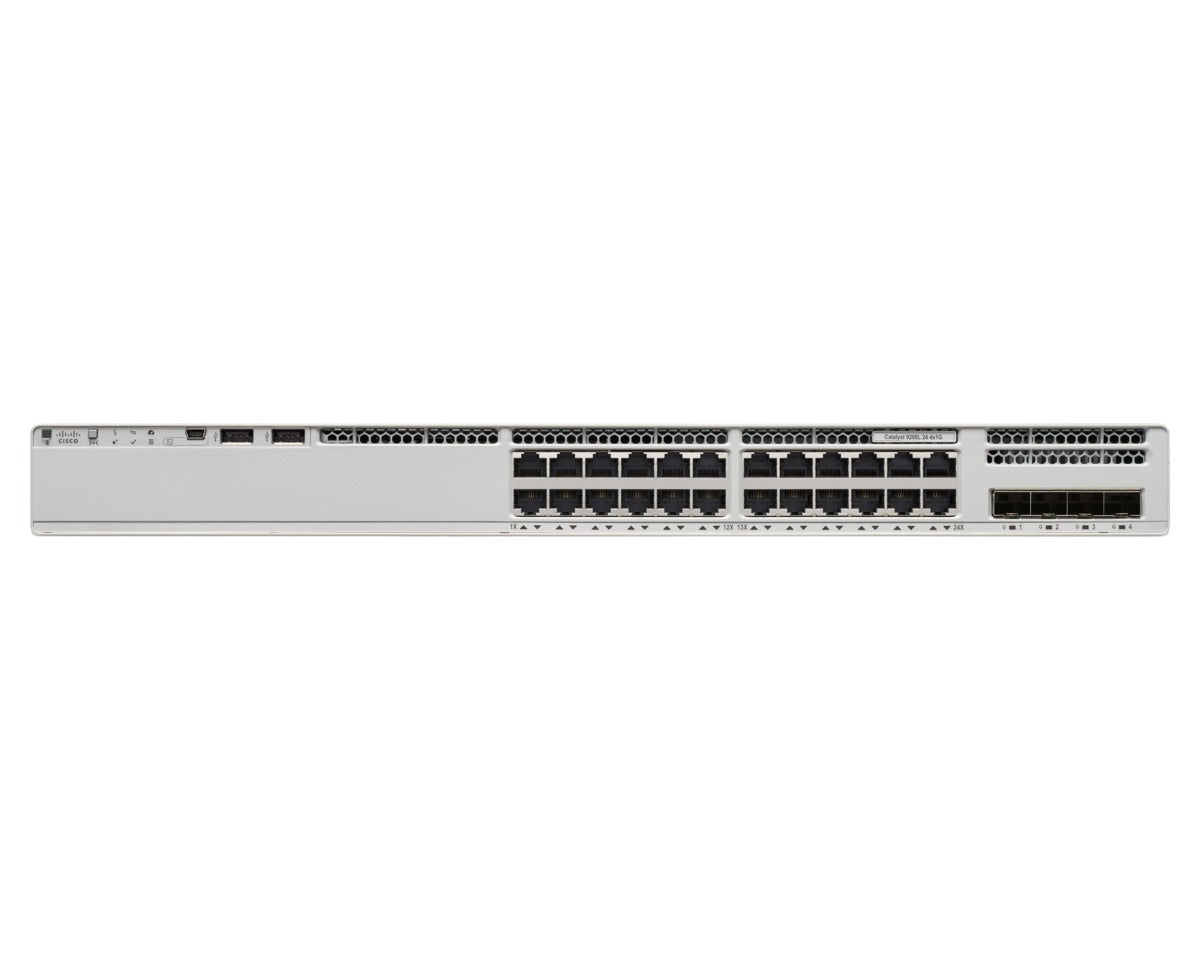

• Meraki C9200L-24P-4X-M silver Catalyst 9500 switch with PoE ports
1 1

Meraki

Meraki C9200L-24P-4X-M | Catalyst 9200L-M 24-Port Gigabit PoE+ Switch, 370W, 4x 10G SFP+

C9200L-24P-4X-M

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki C9200L-24P-4X-M is a cloud-managed enterprise access switch combining Cisco IOS XE with the simplicity of the Meraki dashboard. With 24 Gigabit Ethernet PoE+ ports delivering 370W of power, four 10G SFP+ uplinks, and 128 Gbps switching capacity, this switch is ideal for branch offices and campus deployments requiring high-speed connectivity for Wi-Fi 6 access points, IP cameras, and VoIP devices. Optional StackWise-80 stacking supports up to 5 switches for scalable growth.

Features

Meraki cloud management with zero-touch provisioning and centralized visibility
- Cisco IOS XE operating system with programmable automation
- Layer 2 switching: VLANs, STP/RSTP/MSTP, 802.1Q trunking, link aggregation (802.3ad LACP)
- Layer 3 static routing and dynamic routing protocols (dependent on license tier)
- Adaptive Policy for scalable traffic segmentation using Security Groups (Advanced license)
- IEEE 802.1X authentication with RADIUS, MAB, multi-host and multi-domain support
- MACsec-128 encryption for secure link-level communications
- DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Port security with sticky MAC and MAC allow listing
- IPv4 and IPv6 ACLs for granular access control
- Energy Efficient Ethernet (IEEE 802.3az) and ENERGY STAR certified
- Perpetual PoE to maintain power to devices during switch reboot
- Netflow support for traffic monitoring and analytics
- Virtual stacking for unified management of distributed switches
- Dual redundant fans (fixed) and field-replaceable power supplies for high availability
- Blue beacon LEDs (front and back) for easy physical identification

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24x 10/100/1000 Mbps PoE+ ports (IEEE 802.3af/at)
- PoE+ power budget: 370W (expandable to 740W with optional secondary PSU)
- 4x 10 Gigabit SFP+ fixed uplink ports
- Switching capacity: 128 Gbps
- Forwarding rate: 190.4 Mpps
- MAC address table: 16,000 entries
- DRAM: 2 GB
- Flash memory: 4 GB
- Supports up to 512 VLANs
- Stacking bandwidth: 80 Gbps with optional C9200L-STAK-KIT-M (supports up to 5 members)
- Default power supply: PWR-C5-600WAC (600W)
- Dual field-replaceable power supplies and redundant fixed fans
- Dimensions (H x W x D): 1.73 x 17.5 x 15.4 in (4.4 x 44.5 x 39.1 cm)
- Weight: 12 lb (5.44 kg)
- 1U rack-mountable
- Operating temperature: -5°C to 45°C
- Management: Meraki cloud dashboard (Cisco IOS XE)

FAQs

Q: What licensing is required for the C9200L-24P-4X-M?
A: This switch requires a Meraki Catalyst 9200L-M license on a per-device, per-year basis. Two license tiers are available: Enterprise and Advanced. Licenses are available in 1, 3, and 5 year terms. The Advanced tier unlocks features like Adaptive Policy and Netflow v10.

Q: Does the C9200L-24P-4X-M include stacking ports by default?
A: No, stacking ports are not included by default. You must order the C9200L-STAK-KIT-M for each switch you plan to stack. The kit includes two stacking adapters and one 50cm stacking cable. Stacks support up to 5 members with 80 Gbps of bandwidth.

Q: Can this switch be converted to on-premises management?
A: Yes, the C9200L-24P-4X-M can be migrated from Meraki cloud management to on-premises management using Cisco Catalyst Center or CLI at any point during its lifecycle, providing deployment flexibility.

Q: What is the maximum PoE budget available on this switch?
A: The default PoE budget is 370W with the included PWR-C5-600WAC power supply. With an optional secondary power supply, the total PoE budget can be increased to 740W, supporting more powered devices simultaneously.

Q: What deployment scenarios is the C9200L-24P-4X-M best suited for?
A: This switch is ideal for enterprise branch offices, campus access layer deployments, and small to medium-sized networks requiring cloud management, high-speed uplinks for Wi-Fi 6 access points, IP surveillance cameras, VoIP phones, and other PoE-powered devices.
