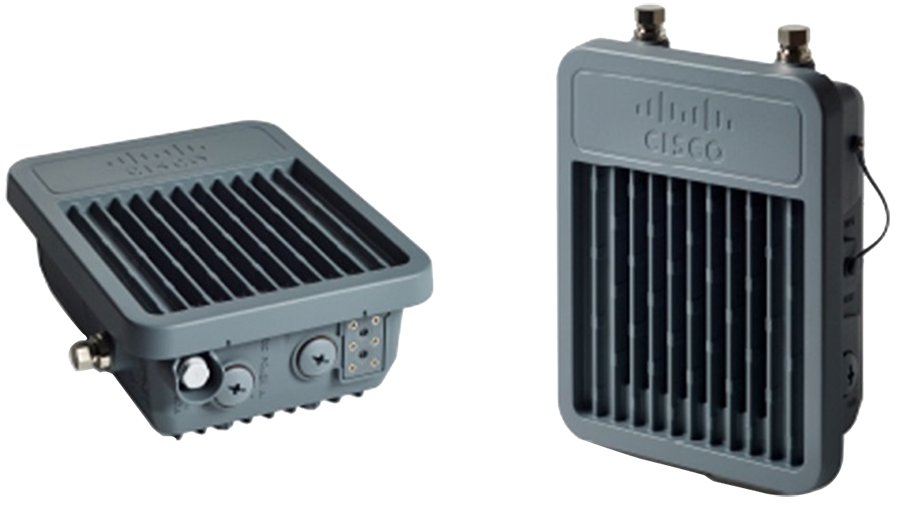

• Cisco IXM-LPWA-800-16-K9 LoRaWAN module with outdoor Wi-Fi access point
1 1

Cisco

Cisco IXM-LPWA-800-16-K9 | IXM LoRaWAN Gateway, 863-870 MHz, 16-Channel, IP67

IXM-LPWA-800-16-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IXM LoRaWAN Gateway is an outdoor-rated macro gateway built for large-scale IoT deployments such as smart cities, utilities, metering, asset tracking and environmental monitoring. It runs standalone or as the radio interface for Cisco industrial routers, and it mounts on poles, rooftops, towers and walls.

This variant covers the 863-870 MHz ISM band used in Europe, the Middle East, Africa and India, with 16 uplink channels from two LoRa baseband subsystems and receiver sensitivity up to -139.5 dBm. The die-cast aluminium enclosure is IP67 rated and fan-less, with an operating range of -40 to 70 C. It has a single 10/100 Mbps RJ-45 port with 802.3at PoE+ powered device support, or it can run from 48 VDC, drawing 30 W maximum. Two N-type connectors take the RF antennas and a TNC connector takes the GPS antenna.

Integrated GNSS provides time synchronisation and geolocation support. The gateway is ordered with Cisco gateway software and managed through Cisco IoT Field Network Director, while Common Packet Forwarder licensing allows use with third-party network servers using the Semtech Basic Station protocol. It works with Cisco AIR-ACC1530-PMK1 pole and wall mounting, ANT-LPWA-DB-O-N-5 or ANT-WPAN-OD-OUT-N RF antennas and the ANT-GPS-OUT-TNC GPS antenna.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports LoRaWAN Class A, B and C devices with adaptive data rate and channel diversity
- Up to 16 concurrent uplink channels via two LoRa baseband subsystems
- Integrated GPS/GNSS time sync and TDOA/RSSI-based geolocation hardware support
- Deployable standalone or as the radio interface for Cisco IR807, IR809, IR829, CGR-1120 and CGR-1240
- Zero-touch provisioning and management via Cisco IoT Field Network Director
- Embedded Linux Container for an isolated third-party packet forwarder
- Two IPsec tunnels in Active/Active or Active/Standby mode, with PKI, SCEP and secure boot
- Cisco ACT2 802.1ar secure identity and omnidirectional or tri-sector deployment options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency band: 863-870 MHz ISM (EU, Middle East, Africa, India LoRaWAN regional profile)
- Uplink channels: 16 (two LoRa baseband subsystems)
- LoRaWAN classes: A, B and C
- Receiver sensitivity: up to -139.5 dBm
- Output power: up to +27 dBm ERP on 869.525 MHz high-power channel, +14 dBm on other channels
- Ethernet: 1x 10/100 Mbps Fast Ethernet (RJ-45) with 802.3at PoE+ PD
- Power input: PoE+ (802.3at) or 48 VDC, 0.7 A
- Power consumption: 30 W maximum
- RF antenna connectors: 2x N-type
- GPS antenna connector: 1x TNC
- Console: 1x RJ-45
- USB: 1x USB 2.0 Type A
- CPU: 1.33 GHz single core
- Memory: 1 GB DDR4 RAM
- Flash memory: 4 GB
- Operating system: Linux 4.4.52
- Built-in GNSS: GPS L1C/A, QZSS L1C/A, SBAS L1C/A, GLONASS L1OF, time pulse accuracy under 20 ns
- Enclosure: die-cast aluminium, IP67, passive fan-less cooling
- Dimensions (H x W x D): 281 x 206 x 100 mm
- Weight: 3.6 kg
- Operating temperature: -40 to 70 C without solar load
- Operating humidity: 5 to 95%, non-condensing
- Mounting: wall and pole mount
- Radio compliance: EN 300 220-2, EN 300 440-2, AS/NZS 4268, FCC Part 15.247, RSS-247, ARIB STD-T108, NBTC

FAQs

Q: Does this gateway need software or licensing?
A: It is ordered with Cisco gateway software (SW-IXM-LPWA-K9, one per base unit). Managing it with Cisco IoT Field Network Director uses the L-IOTFND-LORAWAN licence. Use with third-party network servers requires a Common Packet Forwarder licence, sold as a 1, 3 or 5-year subscription.

Q: How is the gateway powered?
A: It accepts 802.3at PoE+ from an external PoE+ injector or switch, or 48 VDC at 0.7 A. Maximum power consumption is 30 W.

Q: Which antennas and mounting hardware does it work with?
A: Compatible RF antennas are ANT-LPWA-DB-O-N-5 (5 dBi outdoor omni) and ANT-WPAN-OD-OUT-N (1.5 dBi omni), with ANT-GPS-OUT-TNC for GPS. Mounting uses the AIR-ACC1530-PMK1 pole and wall kit, and the ACC-LPWA-HDWR-KIT provides a cable gland and grounding lug.

Q: Can it work with Cisco industrial routers?
A: Yes. It can run standalone or act as a radio interface for Cisco IR807, IR809, IR829, CGR-1120 and CGR-1240 routers.

Q: Which regions is the 863-870 MHz variant intended for?
A: It uses the 863-870 MHz LoRaWAN regional profile for Europe, the Middle East, Africa and India. Other regions use different frequency variants.
